5.2.3 Applying Power to the IP Multiline Telephone
IP Multiline Telephone (IP4WW-24TIXH-C1) supports two different power sources for the Telephone.
• AC-2R UNIT/AC-L UNIT
Plug the Optional AC-[ ] AC adapter input jack in the telephone base unit, and plug the 2-prong wall
plug of the AC adapter in AC outlet.
• PoE(IEEE802.3af)
PoE (Power Over Ethernet) is a LAN technology that allows standard 10Base-T/100Base-TX data
cables to pass electrical current from a power source to a requesting end device.
5.3 Installing the DSS Console
The 60D DSS-B Console can be installed on any digital extension port of each 084M-B1/080E-B1
card directly. The pair extension for the DSS Console is assigned using system programming.
For the settings, refer to the SL1100 Features & Specifications Manual.
5.3.1 DSS Console Leg Adjustment
The DSS Console provides the leg for angling the console to best suit each user. The leg can be set
for two different heights (Low/High).

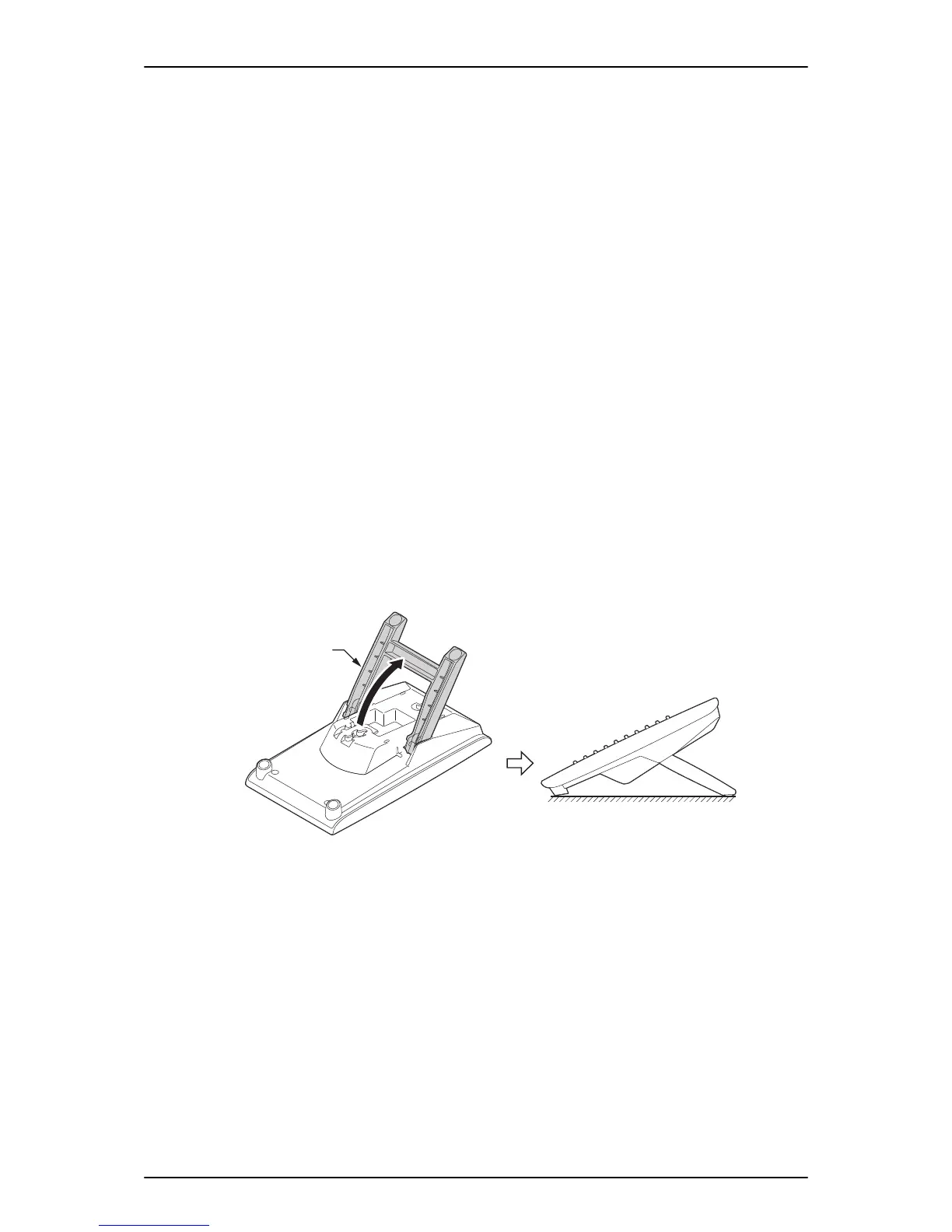

5.3.1.1 Low Position Setting
1. Turn DSS Console over (button side down).
2. Adjust the legs to desired height.
< Low position >
Leg
Figure 2-101 Low Position Setting
