NEC SL1100 - Figure 2-30 Remove the Battery Tray Bracket; Figure 2-31 Battery Installation

6. Remove two screws and remove the Battery tray bracket.
Two screws
(M3 X 8)
Two screws
(with stopper)
Battery tray cover
Battery tray bracket

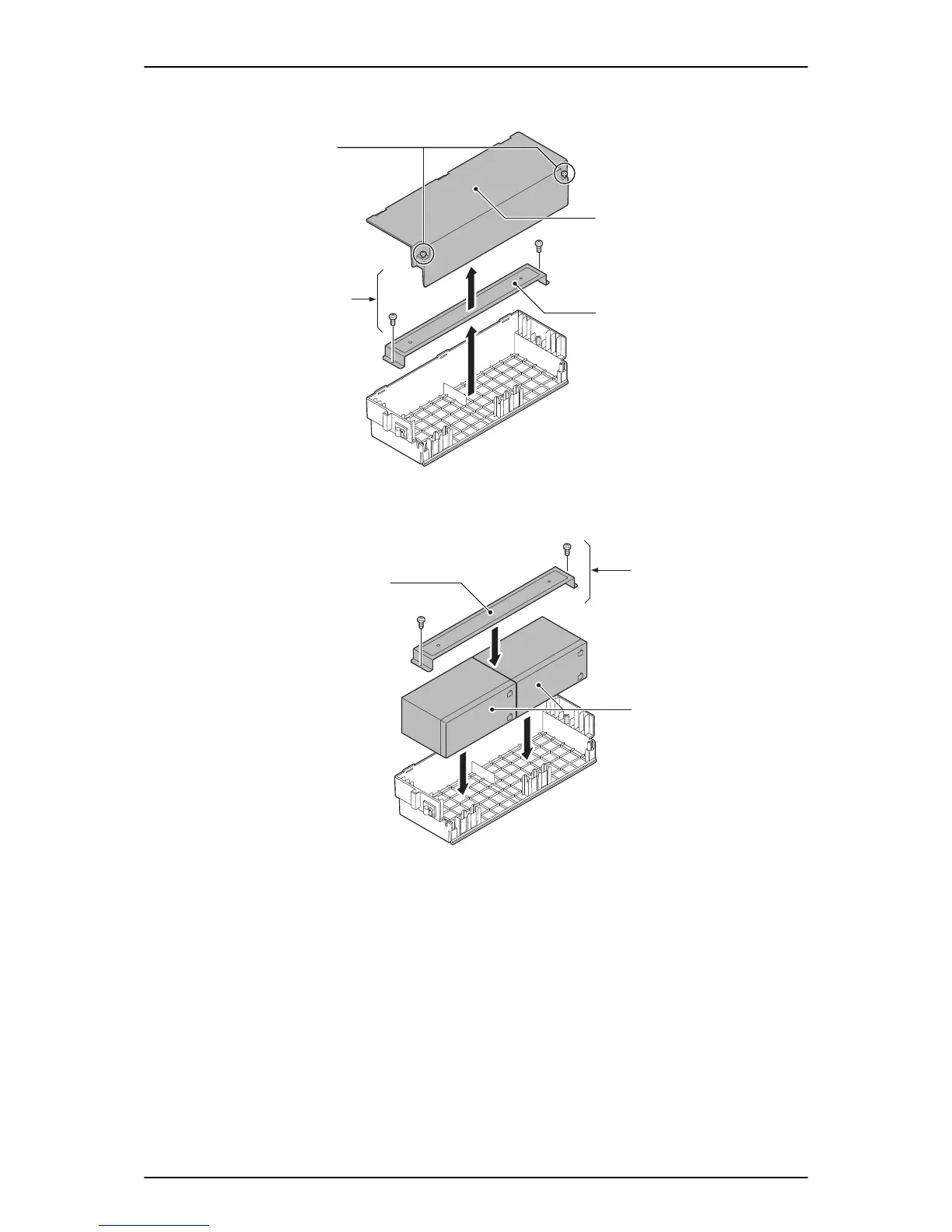

Figure 2-30 Remove the Battery Tray Bracket
7. Install two batteries into the Battery tray.
Two screws
(M3 X 8)
Two batteries
Battery tray bracket
Figure 2-31 Battery Installation
