NEC SL1100 - Figure 2-28 Batt Stopper; Figure 2-29 Pulling out the Battery Tray

206 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

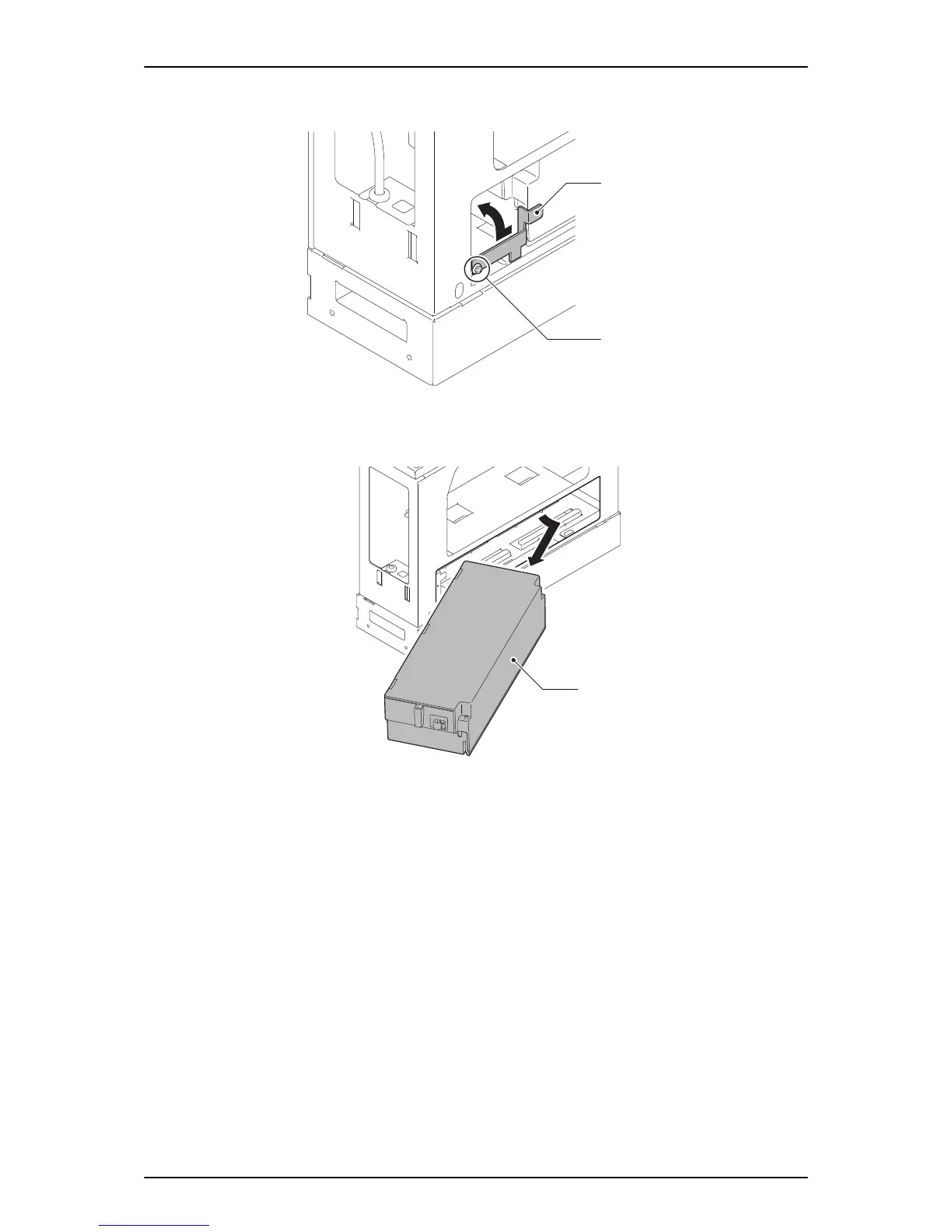

3. Loosen the screw and lift the Batt Stopper.

Screw

Batt Stopper

Figure 2-28 Batt Stopper

4. Pull out the Battery tray.

Battery tray

Figure 2-29 Pulling out the Battery Tray

5. Loosen two screws and remove the Battery tray cover.

ISSUE 5.0 SL1100

Hardware Manual 2-23
