5.10.3 System Connection

1. Connect the LAN Network 10Base-T/100Base-TX cable to the LAN(=) connector via PoE Hub.

Backside

LAN

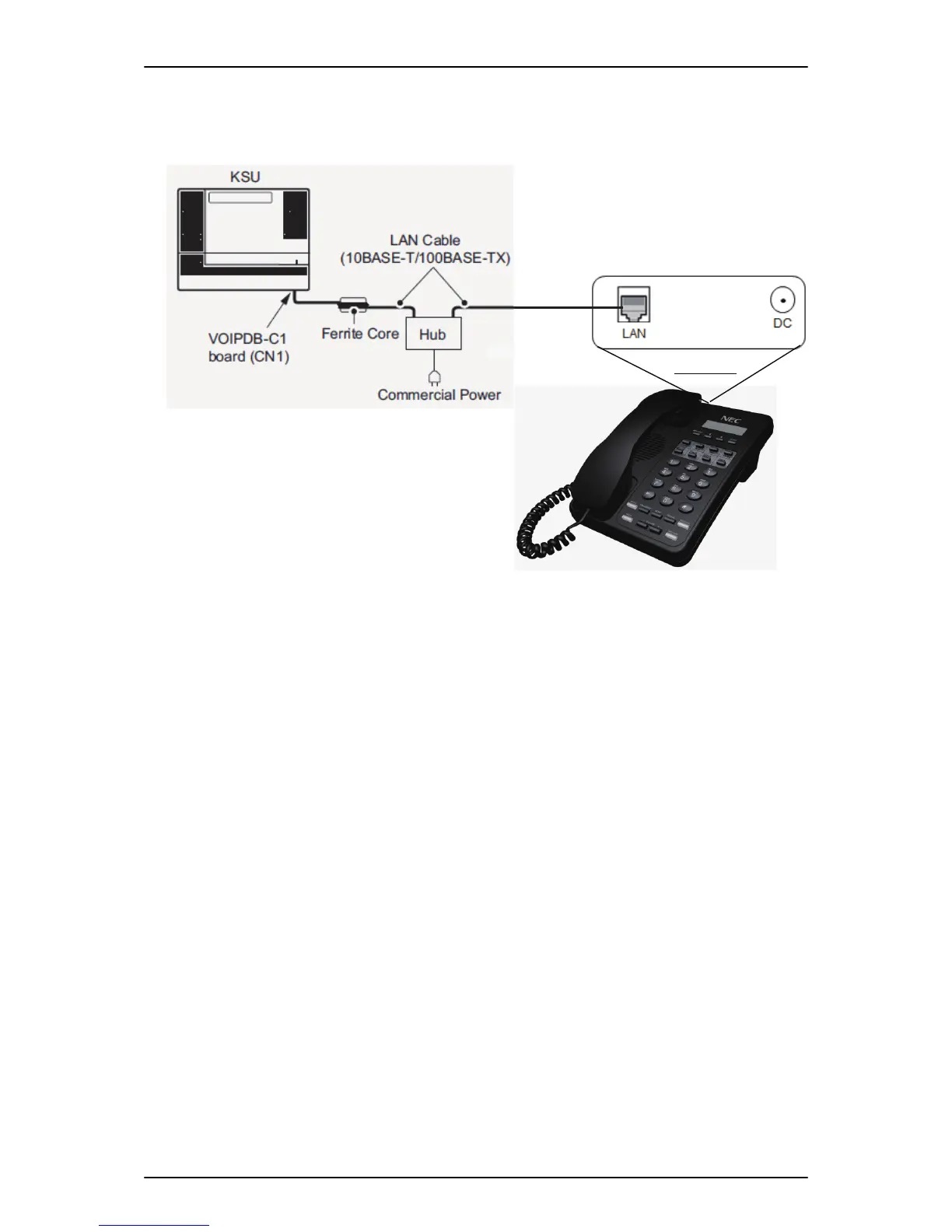

Figure 2-122 System Connection

SL1100 ISSUE 5.0

2-86 Installation
