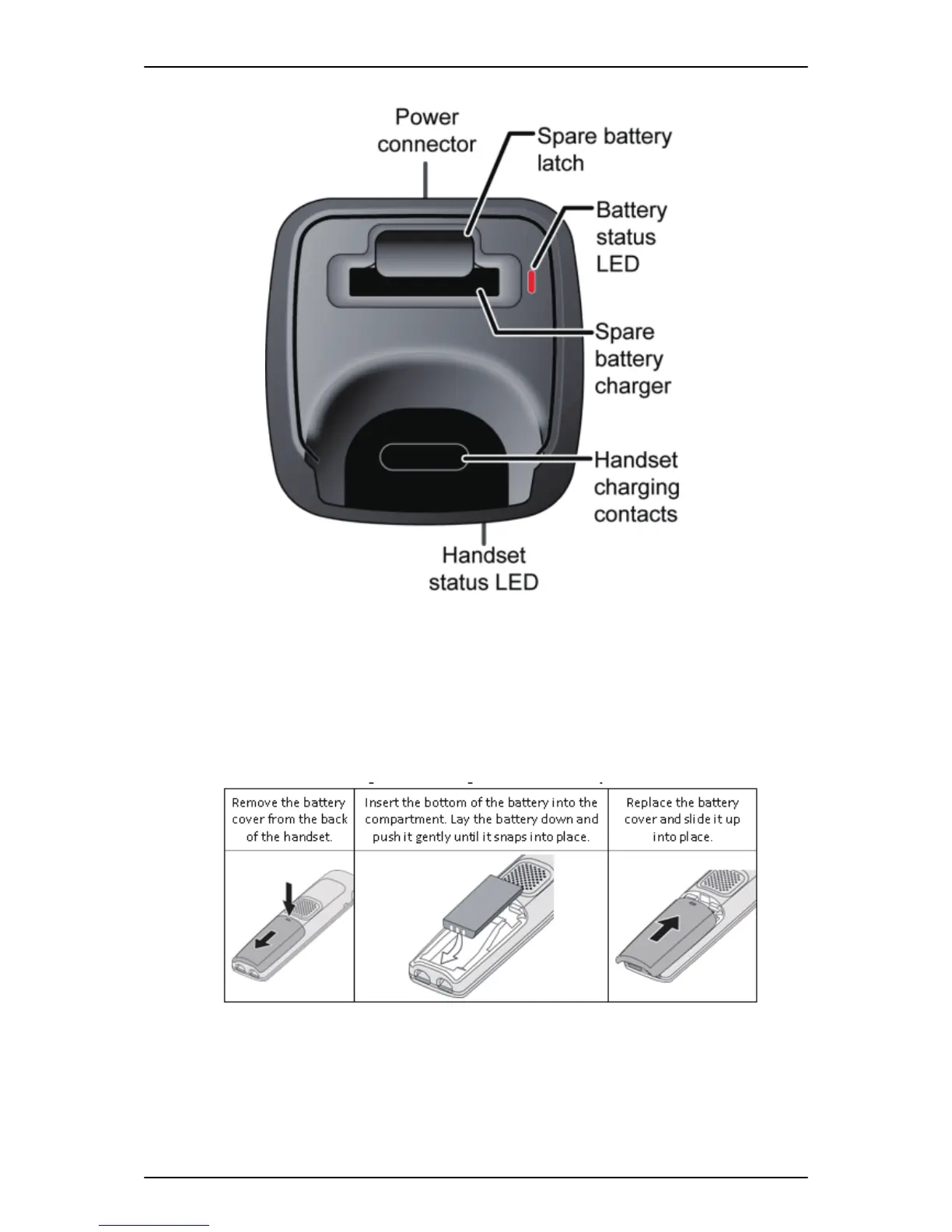

Figure 2-166 Charger Top View
6.4.3.1 Charging the Battery
Follow the steps below to charge the battery.
1. Install the handset battery as shown below in Figure 2-167 Installing the Handset Battery on
page 2-118.
Figure 2-167 Installing the Handset Battery
2. Use the charger AC adapter to connect the charger's AC jack to a standard 120 V AC power
outlet.
3. Place the handset in the charger with the display facing forward. The HANDSET STATUS LED
should turn on; if it doesn't, reseat the handset or try plugging the AC adapter into a different
outlet.
SL1100
ISSUE 5.0
2-118 Installation
