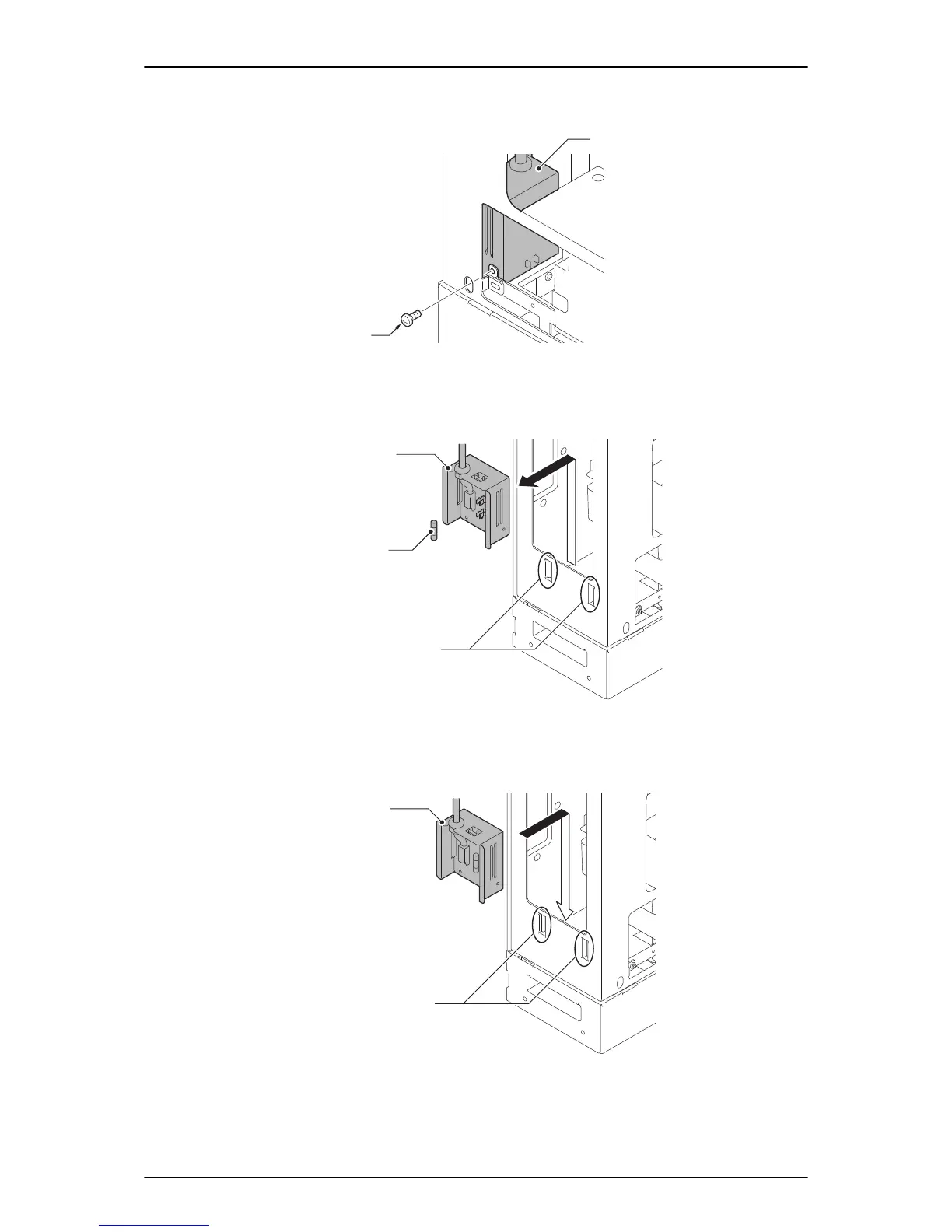

NEC SL1100 - Figure 2-56 Loosen the Fuse Unit Screw; Figure 2-57 Replacing the Fuse; Figure 2-58 Install the Fuse Unit

4. Loosen the screw from the Fuse Unit.
Screw
Fuse Unit
Figure 2-56 Loosen the Fuse Unit Screw
5. Slide Fuse Unit out of the Battery box.
6. Replace the fuse (250VT8AL).
250VT8AL
Fuse
Fuse Unit guide
Fuse Unit
Figure 2-57 Replacing the Fuse
7. Using the Fuse Unit guides, slide the Fuse Unit into the Battery Box.
Fuse Unit guide
Fuse Unit
Figure 2-58 Install the Fuse Unit
