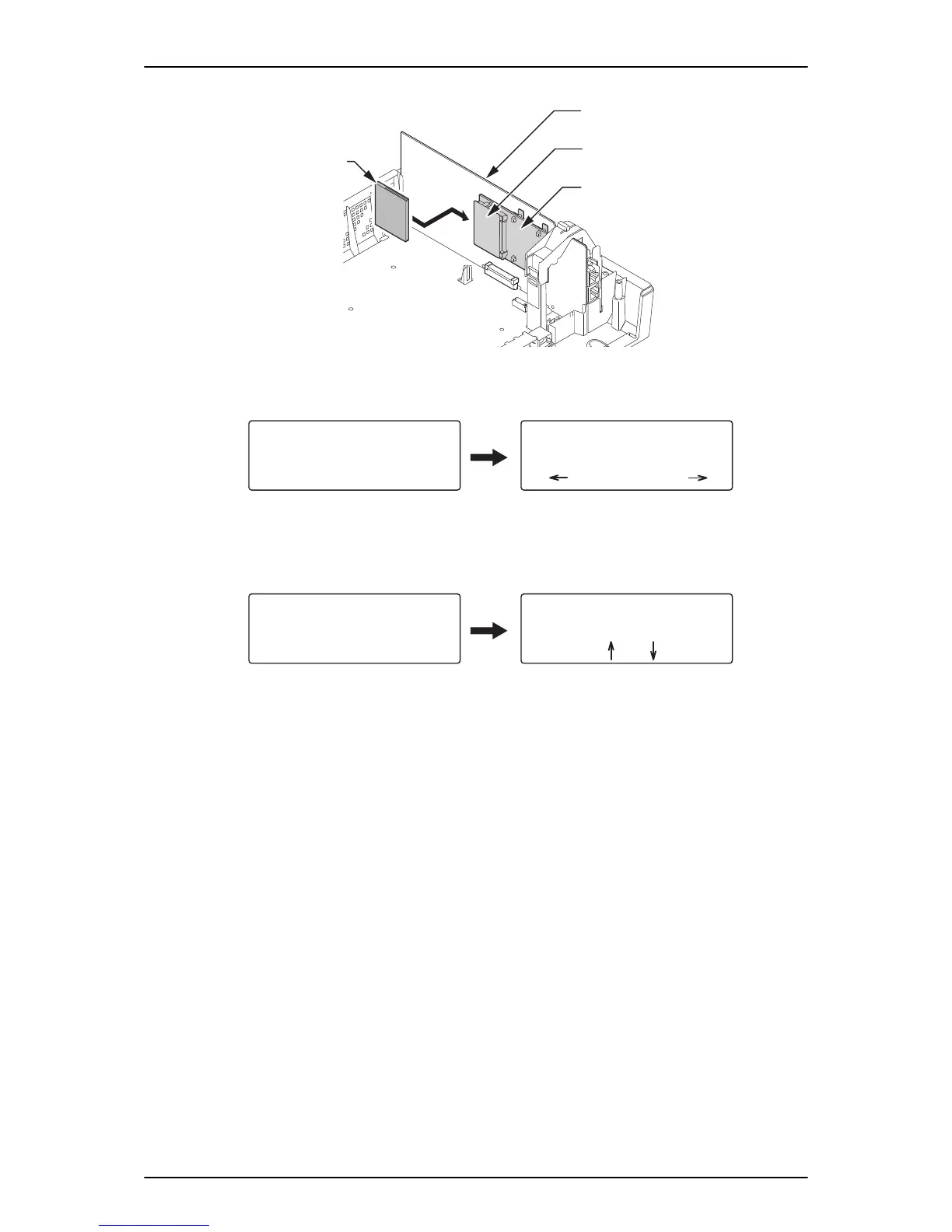

NEC SL1100 - Figure 3-13 Inserting the CF Card; Figure 3-14 PRG90-04 Display; Figure 3-15 Next PRG Display

CPU card
CF Slot (CN2)
CF card
VMDB
Figure 3-13 Inserting the CF card
2. Turn the power on, enter the Program Mode then PRG90-04.
Program Mode
Base Service OP1 OP2
90-04-01
Data Load YES:1 1
Figure 3-14 PRG90-04 Display
3. Dial 1 and press Hold key.
4. When the data backup to the CF card is completed, the display changes to the next PRG.
Loading System Data
90-05- M
’ tenance
Slot Control |01
back Select
Figure 3-15 Next PRG Display
5. Remove the CF card and exit from the Program Mode.
