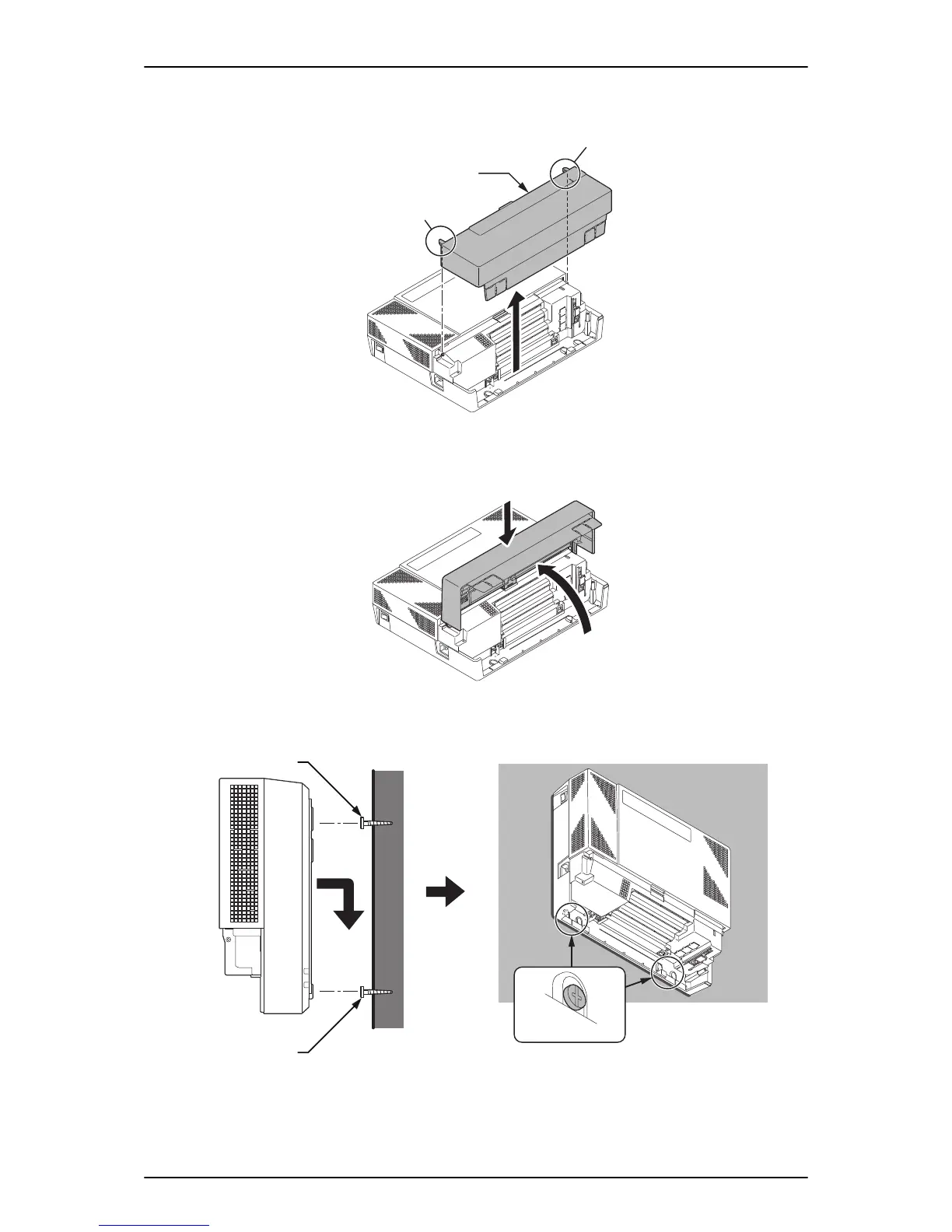

NEC SL1100 - Figure 2-10 Mounting the KSU; Figure 2-8 Removing the Sub-Cover; Figure 2-9 Sub-Cover Open Position

4. Pull out the Sub-Cover by pushing out the tabs.
Sub-Cover
Tab
Tab
Figure 2-8 Removing the Sub-Cover
• The Sub-Cover can be opened and held in the open position.
Push to hold
Open
Figure 2-9 Sub-Cover Open Position
5. Align the four holes on the back of the KSU with the four screws installed in the wall.
Hook
Screw head
Screw head
Fasten screws
Figure 2-10 Mounting the KSU
6. Slide the KSU into position and tighten the lower two screws.
