NEC SL1100 - Figure 2-176 IP Call Logger - Hardware Update Wizard

For Windows 7 or XP
1. Using the USB cable provided, connect the USB interface on the NEC 1-Port IP Call Logging Unit
to an available USB port on your PC. Windows automatically detects the new hardware and starts
the New Hardware Wizard. This displays a dialog box similar to the one shown below.
When using Windows 7 the device driver software is installed automatically.

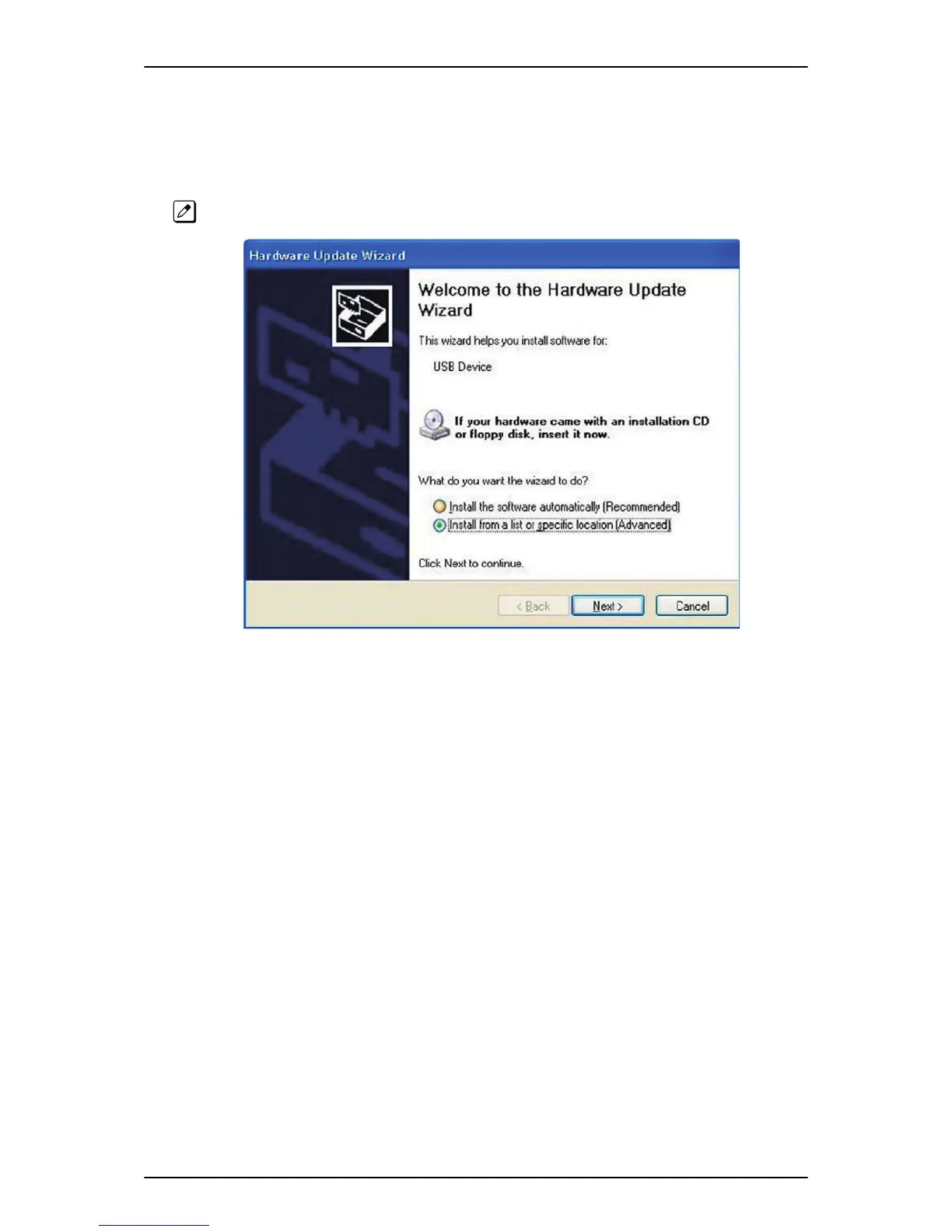

Figure 2-176 IP Call Logger – Hardware Update Wizard
2. Select Install from a list or specific location, and press Next.
3. Navigate to the location where you saved the application download.
SL1100 ISSUE 5.0
2-126 Installation
