NEC SL1100 - Figure 2-104 High Position Setting; Figure 2-105 Cabling for Wall-Mount; Wall-Mounting the DSS Console

3. Adjust the leg to desired height.

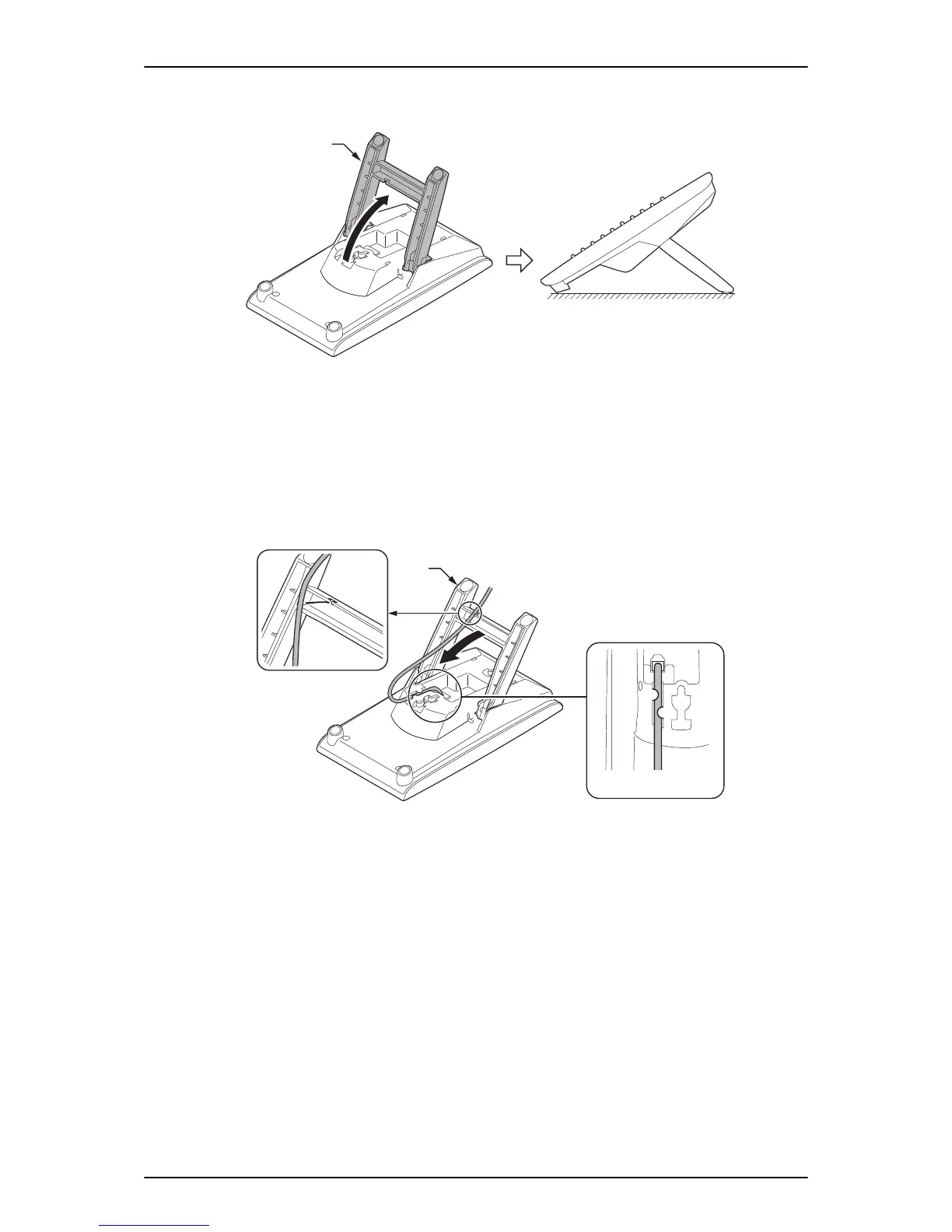

< High position >
Leg
Figure 2-104 High Position Setting
4. Lead the Line cord through the applicable grooves.
(Refer to Figure 2-102 Cabling of DSS on page 2-72)
5.3.2 Wall-Mounting the DSS Console
1. Lift the leg and lead the cable through the applicable grooves. Refer to Figure 2-105 Cabling for
Wall-Mount on page 2-73. Lower leg to stowed position.
< Bottom view>
Leg
Figure 2-105 Cabling for Wall-Mount
