NEC SL1100 - Cabling IP4 WW-008 E-B1; Figure 2-75 Connectors of 008 E-B1; Table 2-11 RJ-61 Digital Connector Pin-Outs (J101, J102)

Table 2-11 RJ-61 Digital Connector Pin-Outs (J101, J102)
Pin No. ESI 1-4 (J101), ESI 5-8 (J102): 2-Wire Digital Extension
Port Connector (RJ-61)
8 765 4321
1 T4 (Tip for port 4)
2 T3 (Tip for port 3)
3 T2 (Tip for port 2)
4 R1 (Ring for port 1)
5 T1 (Tip for port 1)
6 R2 (Ring for port 2)
7 R3 (Ring for port 3)
8 R4 (Ring for port 4)
3.4.2 Cabling IP4WW-008E-B1
This IP4WW-008E-B1 PCB provides two RJ-61 connections for analog extensions.
Before plugging in the Multiline Telephone, DSS Console, Single line
Telephone or Doorphone, ensure all Main and Expansion KSUs are powered
off.
DSX Terminal does not work properly when it connected.
65
䂯
䂥
5
Port 1 Port 2 Port 3 Port 4
43 62 71 8
TR
SLT
Modular Cable
(2-wire, Straight)
T : Tip
R : Ring
J102 J101
SLI 5-8 SLI 1-4

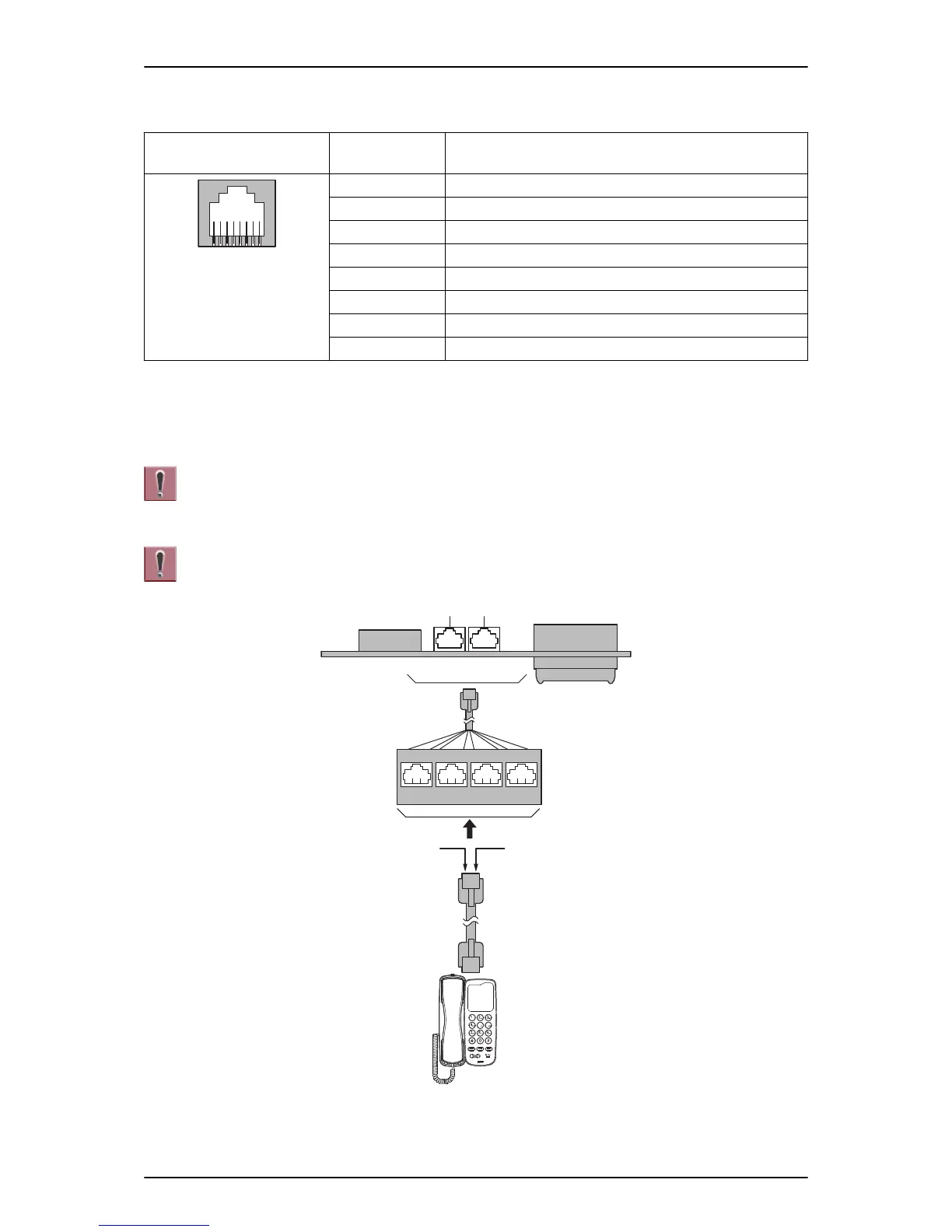

Figure 2-75 Connectors of 008E-B1
SL1100
ISSUE 5.0
2-52 Installation
