NEC SL1100 - Figure 2-151 Daisy-Chain Layout

Figure 2-150 Base Coverage Area
Daisy-Chain Installation
You can combine normal and daisy-chain connections to create a wide variety of coverage
configurations, as long as you have no more than six repeaters per base unit.

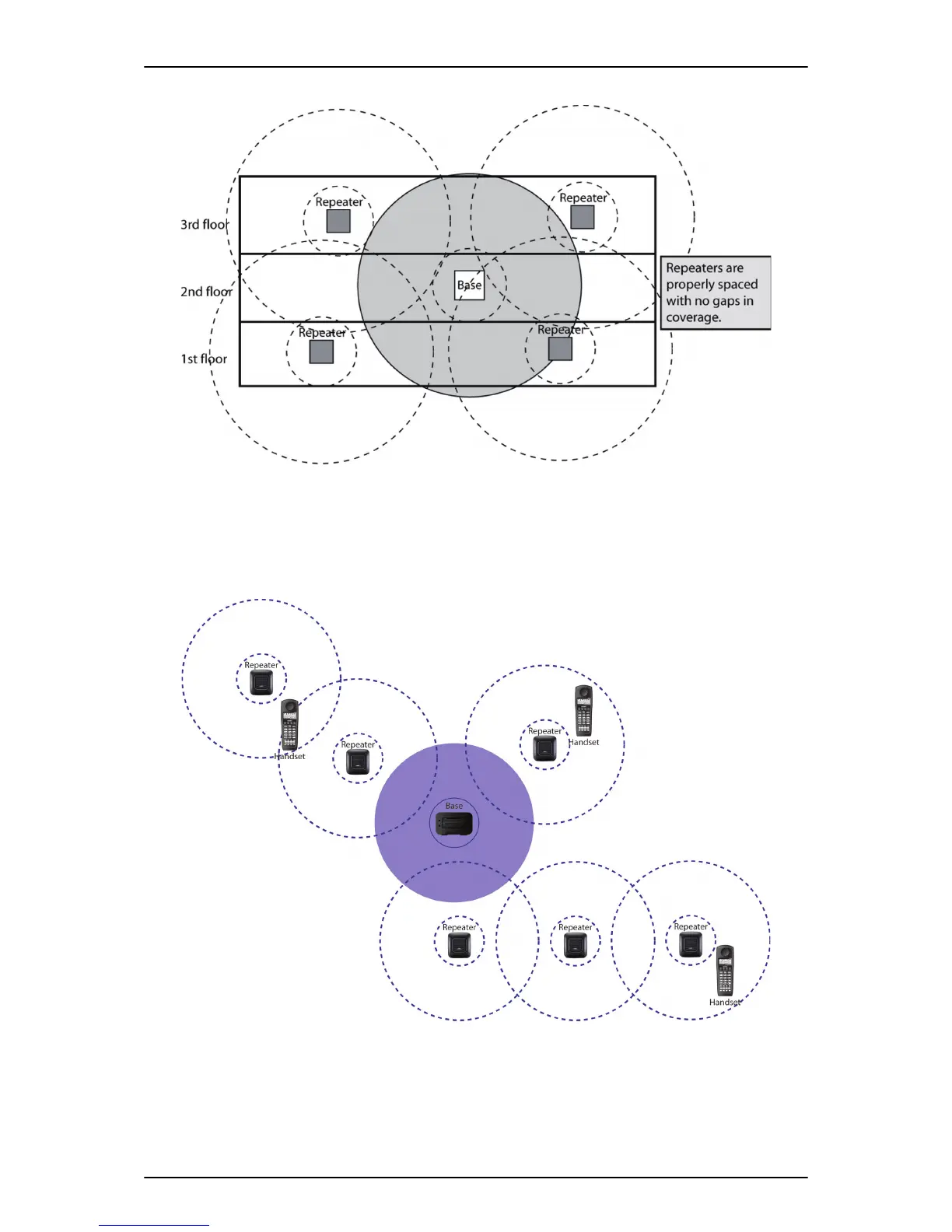

Figure 2-151 Daisy-Chain Layout
ISSUE 5.0
SL1100
Hardware Manual 2-103
