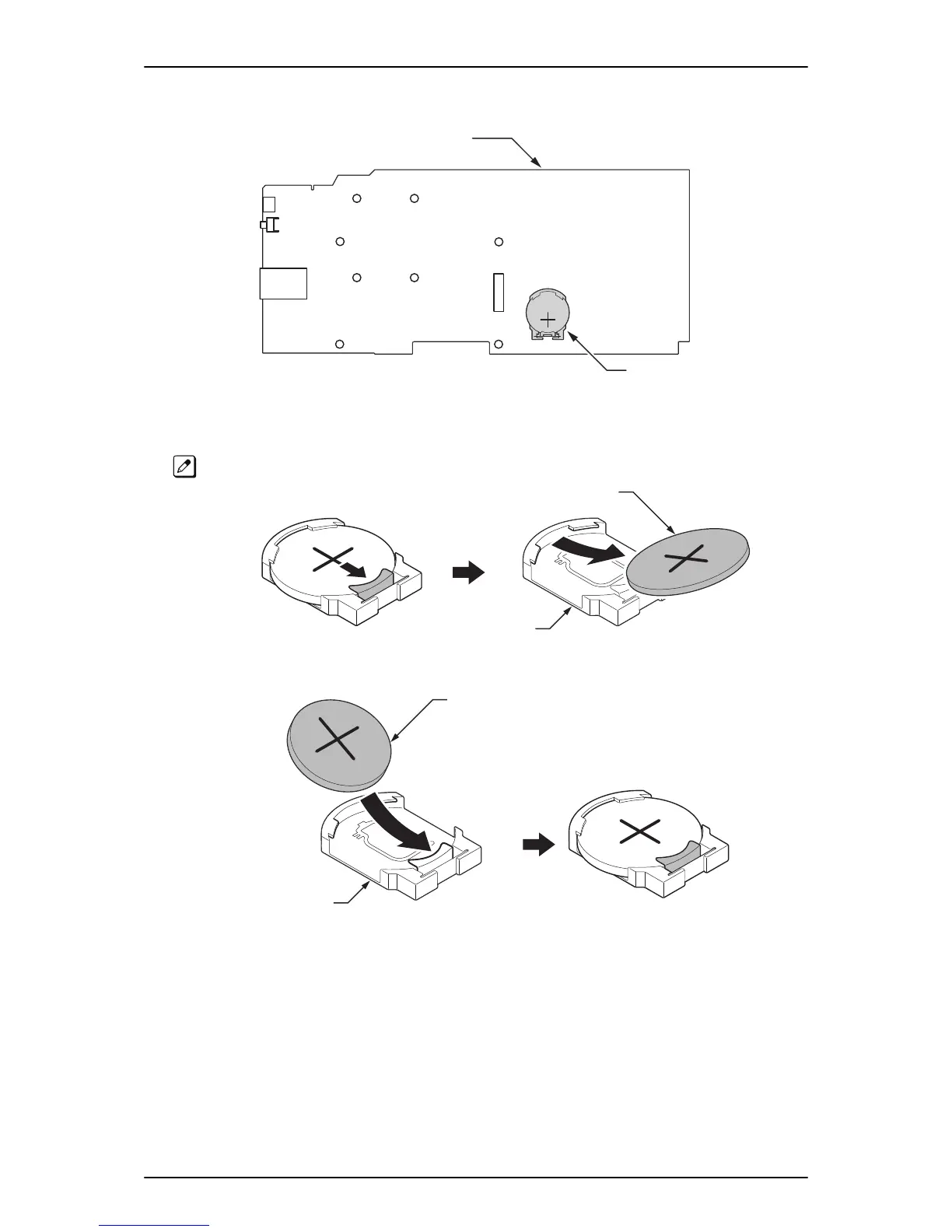

7. Refer to following figure for the Lithium battery location on the CPU card.
Battery socket
< Conductor side >
J12
CPU card
Figure 4-10 Location of Lithium Battery Socket
8. Remove the old Lithium battery and insert the new one into the socket.
The polarity “+” symbol must be on top as illustrated in following figure.
Lithium battery
Socket
Figure 4-11 Removing the Lithium Battery
Lithium battery
Socket
Figure 4-12 Inserting the Lithium Battery
ISSUE 5.0 SL1100
Hardware Manual 4-7
