Issue 6.0 NEC SL1100
9 - 8 IP Multiline Station (SIP)
6.1 Example Configuration 1 - Static IP Addressing, One LAN
This example shows IP Phone connected to a single LAN (no routers), with
static IP Addresses.

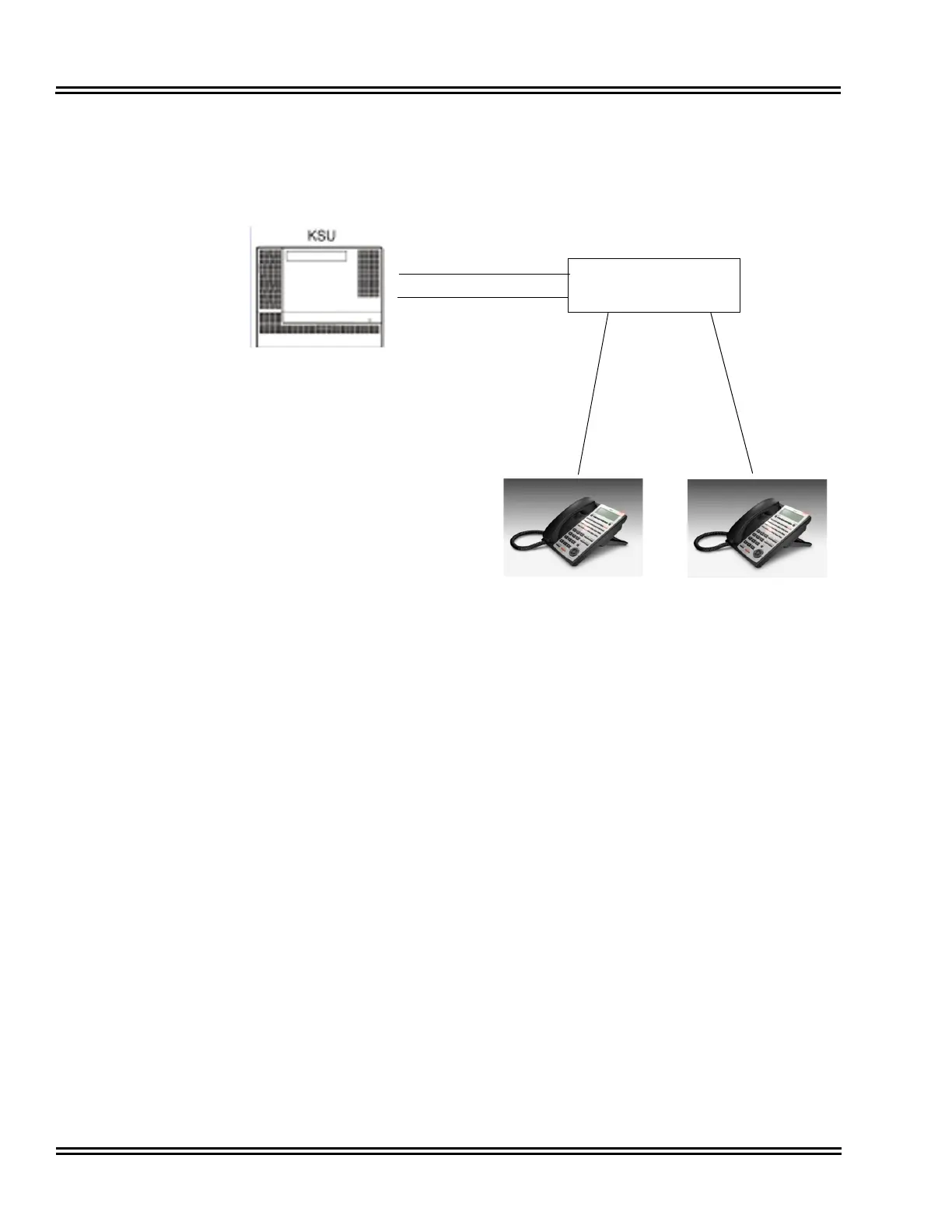

Figure 9-3 Example Configuration 1 - Static IP Addressing, One LAN
IP4
VoIP
Switch
NEC SL1100
VoIPDB IP Address
192.168.1.20
VoIP Gateway: 192.168.1.21
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
IP Phone 1
192.168.1.200
Extension: 100
IP Phone 2
192.168.1.201
Extension: 101
