Issue 6.0 NEC SL1100
9 - 10 IP Multiline Station (SIP)
In this case, additional programming would be required. Refer to Chapter 4
General IP Configuration.

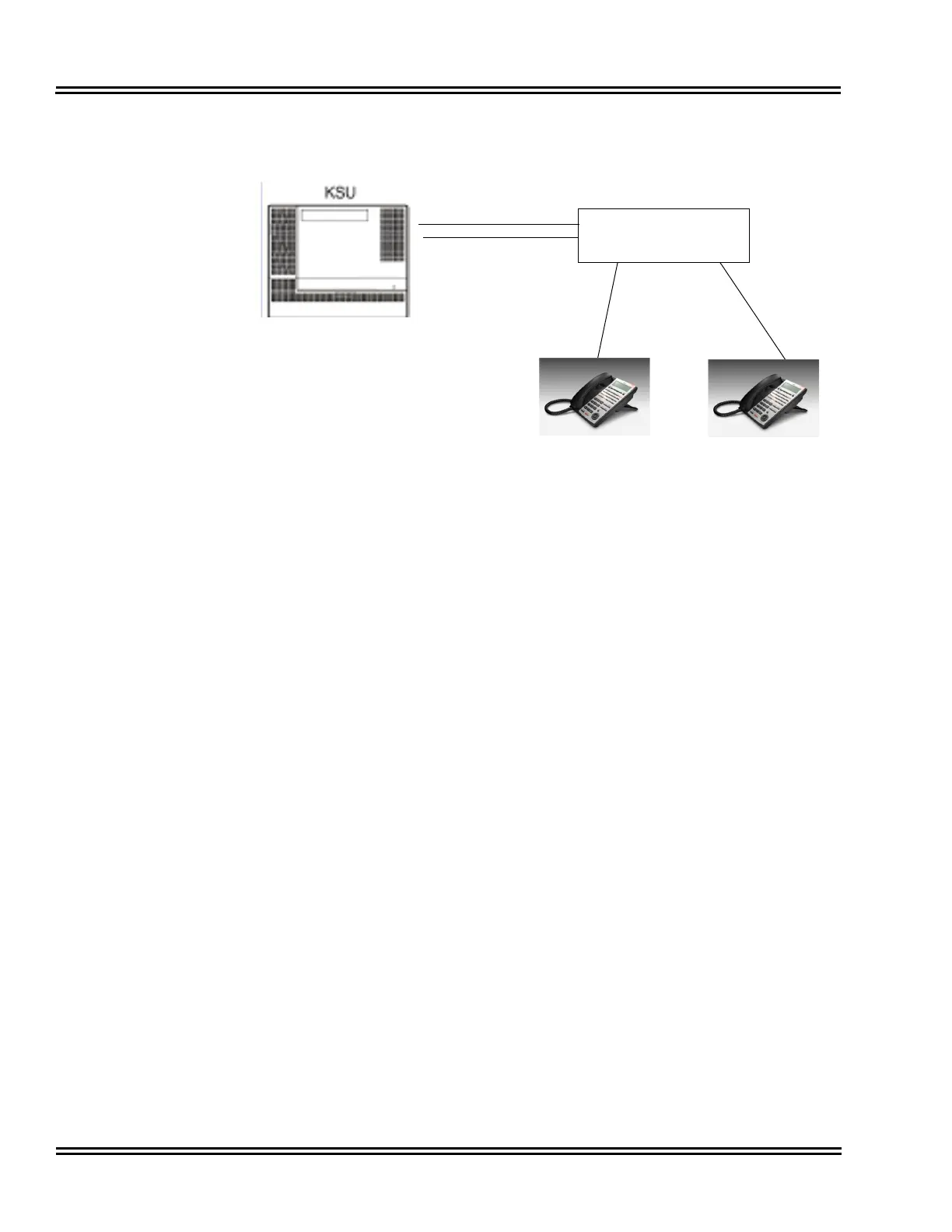

Figure 9-4 Example Configuration 2 - Dynamic IP Addressing, One LAN
Programming - CPU:
10-12-01 : CPU Network Setup - IP Address
10-12-10 : CPU Network Setup - Subnet Mask
10-12-03 : CPU Network Setup - Default Gateway
10-12-09 : CPU Network Setup - VoIPDB Address
(This assignment is for when the VoIP daughter board is installed.)
10-13-01 : In-DHCP Server Setup - DHCP Server Mode
10-14-01 : Managed Network Setup (Scope 1)
0.0.0.0
255.255.255.0
192.168.1.254
192.168.1.20
On
192.168.1.200 Min/
192.168.1.250 Max
Programming - VoIP DSP:
10-16-35 SIP Server Code
10-16-36 SIP Server IP Address
84-26-01 : VoIP Basic Setup - IP Address
120
192.168.1.20
192.168.1.21
Programming - IP Phones:
DHCP Mode (Ext. 200): Enabled
IP4
VoIP
Switch
NEC SL1100
VoIPDB IP Address
192.168.1.20
VoIP Gateway: 192.168.1.21
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
IP Phone 1
192.168.1.200
Extension: 200
IP Phone 2
192.168.1.201
Extension: 201
To Next Page
