SECTION 8 PROGRAMMING EXAMPLES
The following examples will all be based off of two sites connected together with SL
Net. Site A will have extension numbers in the 1XX range and site B will have
extension numbers in the 2XX range. The diagram below shows the IP Addressing
information for each site.
8.1 Basic SL Net Setup

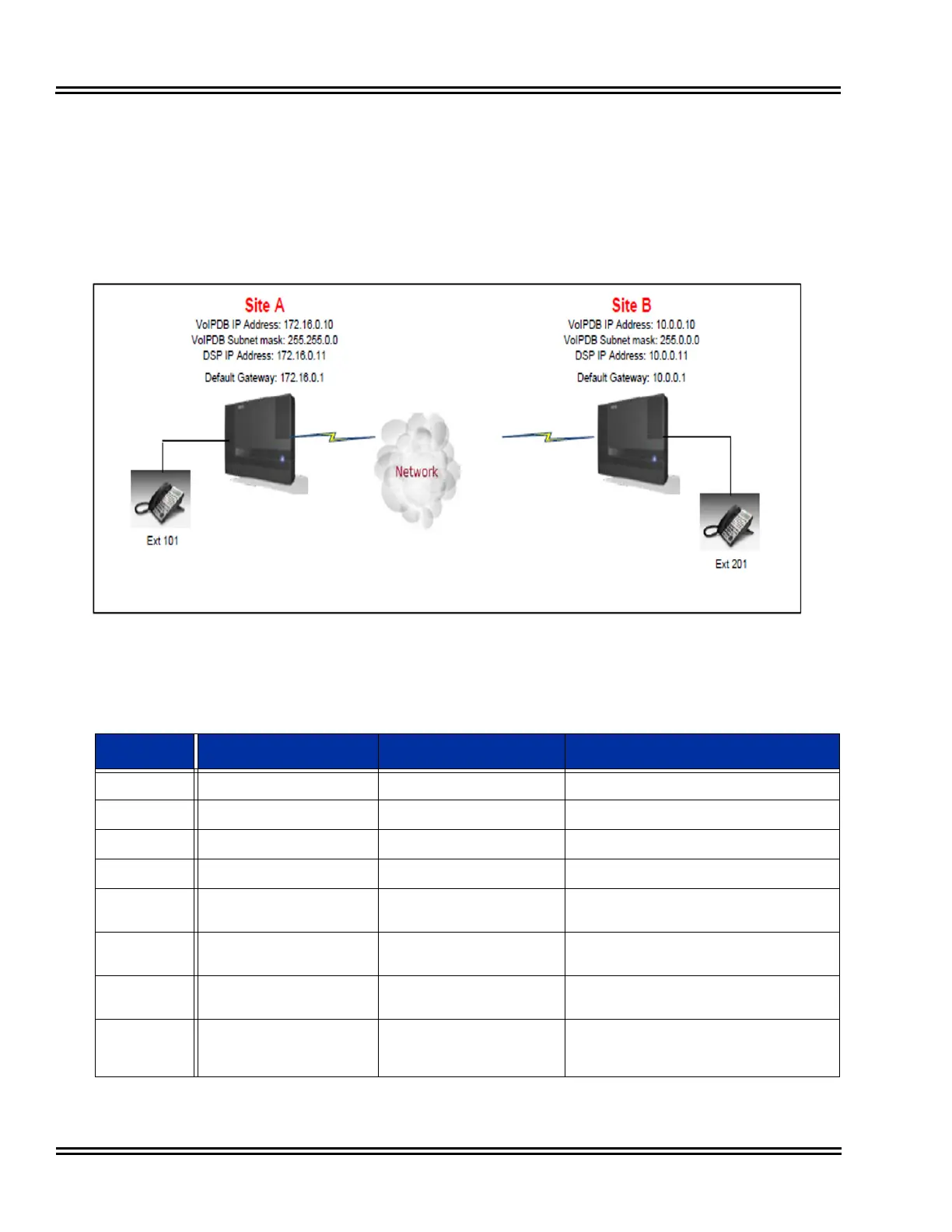

Figure 13-4 Programming Example
Program Site A Site B Notes
10-12-09 172.16.0.10 10.0.0.10 IP address of VoIPDB
10-12-10 255.255.0.0 255.0.0.0 Subnet Mask of VoIPDB
10-12-03 172.16.0.1 10.0.0.1 Default Gateway
84-26-01 172.16.0.11 10.0.0.11 DSP IP Address
11-02-01 Default Change extensions to 201
~ 284
Extension numbering
11-01-01 Digit (2X) set to 3 digit
length
Digit (1X) set to 3 digit
length
Define the digit length for the remote
destination extension numbers.
11-01-01 Digit (2X) set to Network
System Access
Digit (1X) set to Network
System Access
Set the leading digits of the remote
destination as Network System Access.
11-01-01 Digit (2X) set to Network
ID 1
Digit (1X) set to Network ID
1
Set the leading digits of the remote
destination as the first available network
ID.
