Issue 6.0 NEC SL1100
9 - 28 IP Multiline Station (SIP)
13.5.3 Tagging Data Packets Using IP Phone
1. While logged in to the IP address of the phone on the PC, go to
Network Settings>Advanced Settings>PC Port Settings.
Refer to Section 13.5.1 Logging In on the PC on page 9-24.
2. Access the following three menus to select options for PC Port
Settings:
 Port VLAN Mode
 Port VLAN ID
 Port VLAN Priority.

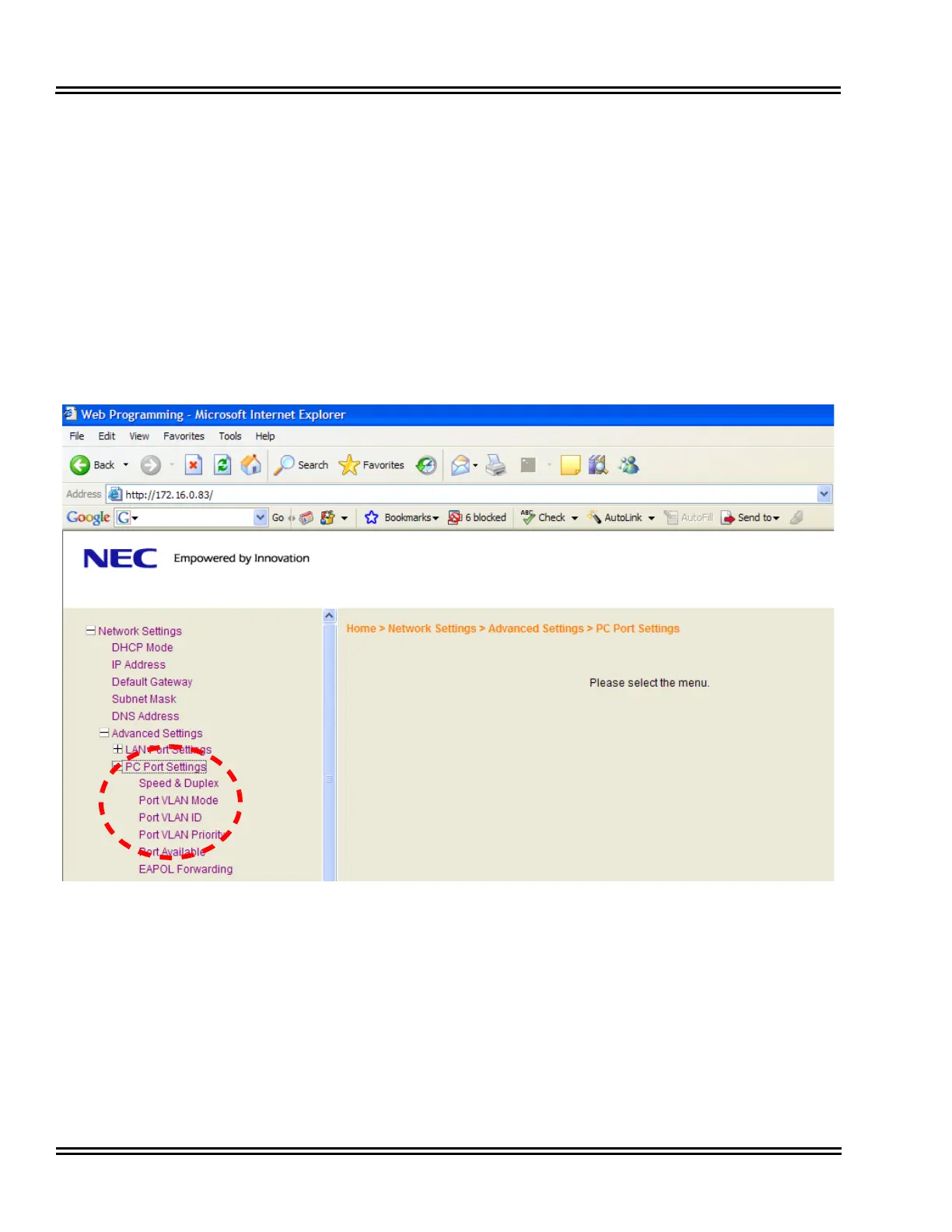

Figure 9-12 PC Port Settings Window
