Issue 6.0 NEC SL1100
9 - 60 IP Multiline Station (SIP)
3. Program 11-02
SIP MLT Stations are assigned to non-equipped hardware
ports.
Physical Station ports are assigned automatically from lowest
number ascending as cards are added to the system.
Because of this you should assign SIP MLT Stations starting
with the higher number ports. By default all Station Ports are
assigned numbers in the SL1100. These are easily changed in
Program 11-02 to the required station number as long as the
leading digit/digits are set in Program 11-01 as Extension.
Ports are dedicated to VoIP stations in groups of 2. E.g. In the
image below if port 84 (Extension 184) is used for a SIP MLT
Station that group of 2 ports (Ports 83 and 84) is now dedicated
to VoIP use only.

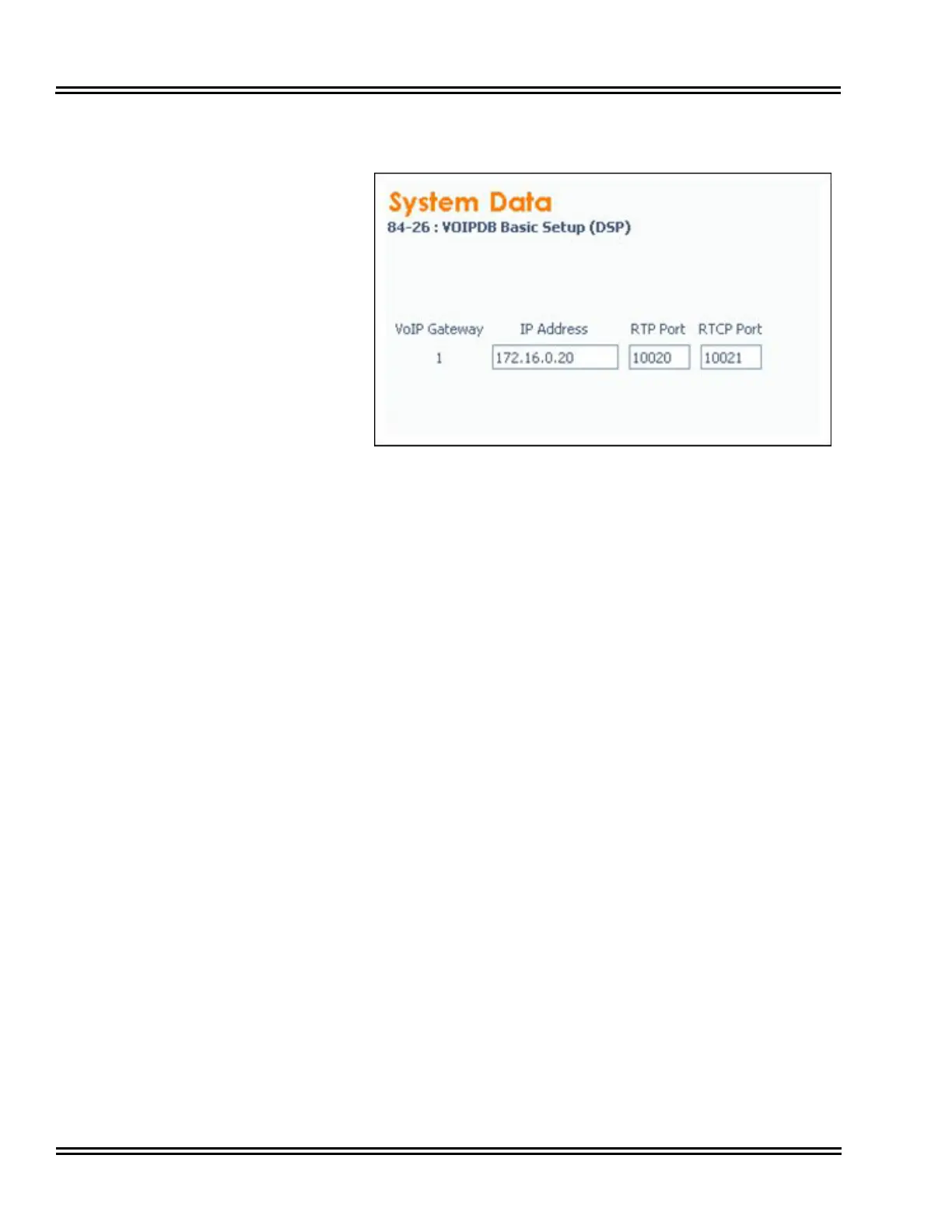

Figure 9-27 System Data 84-26: VoIPDB Basic Setup (DSP)
