3. Select the VLAN Mode to enable or disable this feature.
4. Select either Enable or Disable (default) and click OK
.
The remaining data packets settings for VLAN on the PC Port
are the same as those for the voice packets.
5. VLAN ID allows an entry of 1~4094 for the VLAN ID. VLAN
Mode must be enabled for this entry to be valid.
Enter the VLAN ID, and click OK.
6. VLAN Priority allows an entry of 0~7 for the VLAN Priority.
VLAN mode must be enabled for this entry to be valid.
Enter the required priority, and click OK.

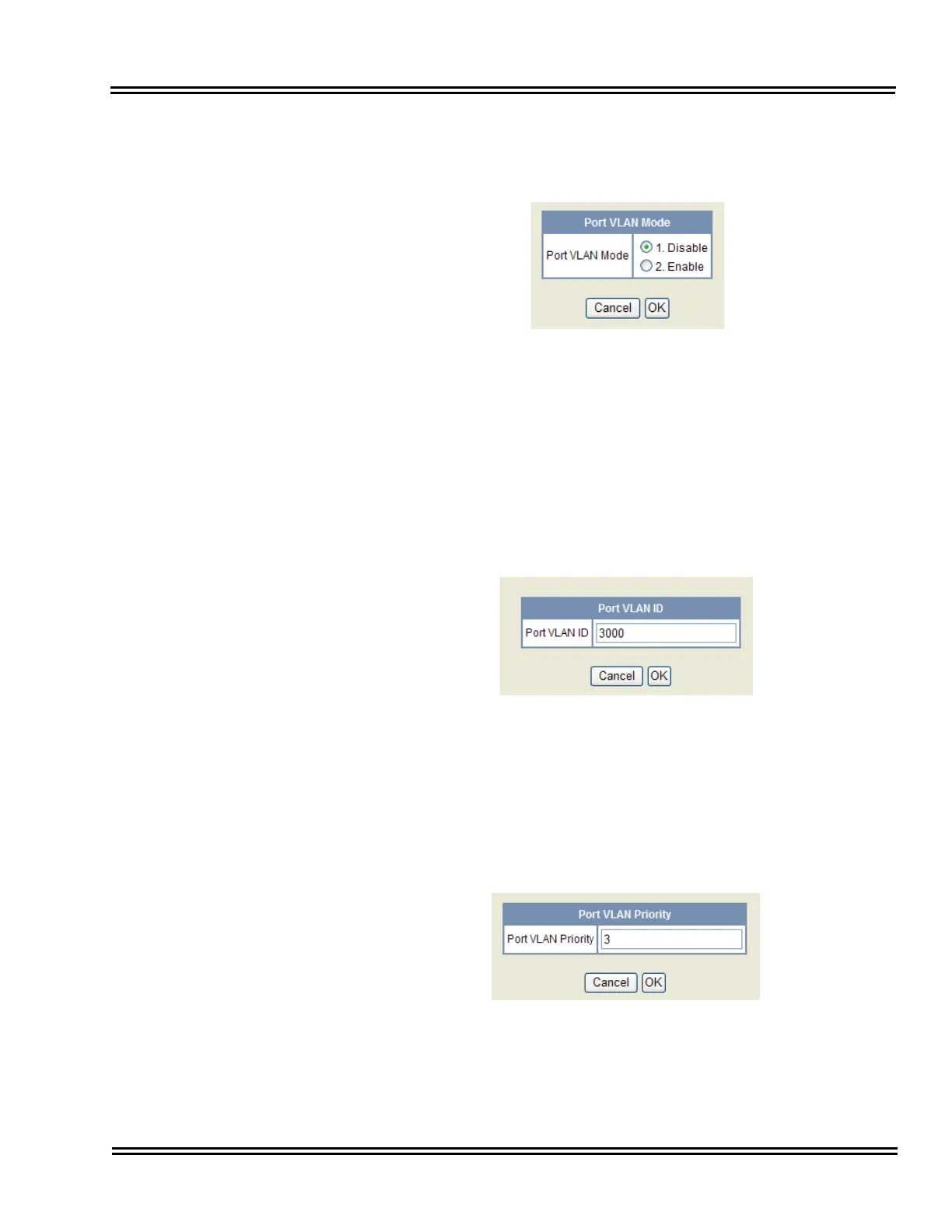

Figure 9-13 Port VLAN Mode
Figure 9-14 Port VLAN ID
Figure 9-15 Port VLAN Priority
