Issue 6.0 NEC SL1100
9 - 34 IP Multiline Station (SIP)
The following table shows the 8 bit TOS field and the associated Diffserv bits.
IP Precedence/Diffserv Values Submitted in Command 84-10
Assignments for the IP Precedence/Diffserv values in the system are
submitted in command 84-10. This setting data affects only the packets sent
by the VoIPDB card. This does not affect the packets sent from the IP
terminals.
101110 46 Expedited Forwarding (EF)
110000 48 Class Selector 6 (CS6)
111000 56 Class Selector 7 (CS7)
DSCP Code
Points
Binary Values Names
Diffserv Diffserv Diffserv Diffserv Diffserv Diffserv
Not Used Not Used
1(on) here =
value of 32
1(on) here =
value of 16
1(on) here =
value of
8
1(on) here =
value of
4
1(on) here =
value of
2
1(on) here =
value of
1

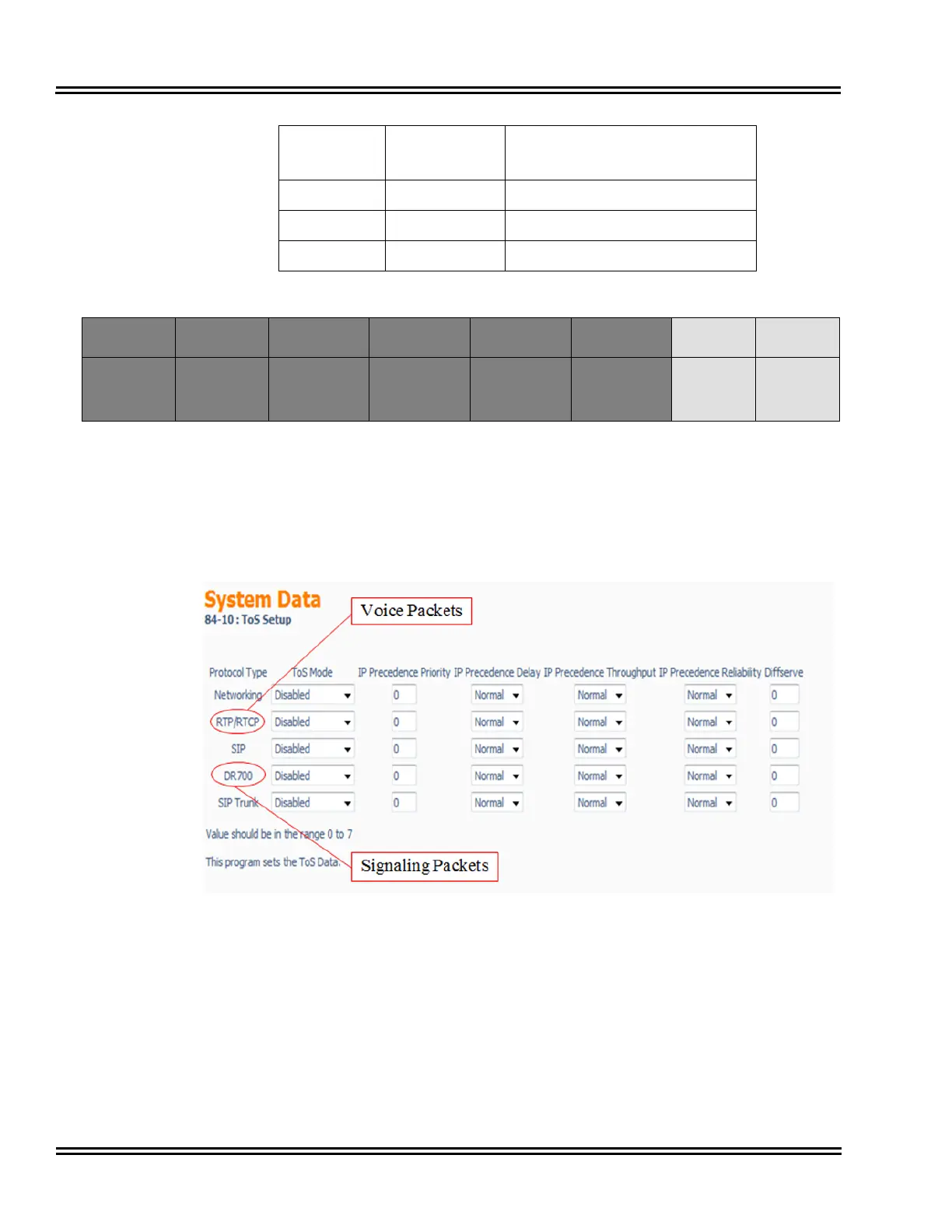

Figure 9-18 84-10: ToS Setup
