4.3 Using Power Fluctuation Testing (Simulation) Function
DP Series/DP Series Type R
123
Voltage change simulation
In this simulation, the 50 Hz 100 V power source repeats the voltage change three times at
10-second intervals, while the voltage drops to 70% and then linearly recovers in 0.5 seconds during
one cycle as shown in Figure 4–13. For this case, set so that the total of Normal 1 and Normal 2 Step
Times becomes 10 seconds and set the repeat count to 3. Set the Trans 1 Step Time to zero (Table
4-7).
正常時
100 V
低下時
70 V
周波数: 50 Hz
電圧
上昇時
5秒
0.02秒
0.5秒 5秒
3回繰り返し
At drop
Frequency: 50Hz
Repeat 3 times
5 sec 5 sec 0.5 sec
At normal
At voltage
rise
0.02 sec

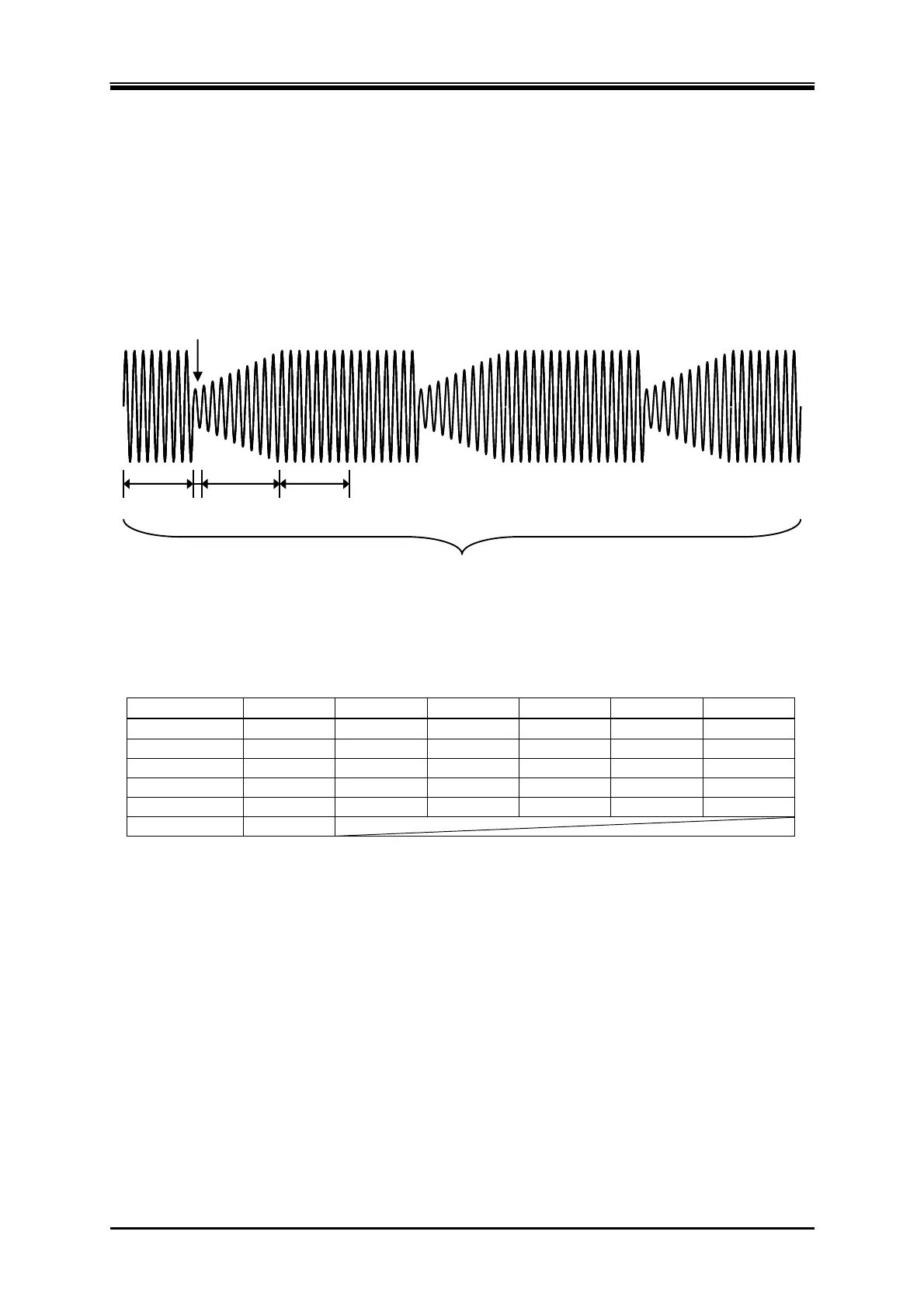

Figure 4-13 Voltage Change Simulation Example
Table 4-7 Voltage Change Simulation Edit Example
Step Initial Normal 1 Trans 1 Abnormal Trans 2 Normal 2
Step Time — 5 s 0 s 0.02 s 0.5 s 5 s
AC voltage 100 V 100 V — 70 V — —
Frequency 50 Hz 50 Hz — 50 Hz — —
Start phase OFF OFF — OFF — OFF
Stop Phase OFF OFF — OFF — OFF
Repeat count 2 times
