3. Basic Operation
PROGRAMMABLE AC POWER SOURCE
56

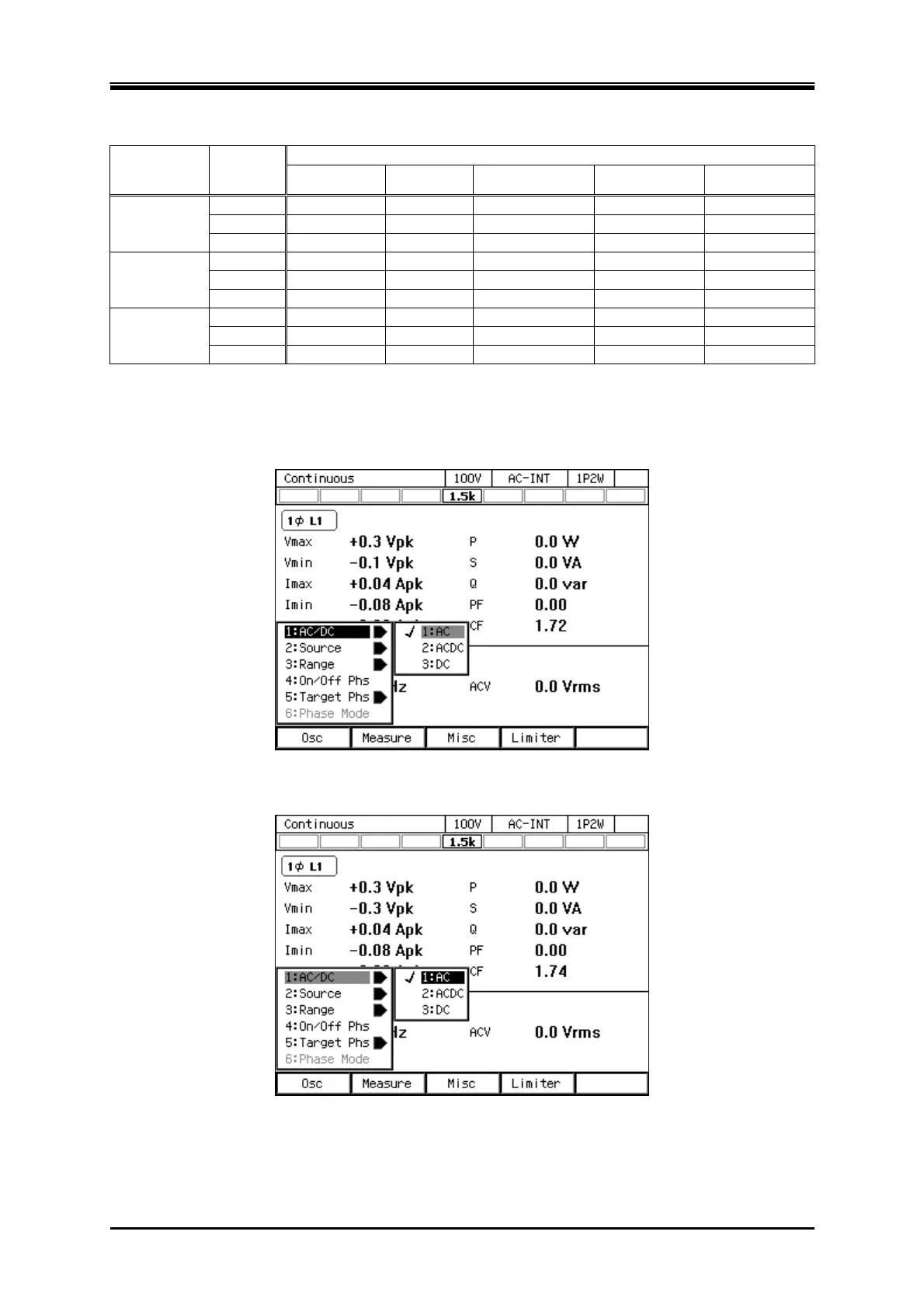

Table 3-9 List of the Selectable Combinations of the AC/DC Mode and the Signal Source
Output
phase
configuration
AC/DC
mode
Signal source
INT VCA SYNC EXT ADD
1P2W AC AC-INT AC-VCA AC-SYNC AC-EXT AC-ADD
ACDC ACDC-INT - ACDC-SYNC ACDC-EXT ACDC-ADD
DC DC-INT DC-VCA - - -
1P3W AC AC-INT AC-VCA AC-SYNC - -
ACDC*1 ACDC-INT - ACDC-SYNC - -
DC - - - - -
3P4W AC AC-INT AC-VCA AC-SYNC - -
ACDC*1 ACDC-INT - ACDC-SYNC - -
DC - - - - -
*1: The DC voltage cannot be set in 1P3W or 3P4W of the ACDC mode.
Operation procedures using soft-keys
1.
Press the [Osc] soft-key and select [1:AC/DC].
2.
In the displayed selection box, select the desired AC/DC mode.
