2.5 Output and System Cable Connection

DP Series/DP Series Type R

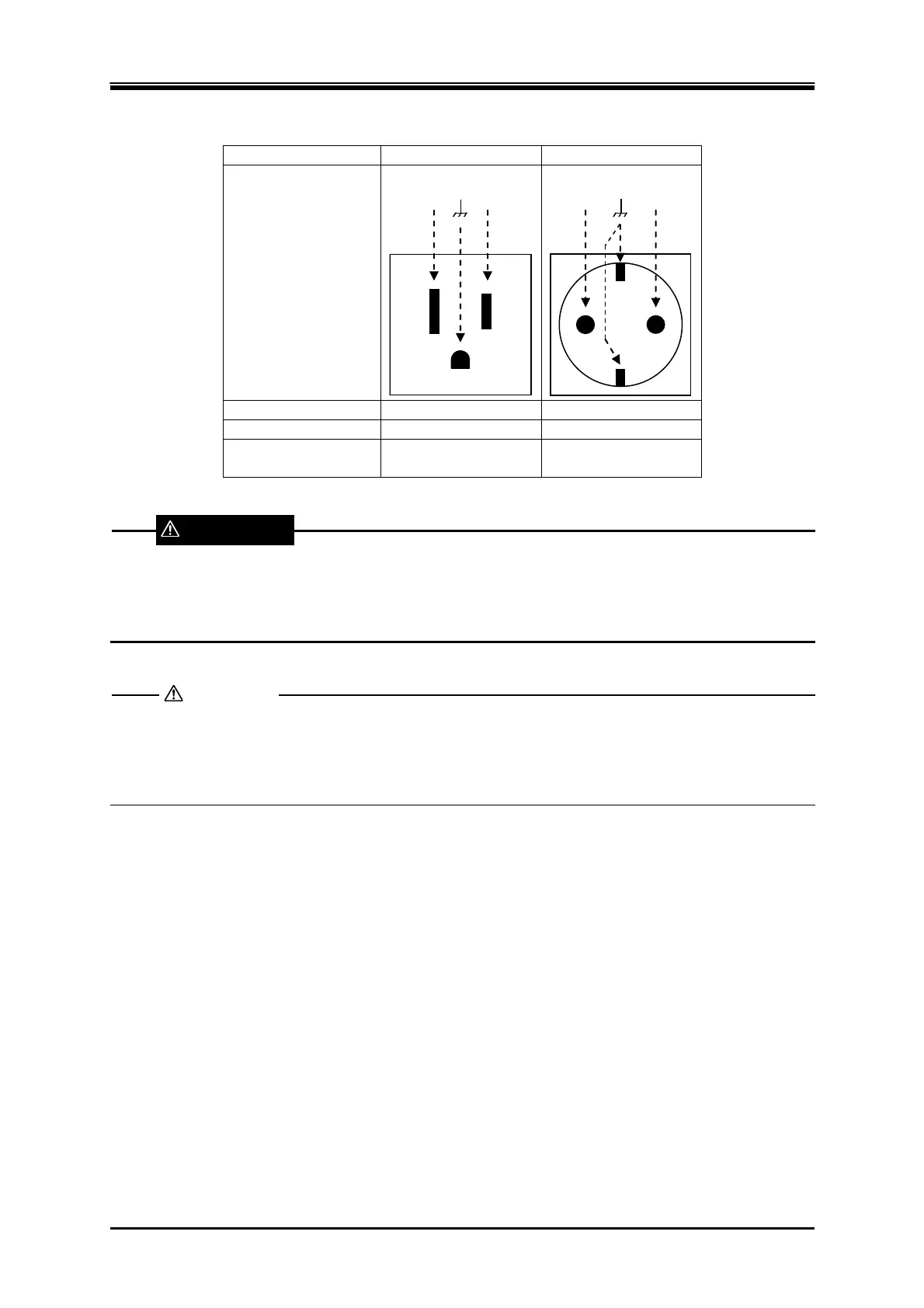

Table 2-10 Outlet List

Type NEMA 5-15 CEE 7

Form

and Terminals

Maximum Voltage 125 Vrms 250 Vrms

Maximum Current 15 Arms 15 Arms

Available

Output Range

100 V range

200 V range

 When using the outlet only and not using the outlet terminal, attach the resin-molded terminal

cover so that the folded part of it is directed to the lower side of the product, in order to avoid

contact with the output terminal.

 Use the outlet only for AC output without DC offset. Do not take DC output or AC output with

DC offset from the outlet.

 Use the outlet for 15 A or less output.
