2. Preparation before Use
PROGRAMMABLE AC POWER SOURCE
28
2.5.3 Multi-phase Model
The output terminal of DP045M/DP090M is divided into two terminals, the polyphase output
terminal and the single-phase output terminal, as shown in Figure 2–2. The single-phase two-wire
(1P2W) output uses the single-phase output terminal, and the single-phase three-wire (1P3W) output
and the three-phase four-wire (3P4W) output use the polyphase output terminal.
電源入力端子
センシング入力端子
単相出力端子
多相出力端子
単相3線出力，
三相4線出力
で使用します。
単相2線出力
で使用します。
Polyphase output terminal
(Used for the single-phase
three-wire output and the
three-phase four-wire
output.)
Sensing input terminal
Single-phase output
terminal
(Used for single-phase
two-wire output.)
Power input
terminal

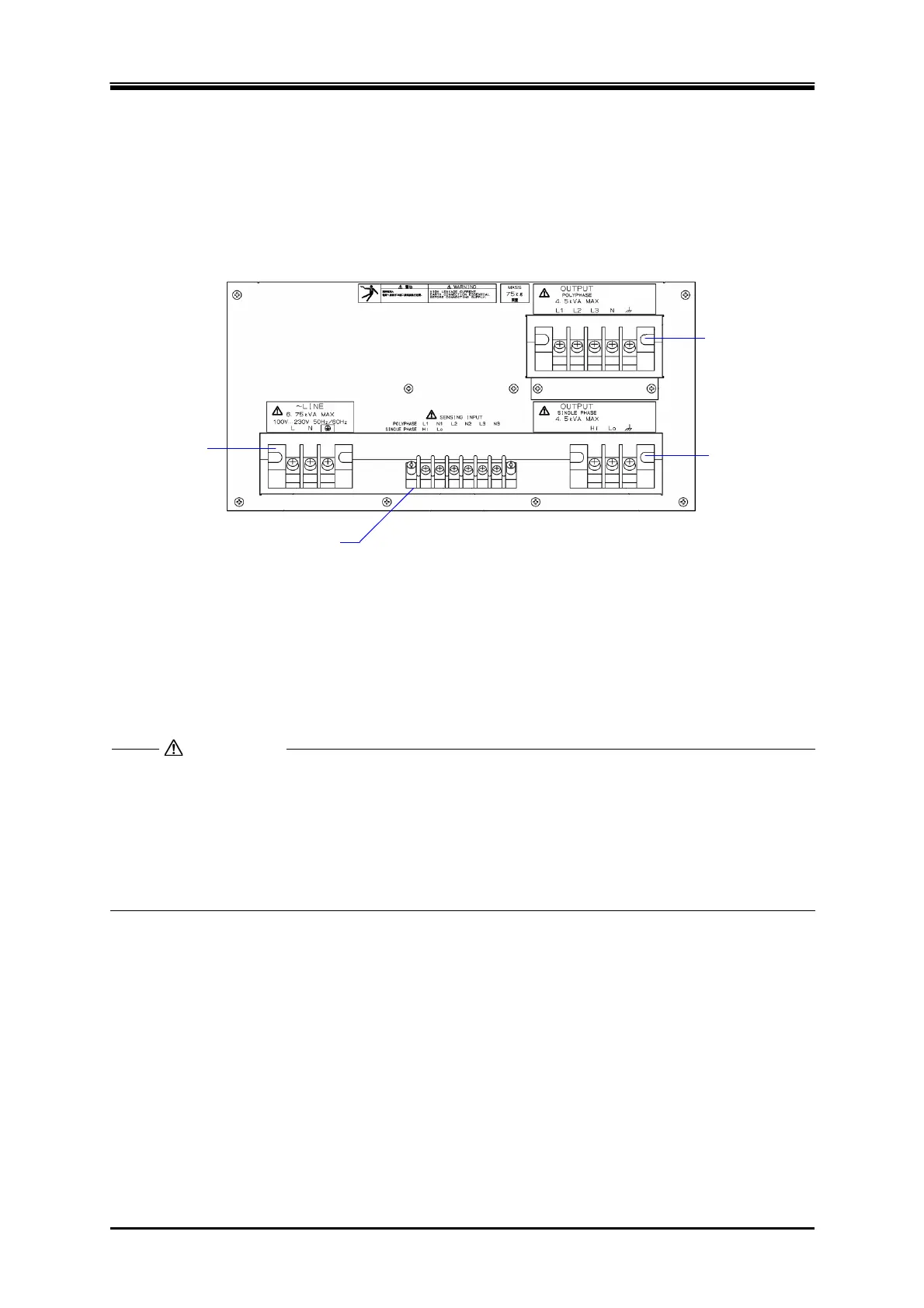

Figure 2-4 Terminal Panel Arrangement of Multi-phase Model (Rear)
Connection procedure
The connection procedure of the single-phase output terminal follows the description in 2.5.1, and
that of the polyphase output terminal follows 2.5.2.
 In the single-phase two-wire (1P2W) output, do not connect anything to the polyphase output
terminal.
 In the single-phase three-wire (1P3W) output and the three-phase four-wire (3P4W) output, do
not connect anything to the single-phase output terminal.
 In the single-phase three-wire (1P3W) output, do not connect anything to the L3 terminal.
CAUTION
