2.5 Output and System Cable Connection
DP Series/DP Series Type R
27
The output terminal that can be grounded is the N terminal. Do not ground any of the L1, L2,
and L3 terminals.
Do not apply current exceeding the maximum current per phase (see 10.5 and 10.6) to any
output terminal including N terminal.
3.

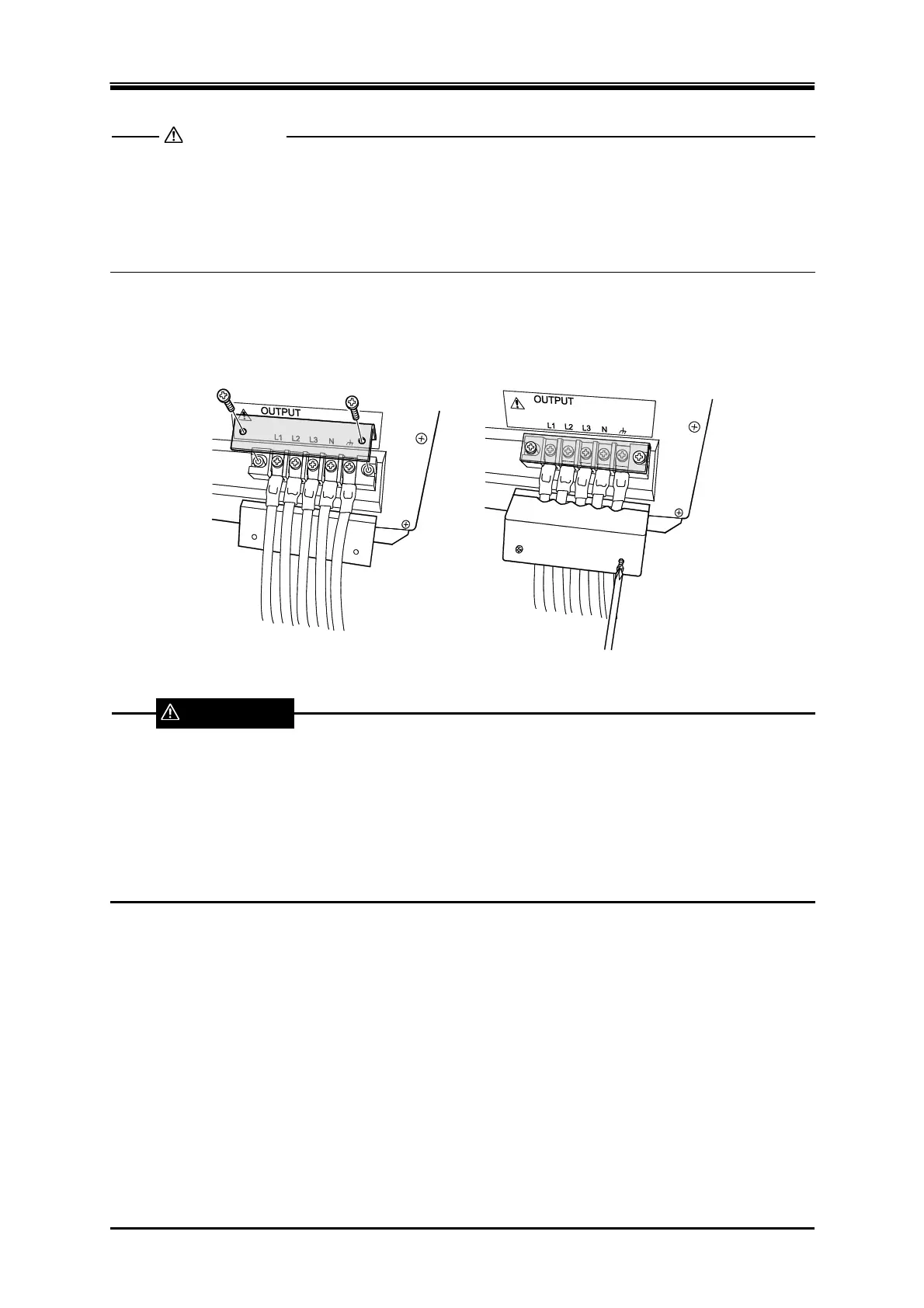

Attach the resin-molded terminal cover and the cable holder (option). Direct the folded part of
the resin-molded terminal cover to the upper side of the product.
Do not use this product when the resin-molded terminal cover is removed. Otherwise, an electric
shock might occur.
Use enough thick cables to prevent touching live conductive parts after attaching the
resin-molded terminal cover. If a thin cable is connected, fingers may enter the gap between the
resin-molded terminal cover and the cable, resulting in electric shock, therefore attach some
additional guards.
