NF DP Series - Figure 2-3 Power Input Terminal

2.4 Grounding and Power Connections
DP Series/DP Series Type R
21

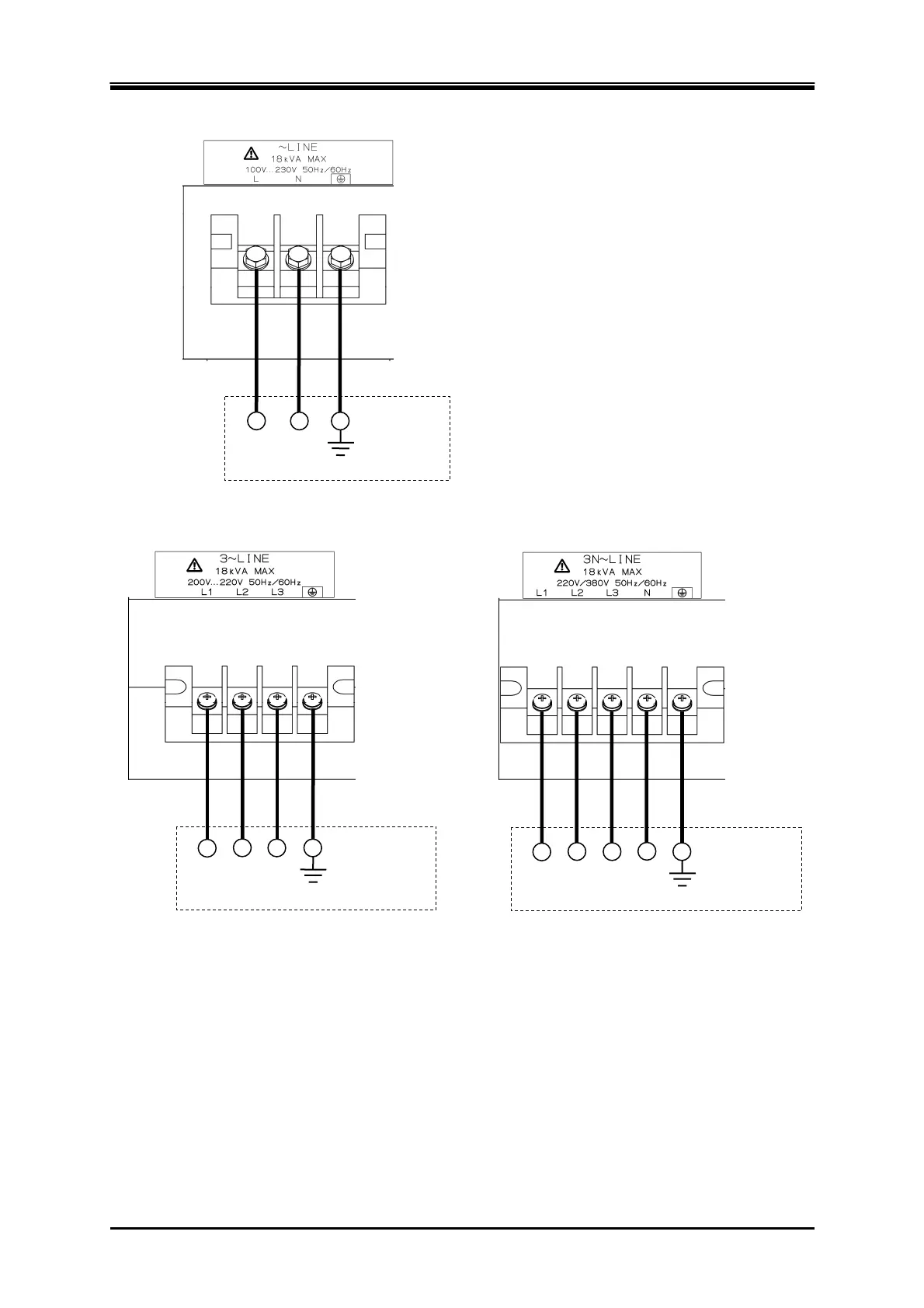

Figure 2-3 Power Input Terminal
Note: The figure shows the panel notation of the DP120S.
L1 L2 L3 N
Distribution board
(Protective grounding)
Distribution board
(Protective grounding)
Power input three-phase three-wire Power input three-phase four-wire
L N
Distribution board
(Protective grounding)
Power input single-phase
L1 L2 L3
