2.2 About Installation Environment
DP Series/DP Series Type R
13
Install the product on a sturdy place.
 The floor needs to have enough strength to support the weight of this product. The mass of DP
series is shown in Table 2-4. Also the mass of DP series Type R is shown in Table 2-5.

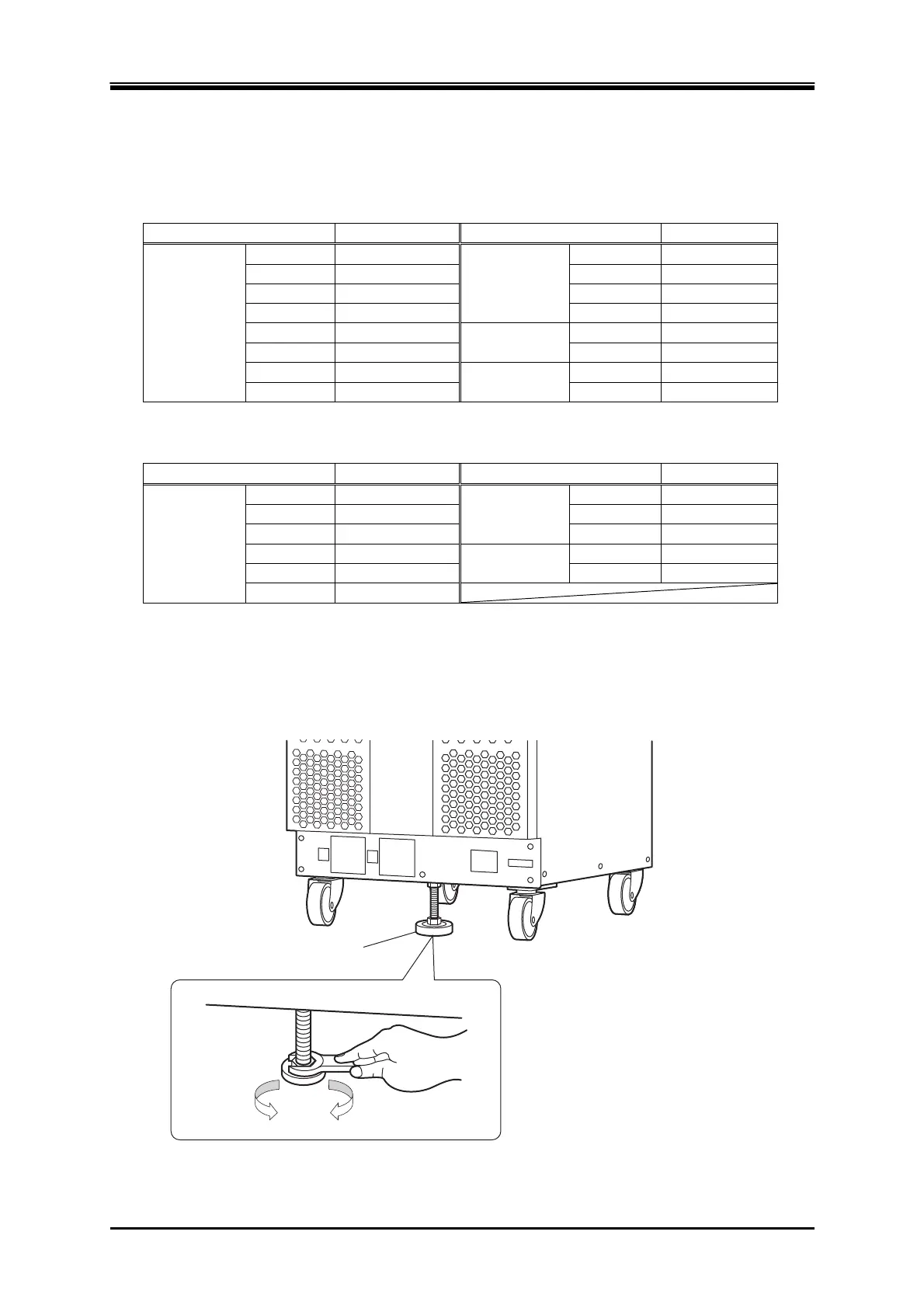

Table 2-4 Mass of DP series
Model Mass Model Mass
Single-phase
DP015S
38 kg approx.
Single-phase
three-wire
DP030D
50 kg approx.
DP030S
50 kg approx.
DP060D
82 kg approx.
DP045S
70 kg approx.
DP090D
122 kg approx.
DP060S
82 kg approx.
DP120D
155 kg approx.
DP075S
110 kg approx.
Three-phase
DP045T
70 kg approx.
DP090S
125 kg approx.
DP090T
125 kg approx.
DP105S
140 kg approx.
Multi-phase
DP045M 75 kg approx.
DP120S
155 kg approx.
DP090M 130 kg approx.
Table 2-5 Mass of DP series Type R
Model Mass Model Mass
Single-phase
DP015RS
50 kg approx.
Single-phase
three-wire
DP030RD
80 kg approx.
DP030RS 80 kg approx. DP060RD 130 kg approx.
DP045RS
90 kg approx.
DP090RD
170 kg approx.
DP060RS
130 kg approx.
Three-phase
DP045RT
90 kg approx.
DP075RS
150 kg approx.
DP090RT
170 kg approx.
DP090RS
170 kg approx.
 Do not install this product on a sloped surface. The Adjuster Foot is only for temporary fixing,
and cannot support the unit's own weight. You also must not lean on this product or use it as a
support. How to use the Adjuster Foot is shown in Figure 2–1.
Adjuster Foot
The Adjuster Foot can be moved up by
rotating it counterclockwise and moved
down by rotating it clockwise as viewed
from above.
Use an open-end wrench of 19 mm
width.
Down
Up
Figure 2-1 How to Use the Adjuster Foot
