NF DP Series - Cable Holder; Figure 7-3 Assembly Diagram of Cable Holder; Table 7-4 Cable Holder Model Names

7. Options
PROGRAMMABLE AC POWER SOURCE
244
7.6 Cable Holder
This option is used to fix the power cable or output cable. It can be requested at the time of order or
added after the purchase. The different cable holders are used for each model. Please refer to the
correspondence table (Table 7-5).
Table 7-4 Cable Holder Model Names
Model name Product name Identification number
PA-001-3245 Cable holder 1
PA-001-3246 Cable holder 2
PA-001-3247 Cable holder 3
PA-001-3248 Cable holder 4
PA-001-3249 Cable holder 5
The contents are as follows. Refer to Figure 7-3 and assemble the cable holders.
① Cable holder (base) ·································································· 1 pc
② Cable holder (holder) ································································ 1 pc
③ Screws for base (with spring lock washer, cross recessed pan head) ········· 2 pcs
④ Screws for holder (cross recessed binding head) ································ 2 pcs

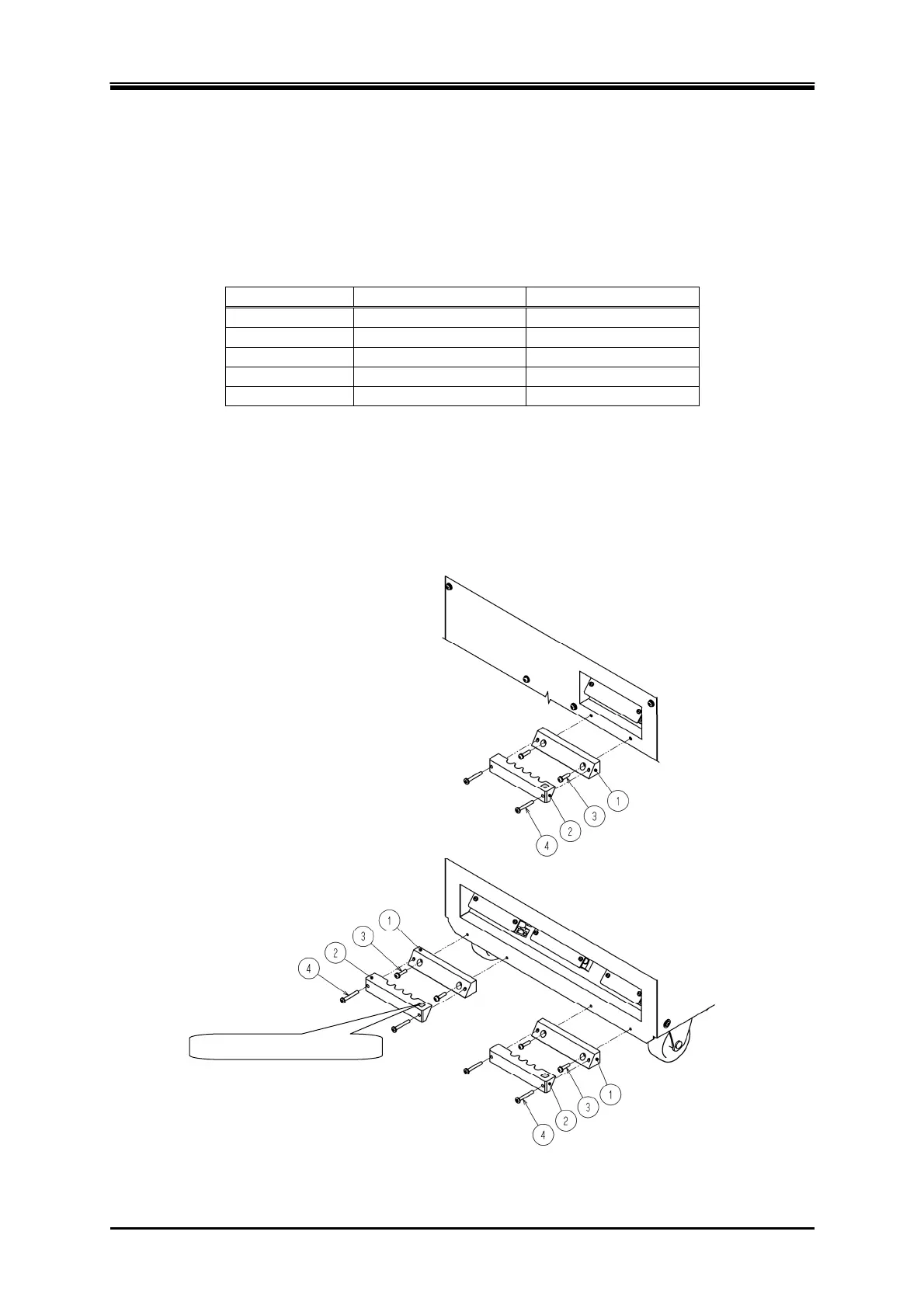

Figure 7-3 Assembly Diagram of Cable Holder
Power input side
Identification numbe
r
(
1 to 5
)
Output side
Polyphase output side
(Only for multi-phase model)
