9.2 Daily Maintenance
DP Series/DP Series Type R
263

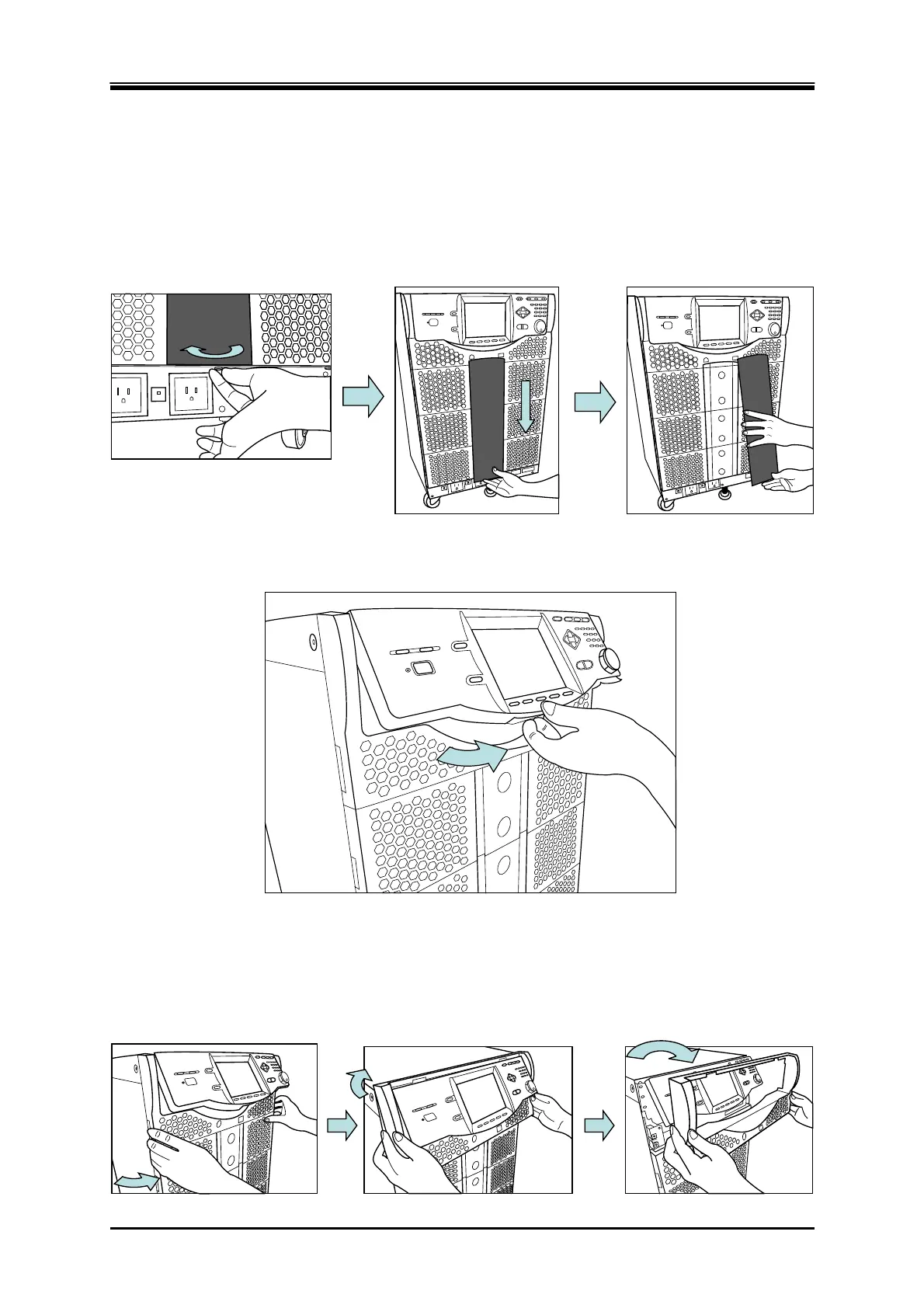

The air filters can be removed by the steps described below. In order to remount them later, check
on the top and bottom of the front grill and the mounting position of the air filters as you remove
them.
1.
Loosen the screw at the bottom of the front grill holder by turning it clockwise. Slide the front
grill holder downward to dismount it.
2.
Flip up the control panel to its maximum angle.
3.
Dismount the front grills in turn from the top. The topmost front grill is fixed at the bottom left
and right to the chassis, and hung at the top on the hook of the chassis. Hold the front grill at the
bottom left and right sides, and pull it out toward you to release it. Move the front grill upward
and toward you. Unhook and remove it as letting the control panel through it.
