2. Preparation before Use
PROGRAMMABLE AC POWER SOURCE
30

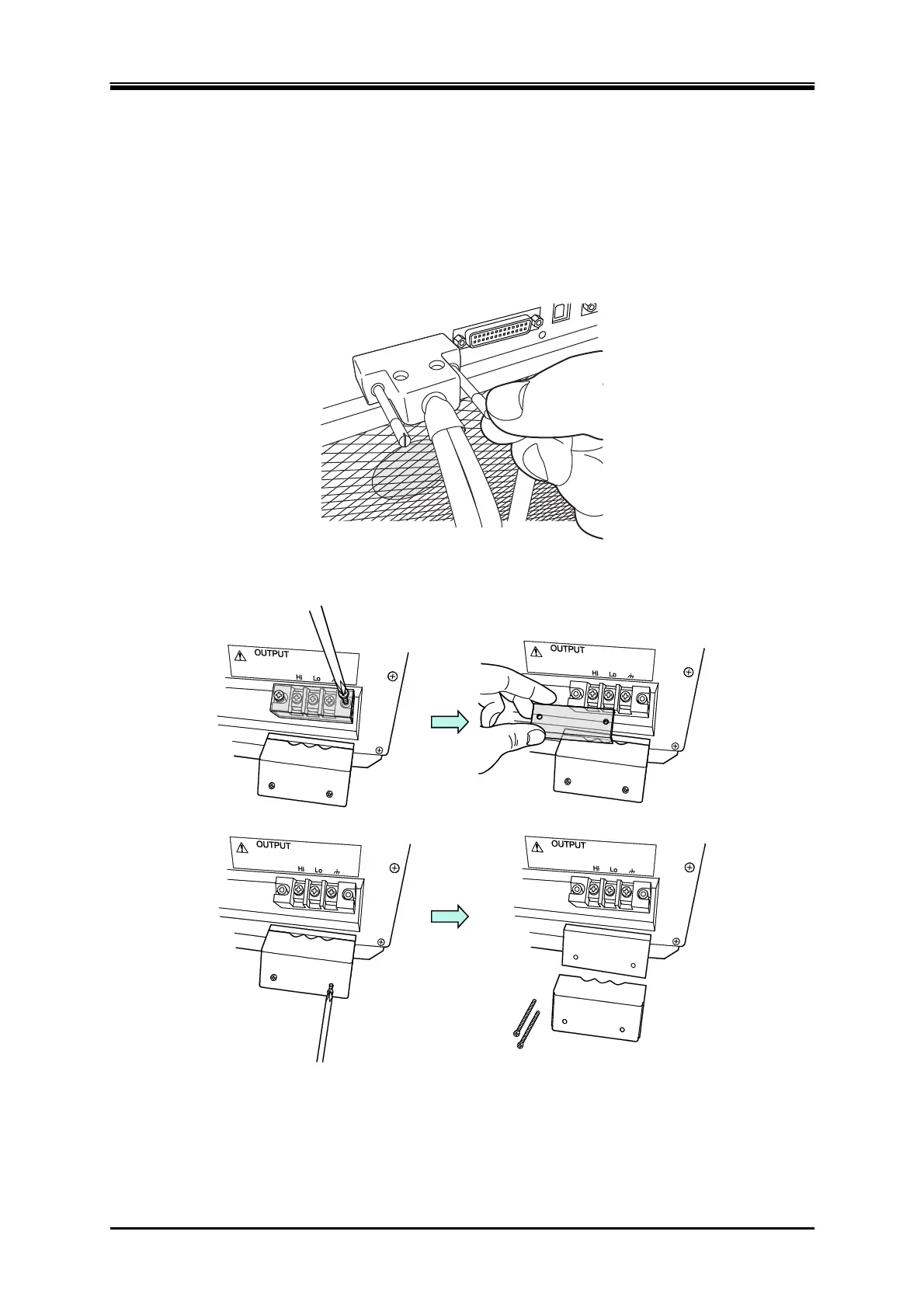

Connection procedure
The figure in the following procedure is the figure when using the cable holder (option). For cable
holder installation, see 7.6.
1.
Connect the connector L1 of the System Cable to the SYSTEM I/O connector of the cabinet
which is to be L1 phase. Also connect the L2 and L3 connectors in the same way.
SYSTEM I/O
CONTROL I/O
2.
Remove the resin-molded output terminal cover and the cable holder (option) of each cabinet.
To Next Page
