Nikon DTM-330 - Page 67

3-39
3
STN
When you take a distance measurement to
the BS on FACE1, you can go to the
FACE2 measurement by just flipping the
telescope.
After taking measurements on both faces,
the delta screen will be displayed.
[3:CP] will records the averaged HA/VA/
SD from F1/F2 data.
Press the [3] or [4]/[ENT] key to record
the station and return to the BMS.

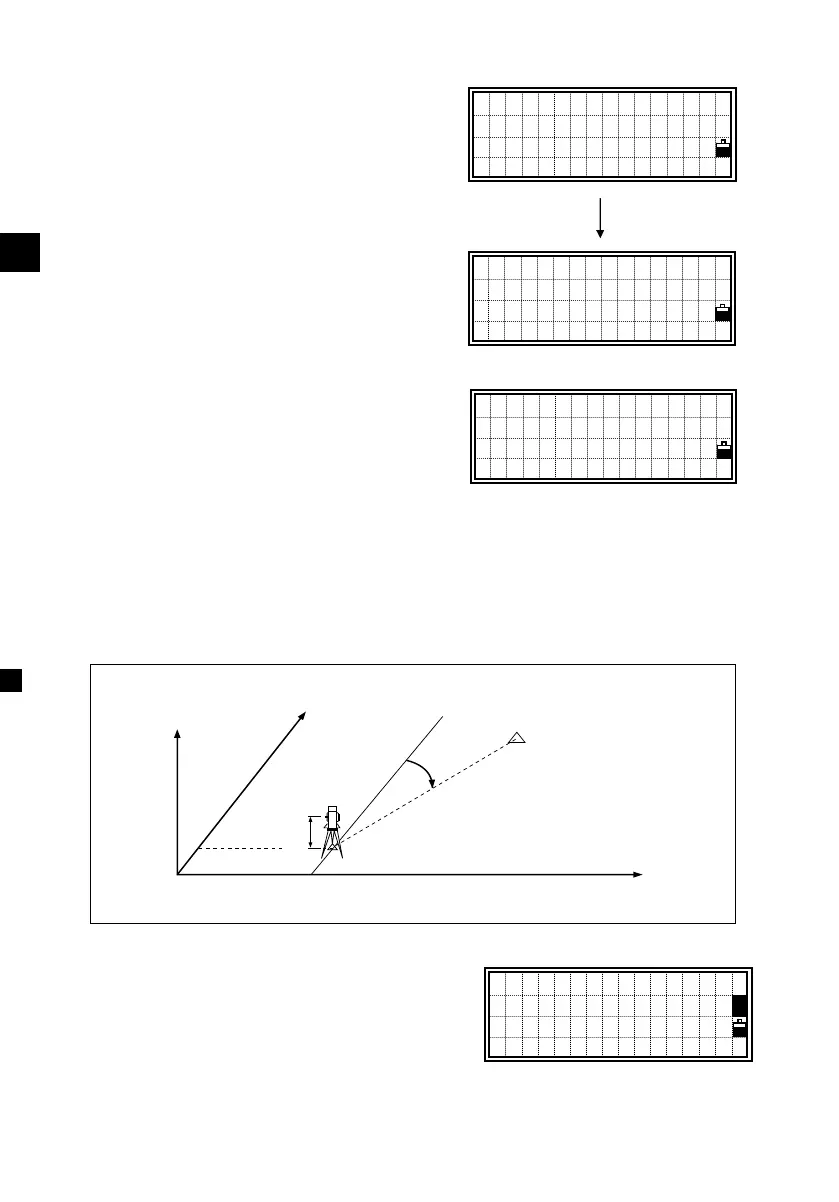

1:Known → 2:Angle
Sighting the BS (backsight) point by inputting azimuth
The BS point input screen.
If you don’t use any point name for the BS,
just press the [ENT] key at a blank PT.
Z
Y
X0
X
Y0
Station point
(Xi, Yi, Zi)
Backsight point
Instrument height
Azimuth
Ｓｉｇｈｔ ＢＳ ｏｎ Ｆ２
ＡＺ：１２３°４５’５０”
ＨＤ： ８７．９５７７ｍ
ＳＴＮ１／２
ｄＨＡ： ０°００’２１”
ｄＶＡ： ０°００’４３”
ｄＳＤ： ０．００６３ｍ
Ａｂｒｔ ＣＰ ＯＫ
[ENT]/[REC]
－ ＲＥＣ ＳＴＮ －
Ｊｏｂ：ＰＲＯＪ５８２
Ｉｎｐｕｔ ＢＳ Ｐｏｉｎｔ
ＰＴ：
■
ＨＴ： １．６２８０ｍ
ＣＤ：
