3-53
3
S-O
Advise the rodman to adjust the prism
position. When the target is on the
intended position, the displayed errors
become 0.0000 m/ft.
dHA: Difference in Horizontal angle to the target point
R/L: Right/Left (Lateral error)
IN/OUT: In/Out (Longitudinal error)

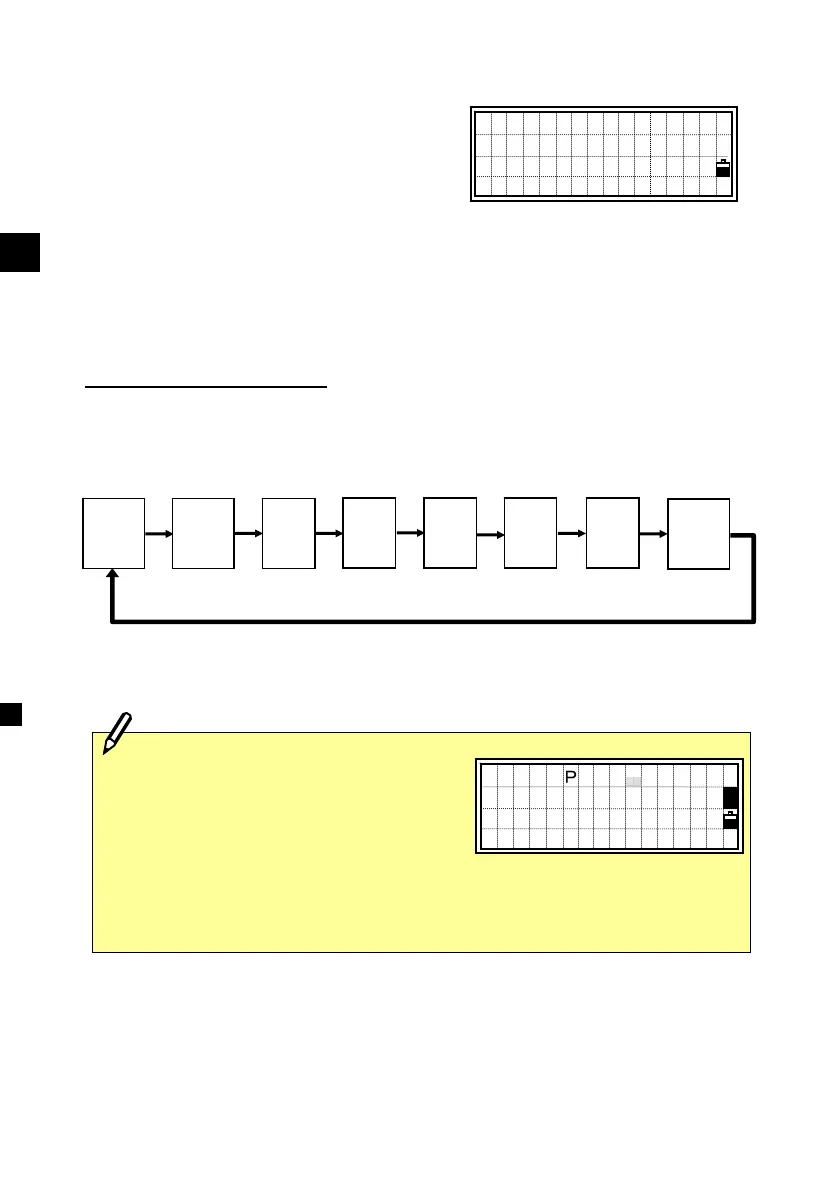

Switching screen by [DSP]
When the Secondary unit is set, one more screen (HD/VD/SD) is added.
Although the indication like S-O1/8 is not displayed, the [DSP] key
works exactly the same as in the Angle-Distance stakeout.
(*) Contents in these three screens can be customized by holding
down [DSP] key for one second. (See p.3-21)
ｄＨＡ← ０°００’０５”
Ｒ ← ０．００１ ｍ
ＯＵＴ↑ ０．００６ ｍ
ＰＴ：５０２
･“Add Constant” can be changed by
pressing [9: S-O] key from any of
the observation screens. (See
p.3-92)
･Once a measurement is taken, the Cut/Fill and Z-coordinate will be
updated as the VA is changed.
Ａｄｄ Ｐｔ ：１０００
dHA←
R ←
OUT↑
R ←
OUT←
CUT↑
HA:
VA:
SD:
dN:
dE:
dZ:
rSD:
rVD:
rHD:
(*) (*)
X:
Y:
Z:
HA:
VD:
HD:
HL:
V%:
HD:
(*)
