Electrical System
11-6
Part 1079832_04
E 2015 Nordson Corporation
Connecting Adhesive Manifold Cordsets
Connect adhesive manifold cordsets as appropriate for your application.
Refer to Table 11‐1 and Figure 11‐6 for a typical installation configuration
Table 11-1 Typical Adhesive Manifold Cordset Connections
Item in
Figure 11-6
Component Connect to...
1
First adhesive manifold
cordset
Extension cable (item 2)
2
Extension cable First adhesive manifold cordset (item 1) and to adapter cable
(item 3)
3 Adapter cable Extension cable (item 2) and to electrical receptacle on melter
(item 6)
4
Second adhesive
manifold cordset
Hose connector
5 Hose cordset Electrical receptacle on melter (item 6)
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
(1) First adhesive
manifold cordset
(2) Extension
cable
(3) Adapter cable
Hose
Melter
Applicator
(4) Second adhes
ive
manifold cordset
(5) Hose cordset
(6) Melter elec
trical receptacle

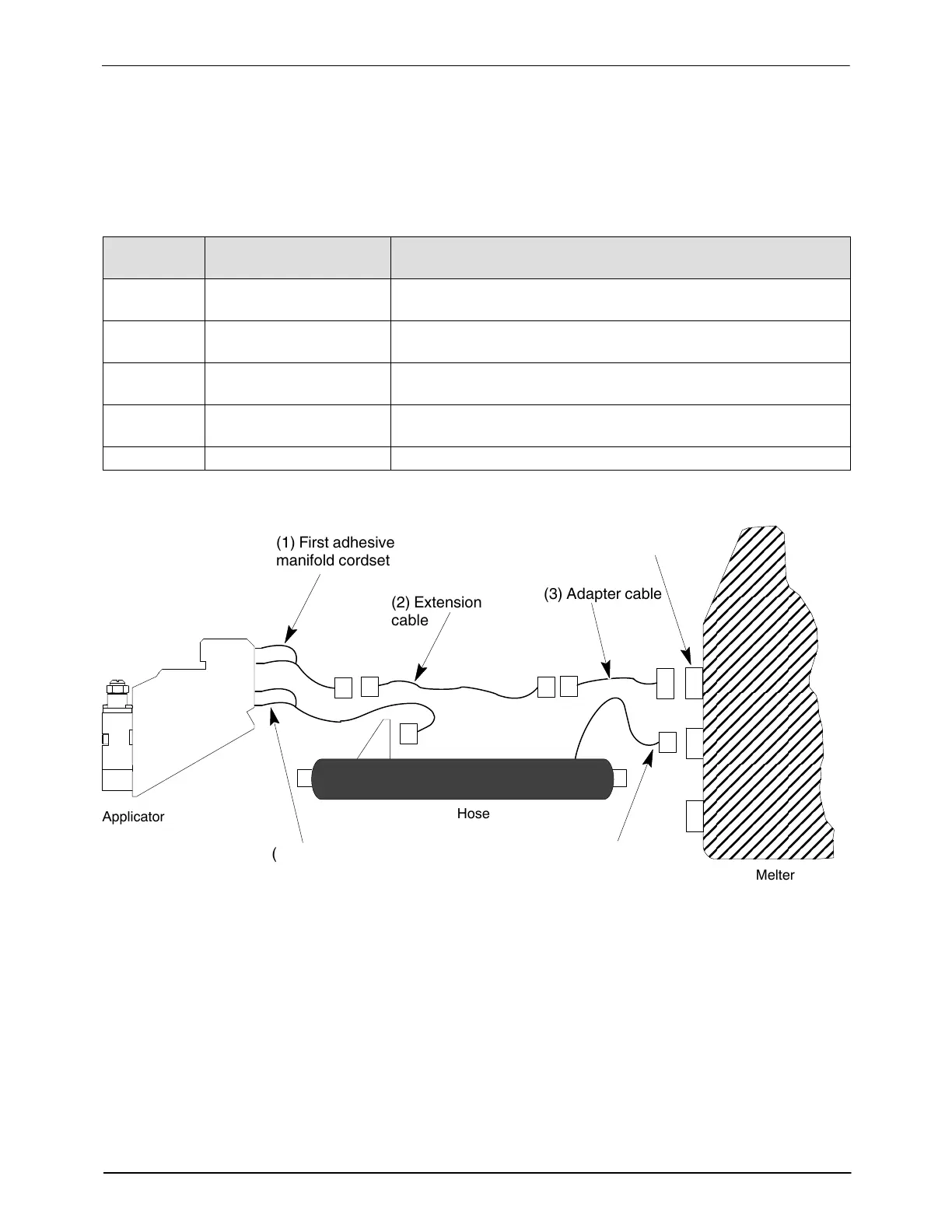

Figure 11-6 Typical adhesive manifold cordset connections
1. First adhesive manifold cordset
2. Extension cable
3. Adapter cable
4. Second adhesive manifold cordset
5. Hose cordset
6. Melter electrical receptacle
