Nordson Universal Series User Manual

Parts
8-3
Part 1079832_04
E 2015 Nordson Corporation
Optional Accessories
To optimize the performance of your system, Nordson Corporation
recommends these optional accessories.
Pressure Regulators/Gauges
See Figure 8‐5.
Item Part Description Quantity Note
— 1020683 Pressure regulator/gauge assembly, 0–15 psig AR
— 1020684 Pressure regulator/gauge assembly, 0–30 psig AR
— 1020748 Pressure regulator/gauge assembly, 0–50 psig AR
1 ‐ ‐ ‐ ‐ ‐ ‐ S Regulator, pressure 1
2 ‐ ‐ ‐ ‐ ‐ ‐ S Gauge, pressure 1
3 ‐ ‐ ‐ ‐ ‐ ‐ S Bushing, pipe, hydraulic,
1
/
2
x
1
/
8
in. 1
4 ‐ ‐ ‐ ‐ ‐ ‐ S Nipple, steel, schedule 40,
1
/
8
in., 1.5 in. long 1
AR: As Required
2
1
3
4

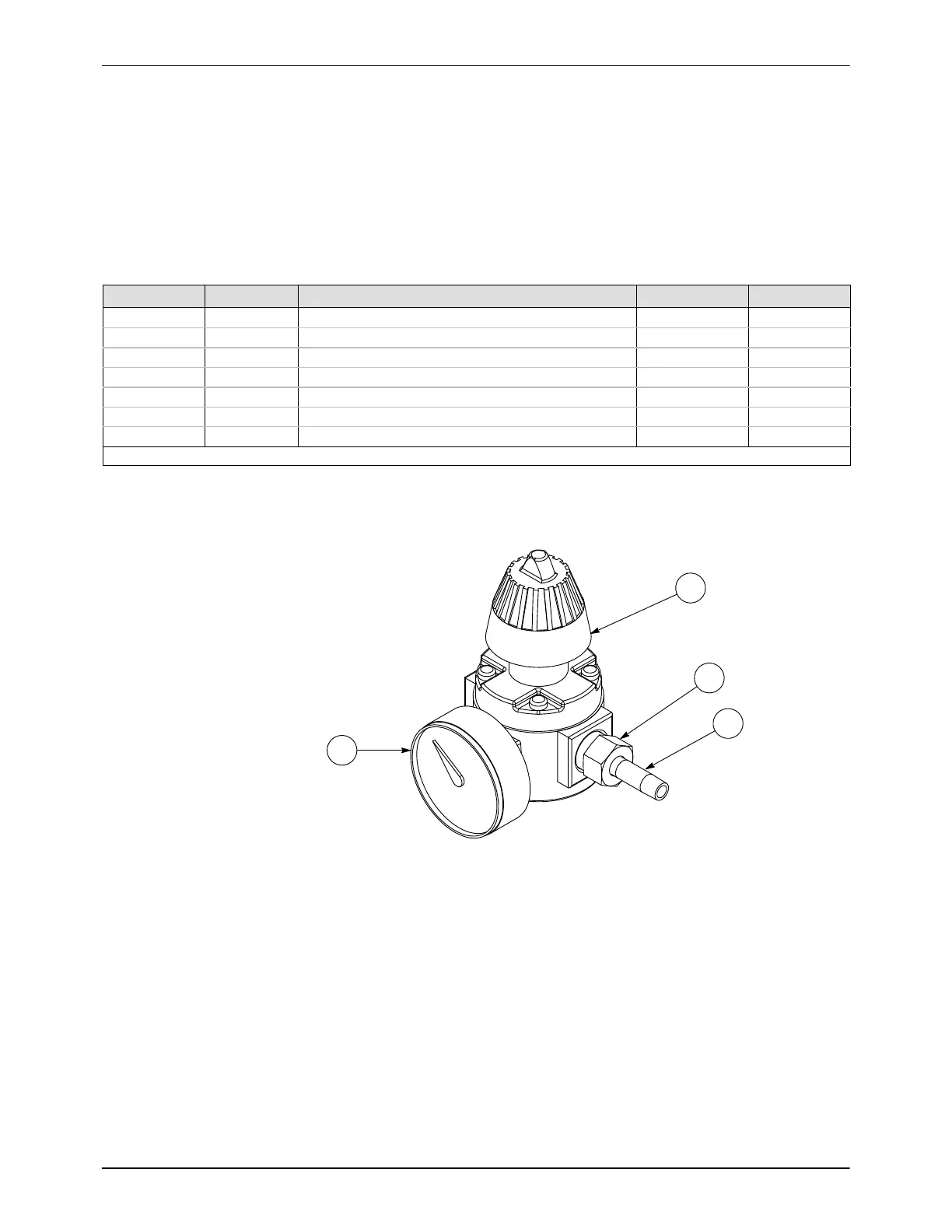

Figure 8-5 Pressure regulator/gauge assembly parts
