Parts

8-4

Part 1079832_04

E 2015 Nordson Corporation

Pattern Air Control Kits

See Figure 8‐6. Cables must be ordered separately. Refer to the next parts

list, Pattern Air Control Kit Cables.

Part Description Note

1036518 Kit, pattern air control, 4–20 mA, 0–3.5 bar A

1056192 Kit, pattern air control, 4–20 mA, 0–1 bar A

1036520 Kit, pattern air control, 0–10 VDC, 0–3.5 bar A

1056193 Kit, pattern air control, 0–10 VDC, 0–1 bar A

NOTE A: Refer to the instructions provided with the kit for a complete parts list.

1/4 NPT OUTLET

1/4 NPT INLET

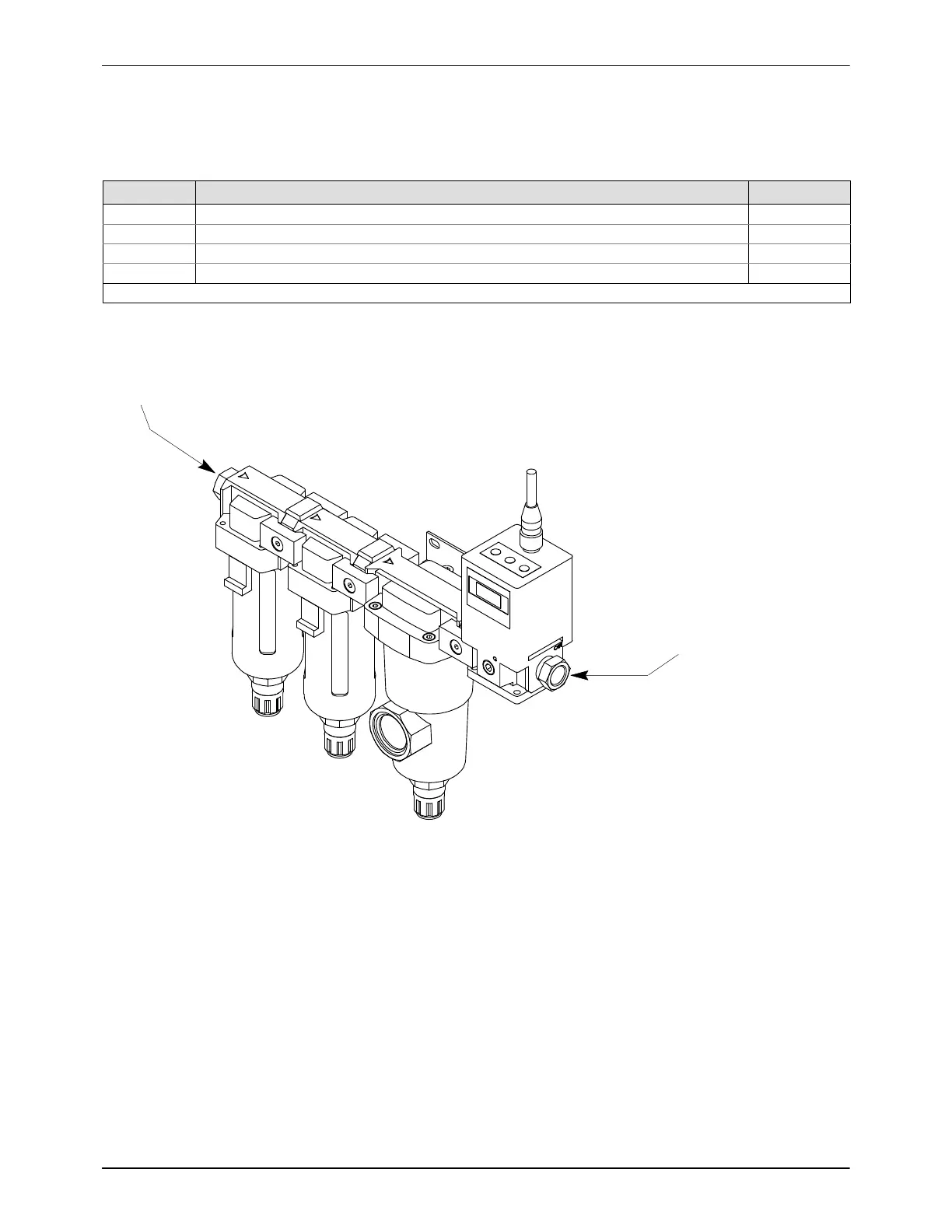

Figure 8-6 Pattern air control kit
