Nordson Universal Series User Manual

Module
9-16
Part 1079832_04
E 2015 Nordson Corporation
Nozzle‐Retaining Clamp Parts
See Figure 9‐11.
Item Part Description Quantity Note
— 1052926 Kit, nozzle‐retaining clamp assembly —
1 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Plate, retaining, clamp 1
2 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Clamp, nozzle‐retaining 1
3 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Screw, clamp, hex, M5 1
4 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Retaining ring, external, 18, E‐ring 1
5 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Pin, dowel, 0.0941 x 0.975 in. long 1
6 ‐ ‐ ‐ ‐ ‐ ‐ ‐ S Pin, dowel, 0.125 x 0.375 in. 2
6
1
5
3
2
4

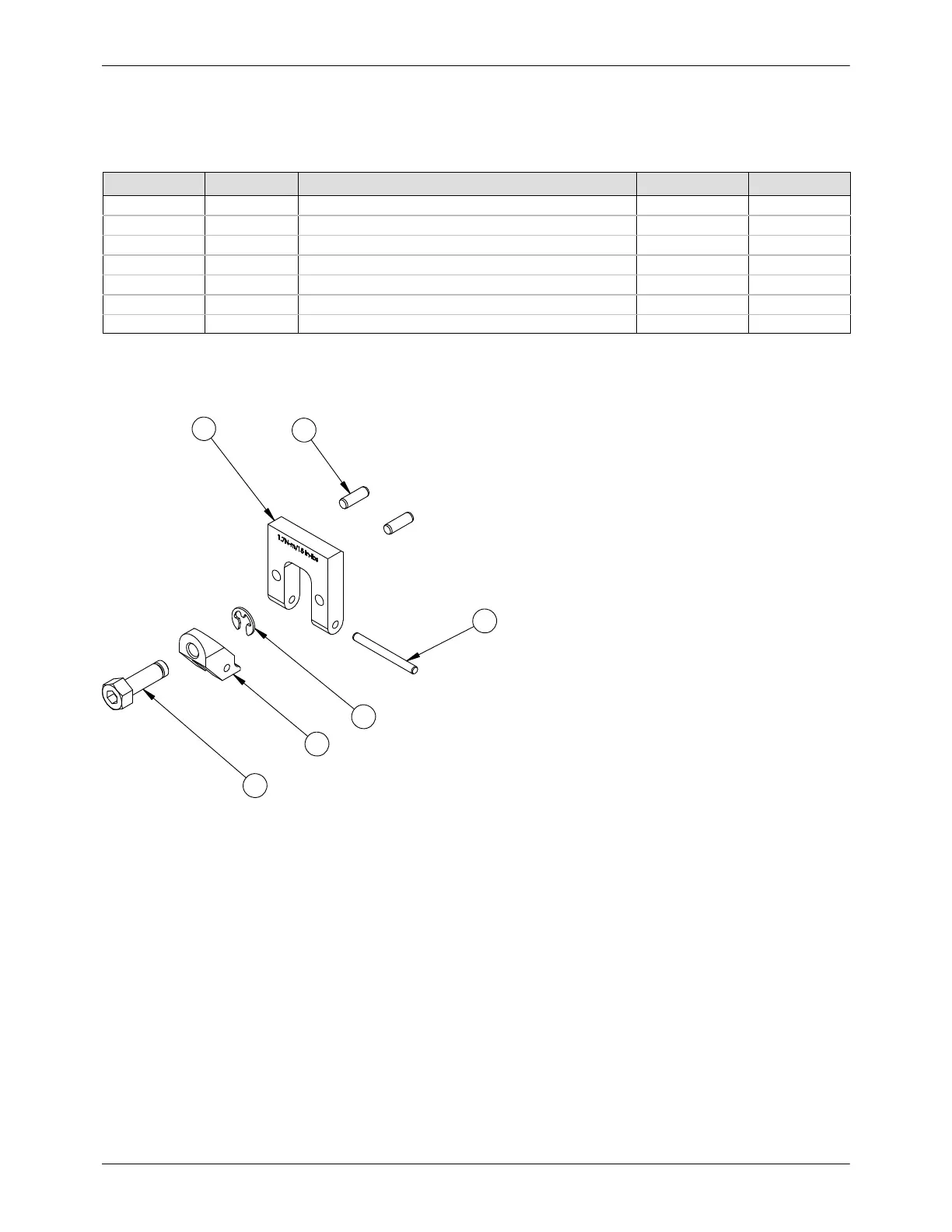

Figure 9-11 Nozzle-retaining clamp parts
