Install the Control Module
1. Wipe off any adhesive on the applicator, especially around the air
passages.
2. See Figure 9‐5. Apply high‐temperature lubricant (1) to the O‐rings on the
control module and (2) to the control module mounting screws (under the
screw head and on the threads).
NOTE: Nordson Corporation recommends high‐temperature PTFE
grease. Refer to Parts for the part number.

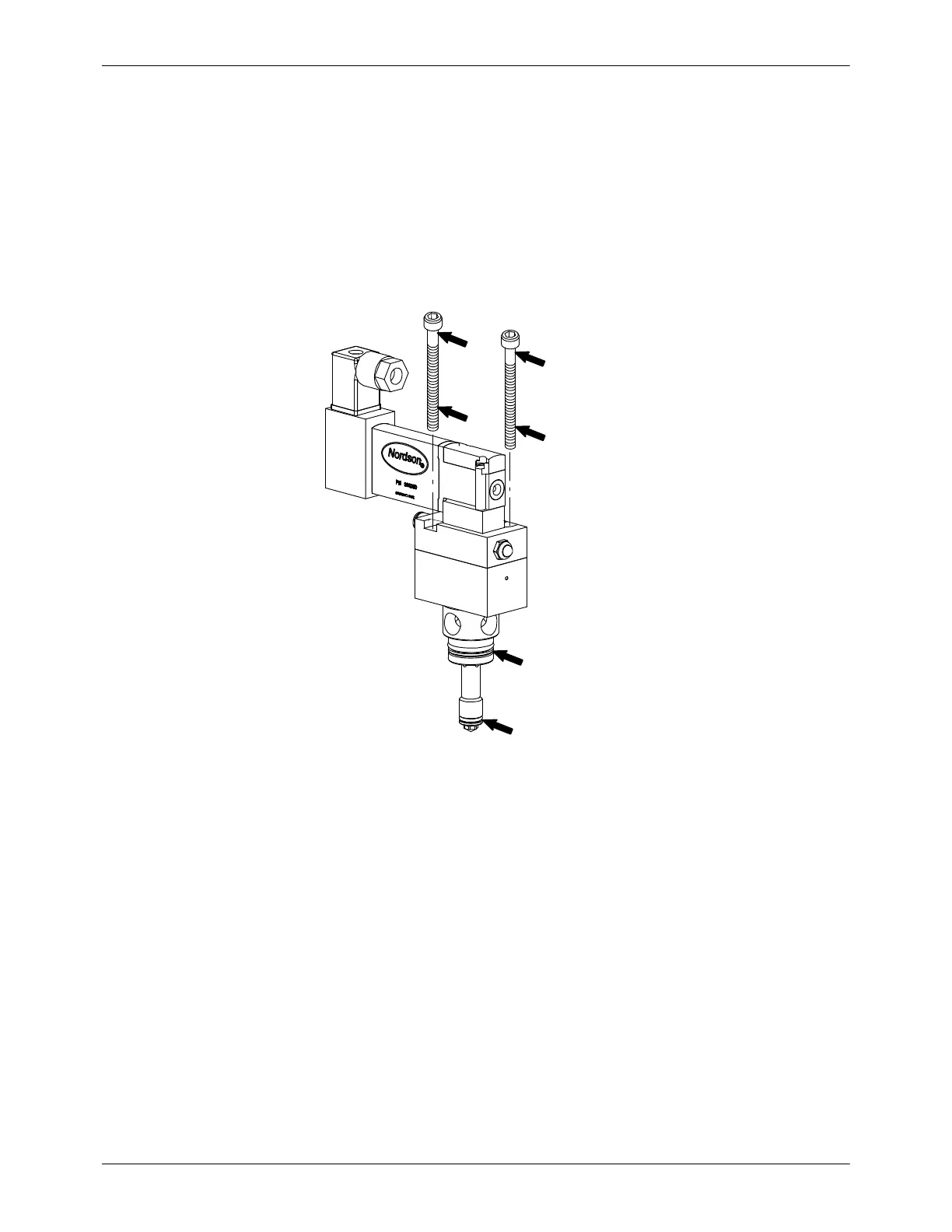

Figure 9-5 Speed-Coat control module lubrication points
