3. See Figure 9‐6. Insert the module and mounting screws in the applicator
body, ensure that the module is fully seated, and hand‐tighten the
mounting screws.
4. Using a torque wrench, tighten the screws alternately (from screw 1 to
screw 2, then back to screw1 and screw 2, and so on) in increments of
approximately 0.9NSm(8in.‐lb) until you reach a torque of
2.7NSm(24in.‐lb).
1
2

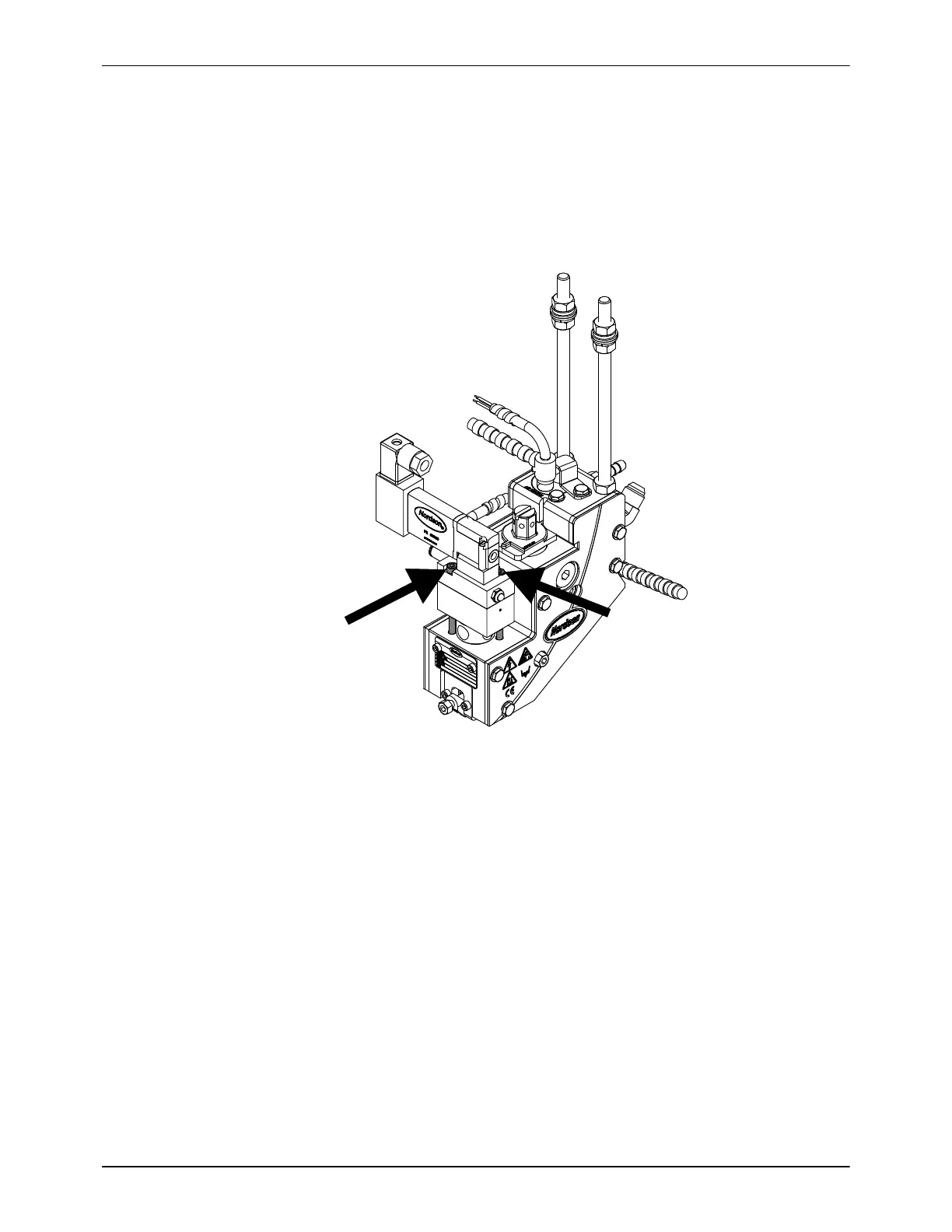

Figure 9-6 Alternately tightening the module mounting screws
5. Reconnect the module‐actuating air supply and solenoid valve electrical
connections.
6. Restore the system to normal operation.
