Nordson Universal Series User Manual

Electrical System
11-18
Part 1079832_04
E 2015 Nordson Corporation
Cordsets
See Figure 11‐14. The cordset and heater part numbers vary depending on
the configuration of the applicator. Refer to Table 11‐3.
Table 11-3 Cordset, Heater, and Sensor Part Numbers
Applicator
Manifold Width
Number of Cordsets Total Wattage
Adhesive Section Air Section Adhesive Section Air Section
50 mm 1 1 700 200
150 mm 1 1 700 400
275 mm 2 2 1400 800
Cordsets
M‐Style Cordset Part Numbers
(PT100 RTD)
T‐Style Cordset Part Numbers
(Ni120 RTD)
Manifold Width Adhesive Section Air Section Adhesive Section Air Section
50 mm 1074135 1051011 1074136 1050984
150 mm 1074135 1068075 1074136 1068070
275 mm 1074135 1068075 1074136 1068070
Heaters Heater Part Numbers Heater Wattage, Each
Manifold Width Adhesive Section Air Section Adhesive Section Air Section
50 mm 1074133 1050950 700 200
150 mm 1074133 1068008 700 400
275 mm 1074133 1068008 700 400
Sensors
Sensor Part Numbers Sensor Resistance, Nominal
M‐Style, PT100 RTD T‐Style, Ni120 RTD M‐Style, PT100 RTD T‐Style, Ni120 RTD
All 1061617 1009302 100 ohms 120 ohms
1
2
3

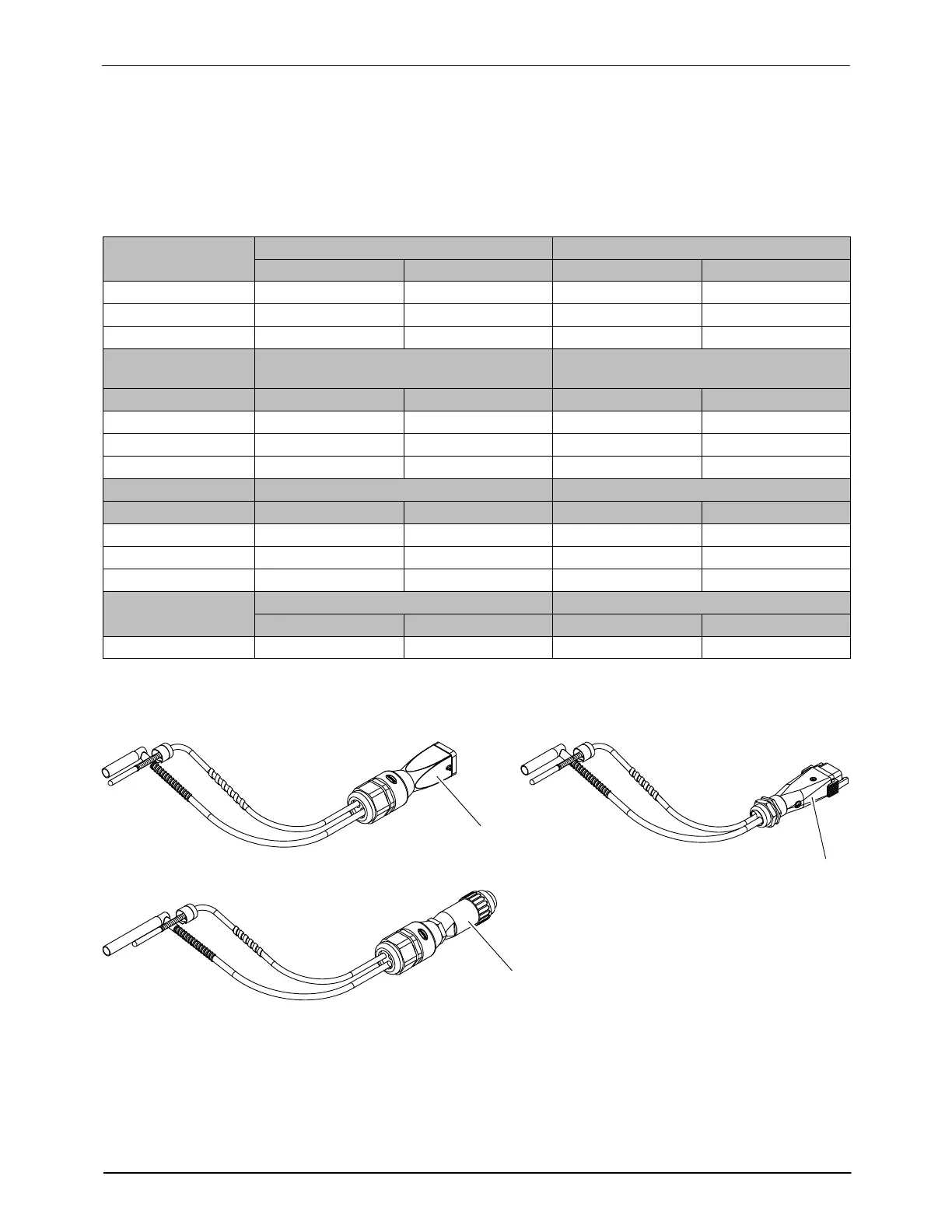

Figure 11-14 Cordsets
1. M‐style cordset (adhesive) 2. M‐style cordset (air) 3. T‐style cordset
