Connect the Pattern Air
See Figure 3‐4. Use the clamp (2) and tubing (3) from the ship‐with kit to
connect a supply of dry, regulated, unlubricated air to the pattern air inlet
fitting (1). To determine where the pattern air inlet on your applicator is
located, refer to the applicator reference drawing in Applicator‐Specific
Reference Drawings in Section8, Parts.
Nordson Corporation recommends installing an air pressure regulator and
filter in the pattern air supply line that is capable of regulating the pattern air
pressure up to a 56.6 nlm (2 scfm) flow rate per module. For the pattern air
pressure operating range, refer to Applicator Specifications in Section9,
Module.
NOTE: Nordson Corporation offers a selection of pressure regulators and air
run‐up kits. An air run‐up assembly allows the pattern‐air flow to follow the
production line speed. Refer to Section 8, Parts, for part numbers.
1
2
3

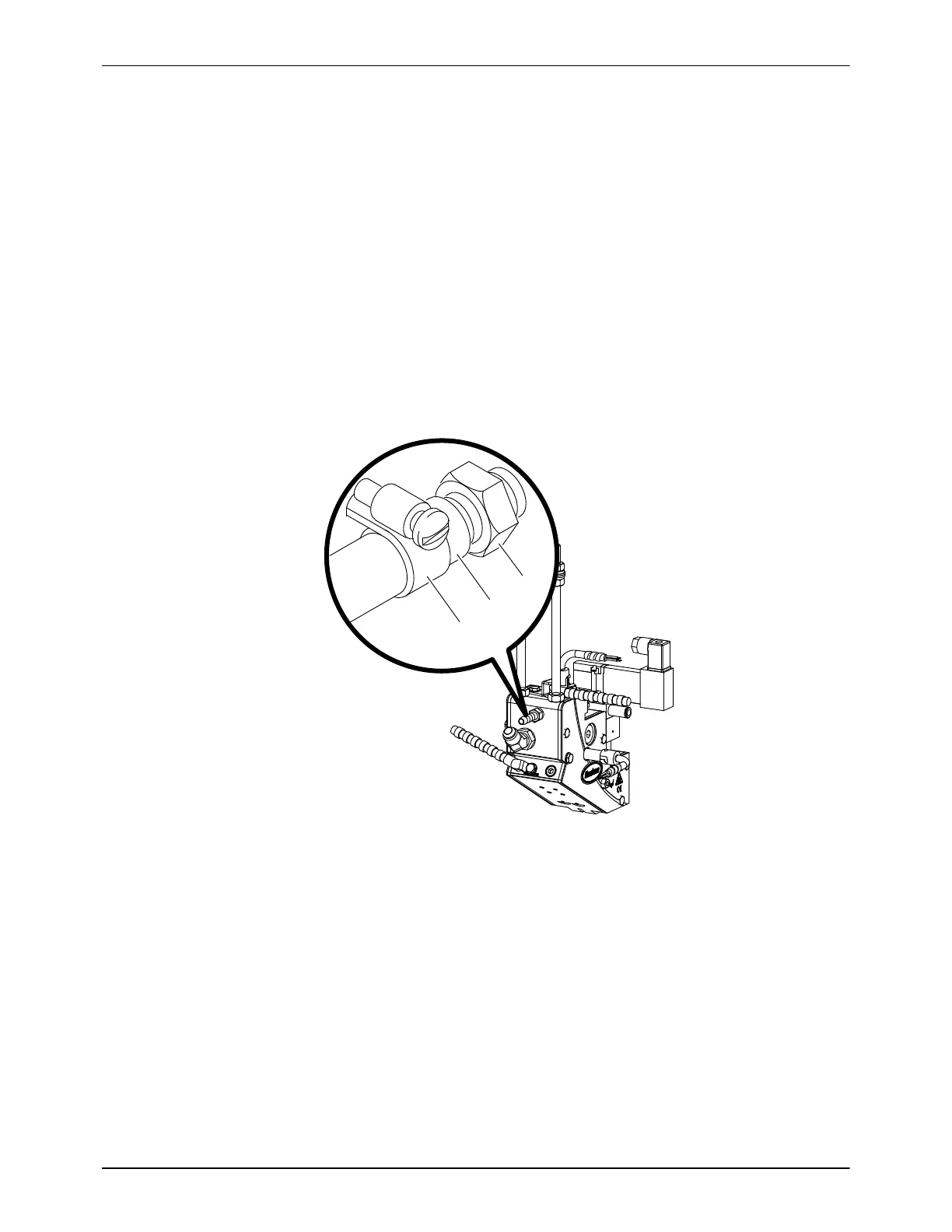

Figure 3-4 Pattern air supply connection (typical)
1. Fitting
2. Tubing
3. Clamp
