Nordson Universal Series User Manual

Electrical System
11-3
Part 1079832_04
E 2015 Nordson Corporation
M‐Style Adhesive Manifold Cordset

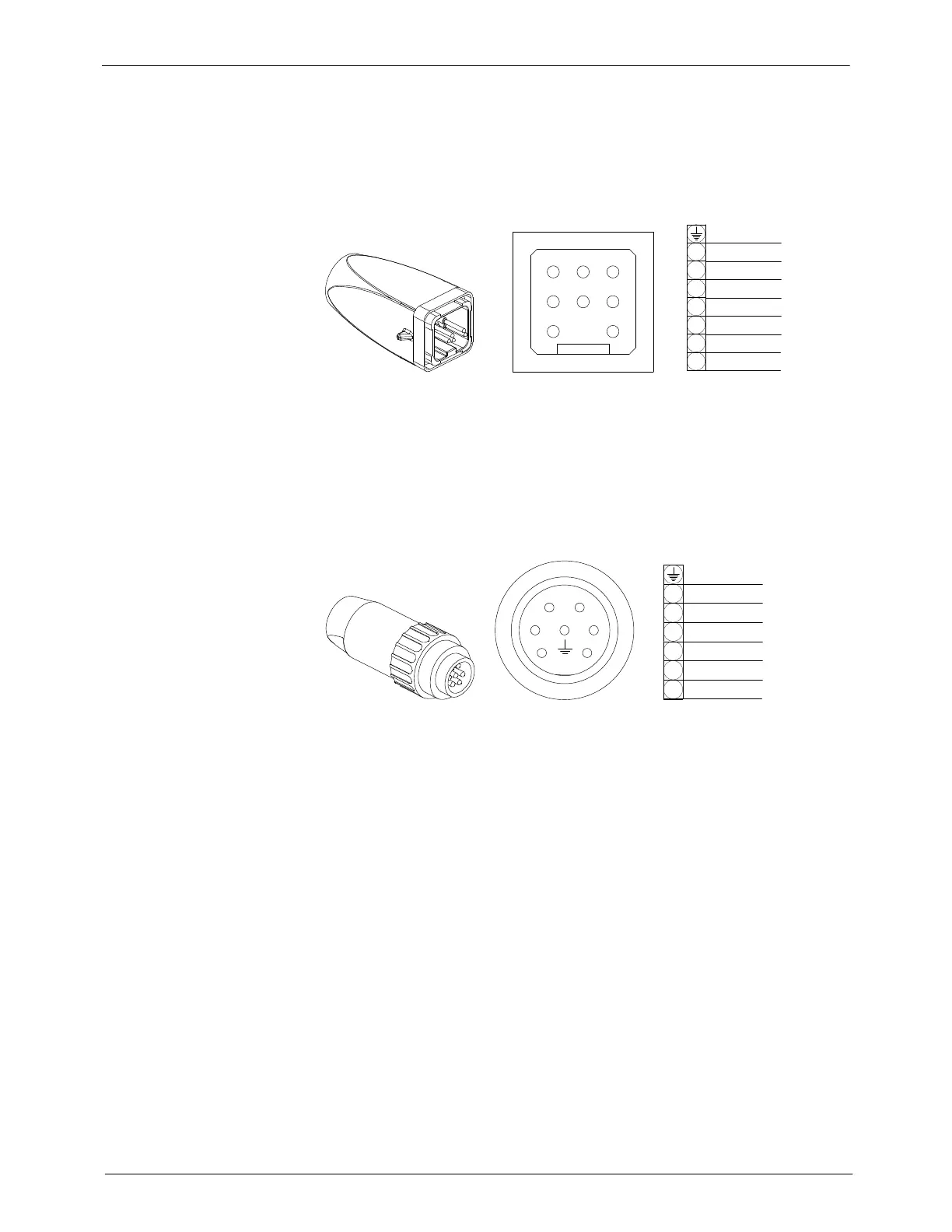

See Figure11‐3. The adhesive manifold cordset has a square 8‐pin male
connector that connects to an 8‐pin female connector on a hose or an
extension, splitter, or adapter cable.
GND
7
6
5
4
3
2
1
3
4
5
2
1
HEATER
HEATER
GROUND
SENSOR
6
SENSOR
7
Figure 11-3 M-style adhesive manifold cordset connector
M‐Style Heated Air Manifold Cordset
See Figure 11‐4. The heated air manifold cordset has a round 7‐pin male
connector that connects to a 7‐pin female connector on an extension, splitter,
or adapter cable.
3
4
5
2
1
HEATER
GROUND
SENSOR
6
SENSOR
6
5
4
3
2
1
HEATER
Figure 11-4 M-style heated air manifold cordset connector
