Nordson Universal Series User Manual

Parts
8-5
Part 1079832_04
E 2015 Nordson Corporation
Pattern Air Control Kit Cables
See Figure 8‐7.
Item Part Description Quantity Note
1 1059045 Cable, regulator, air control, 10 m AR
1 1059041 Cable, regulator, air control, 20 m AR
1 1058993 Cable, regulator, air control, 30 m AR
2 1059046 Cable, regulator, air control, 30 m, bare end AR
3 1053125 Connector, 4‐conductor, air control AR A
NOTE A: For best results use a four‐conductor, 24 AWG, shielded conductor cable (Belden cable no. 9534 or
equivalent) with this connector.
AR: As Required
PIN
2
3
4
WIRE
RED
WHITE
BLACK
WHITE
BLACK
RED
WIRE
3
2
1
PIN
1
PIN
WHITE
BLACK
RED
WIRE
3
2
1
2
PIN
WHITE
BLACK
RED
WIRE
3
2
1
3

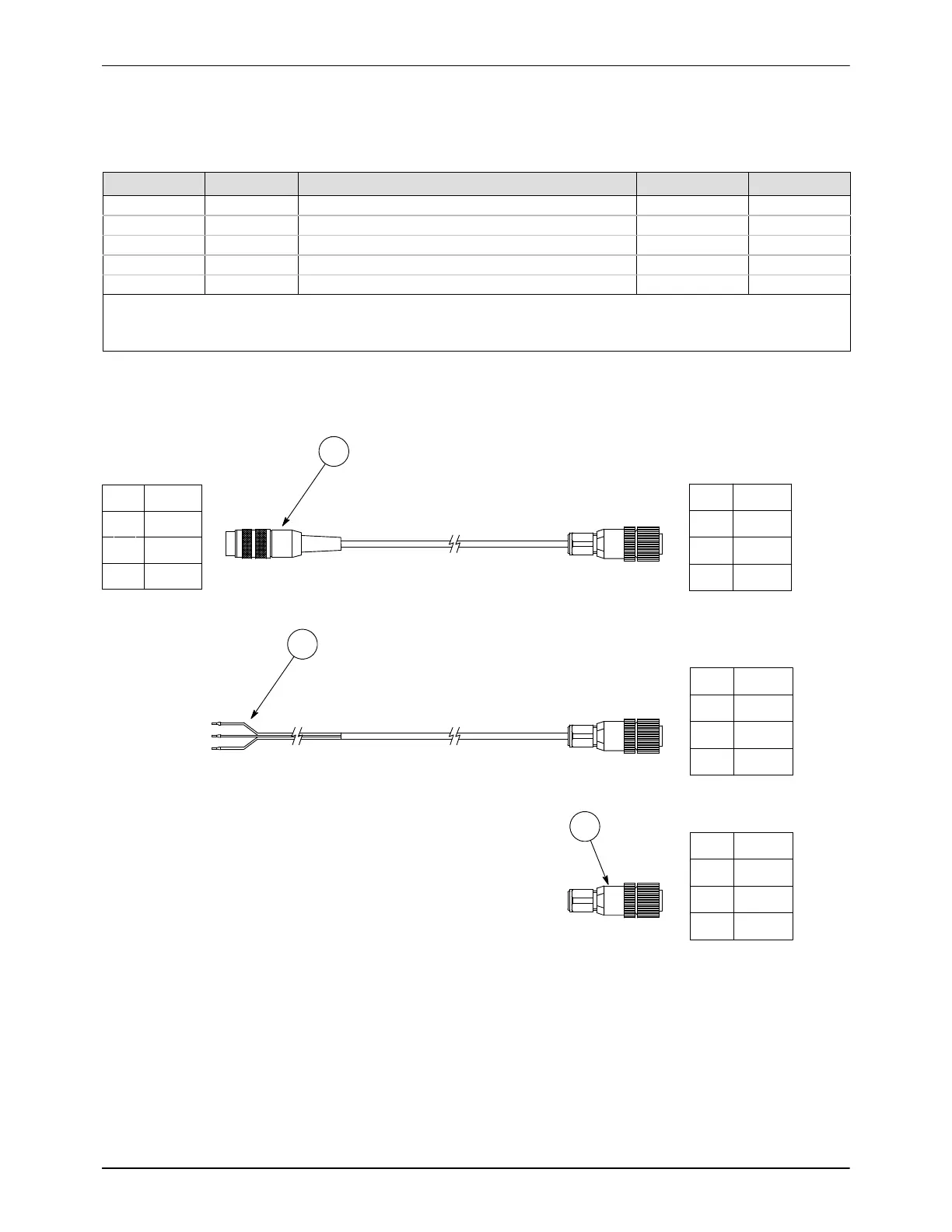

Figure 8-7 Cables for PACK kits
