Electrical System
11-22
Part 1079832_04
E 2015 Nordson Corporation
M‐Style Extension Cables
See Figures 11‐18 and 11‐19. These extension cables can be used to
connect adapter and splitter cables and/or hose and applicator cordsets to
the electrical receptacles on the melter.
Part Description Note
265217 Extension cable, M‐style, adhesive manifold cordsets, 5 m (16.4 ft)
261411 Extension cable, M‐style, adhesive manifold cordsets, 7 m (23.0 ft)
268242 Extension cable, M‐style, adhesive manifold cordsets, 8 m (26.2 ft)
264467 Extension cable, M‐style, adhesive manifold cordsets, 10 m (32.8 ft)
446703 Extension cable, M‐style, adhesive manifold cordsets, 12 m (39.4 ft)
265216 Extension cable, M‐style, adhesive manifold cordsets, 20 m (65.6 ft)
257676 Extension cable, M‐style, heated air manifold cordsets, 1 m (3.3 ft)
291519 Extension cable, M‐style, heated air manifold cordsets, 3 m (9.8 ft)
264934 Extension cable, M‐style, heated air manifold cordsets, 5 m (16.4 ft)
257675 Extension cable, M‐style, heated air manifold cordsets, 6 m (19.7 ft)
267579 Extension cable, M‐style, heated air manifold cordsets, 8 m (26.2 ft)
256259 Extension cable, M‐style, heated air manifold cordsets, 9 m (29.5 ft)
261743 Extension cable, M‐style, heated air manifold cordsets, 10 m (32.8 ft)
267067 Extension cable, M‐style, heated air manifold cordsets, 12 m (39.4 ft)
283427 Extension cable, M‐style, heated air manifold cordsets, 15 m (49.2 ft)
267066 Extension cable, M‐style, heated air manifold cordsets, 16 m (52.5 ft)
292242 Extension cable, M‐style, heated air manifold cordsets, 20 m (65.6 ft)
317676 Extension cable, M‐style, heated air manifold cordsets, 25 m (82.0 ft)
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

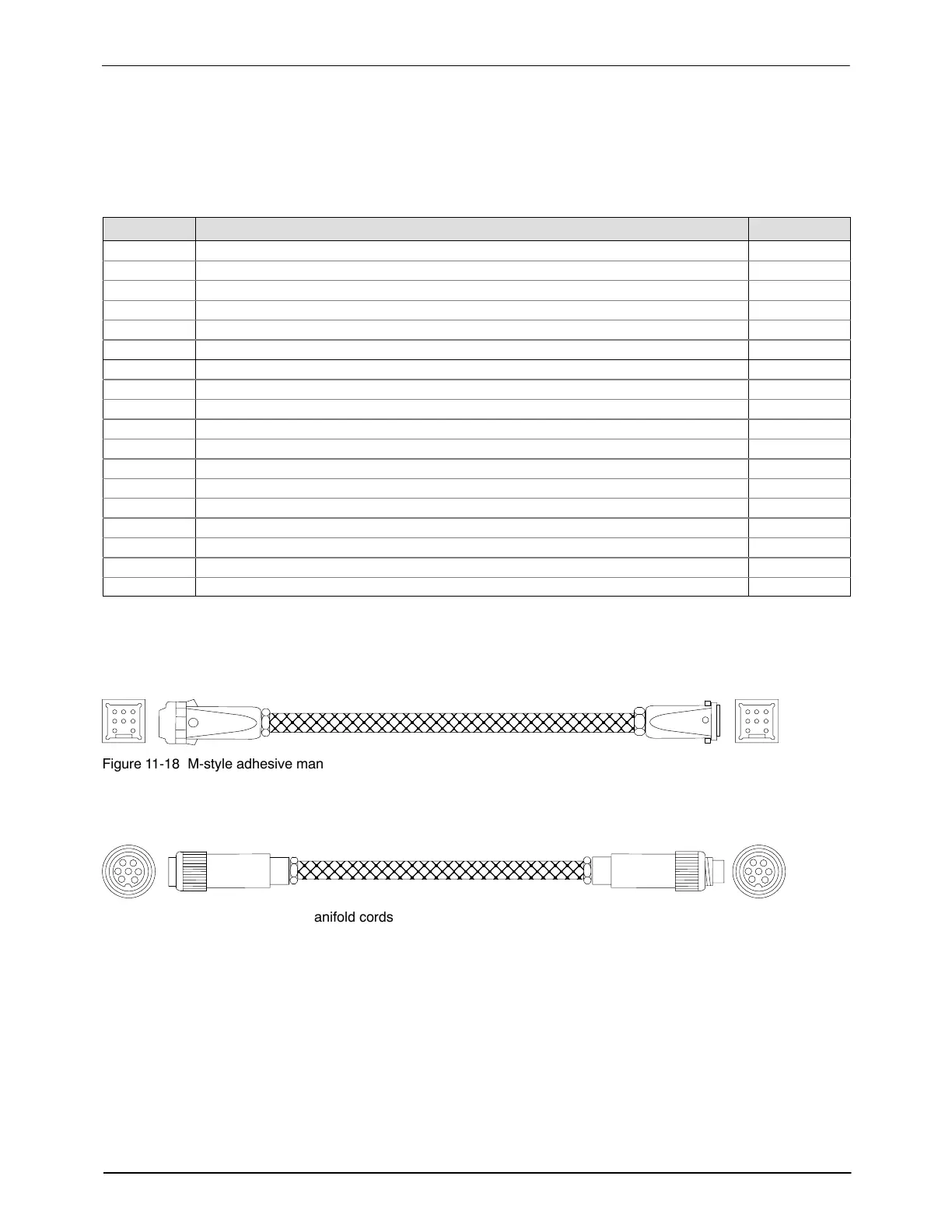

Figure 11-18 M-style adhesive manifold cordset extension cable
ÎÎÎÎÎÎÎÎÎÎÎÎÎ
Figure 11-19 M-style heated air manifold cordset extension cable
