Electrical System
11-16
Part 1079832_04
E 2015 Nordson Corporation
Replacing a Cordset (contd)
4. Reconnect the cordset.
5. Restore the system to normal operation.
1
2
3
6
4
1

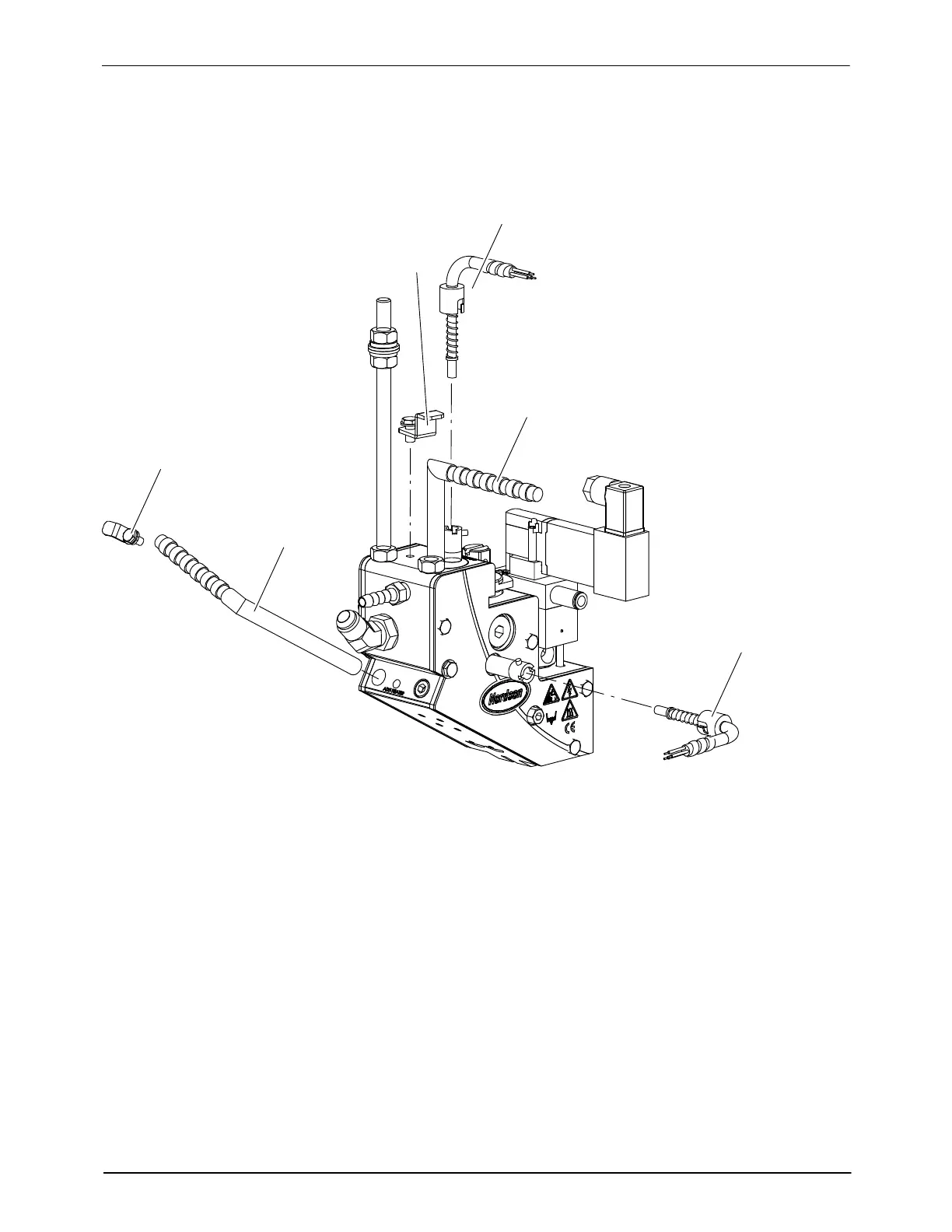

Figure 11-13 Replacing a cordset (single-module applicator shown; one mounting rod not shown for clarity)
1. Heater retainer and screw
2. Adhesive manifold heater
3. Adhesive manifold sensor
4. Heated air manifold heater
5. Heated air manifold sensor
Note: Some cordsets have two heaters.
