Nordson Universal Series User Manual

Electrical System
11-33
Part 1079832_04
E 2015 Nordson Corporation
1
2
3
4
5
67
1
2
3
4
5
6
7
Heater
Sensor
Solenoid valve
Ground

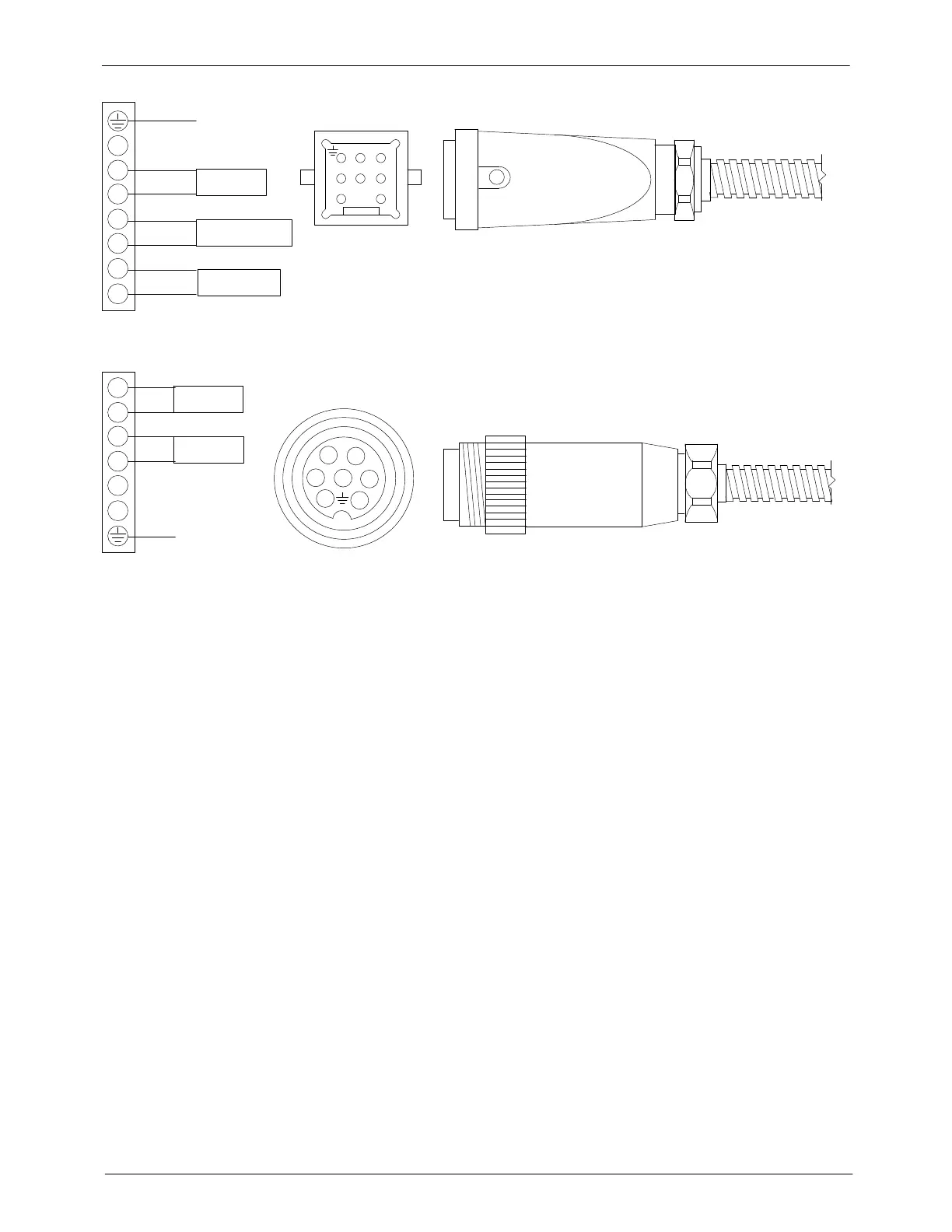

Figure 11-32 M-style adhesive manifold cordset extension cable wiring diagram
1
2
3
4
5
6
1
2
3
4
5
6
Heater
Sensor
Ground
Figure 11-33 M-style heated air manifold cordset extension cable wiring diagram
