Nortel 2004 - Telephone Display

About the Nortel IP Phone 2004
14
Telephone display
The LCD screen on the IP Phone 2004 has three display areas:
• The upper display area is for user-defined feature key labels.
• The middle display area is for single-line information such as caller
number, caller name, feature prompt strings, user-entered digits, date
and time (or call timer, if provisioned in the Telephone Options menu),
and telephone information.
• The lower display area is for context-sensitive soft key labels.

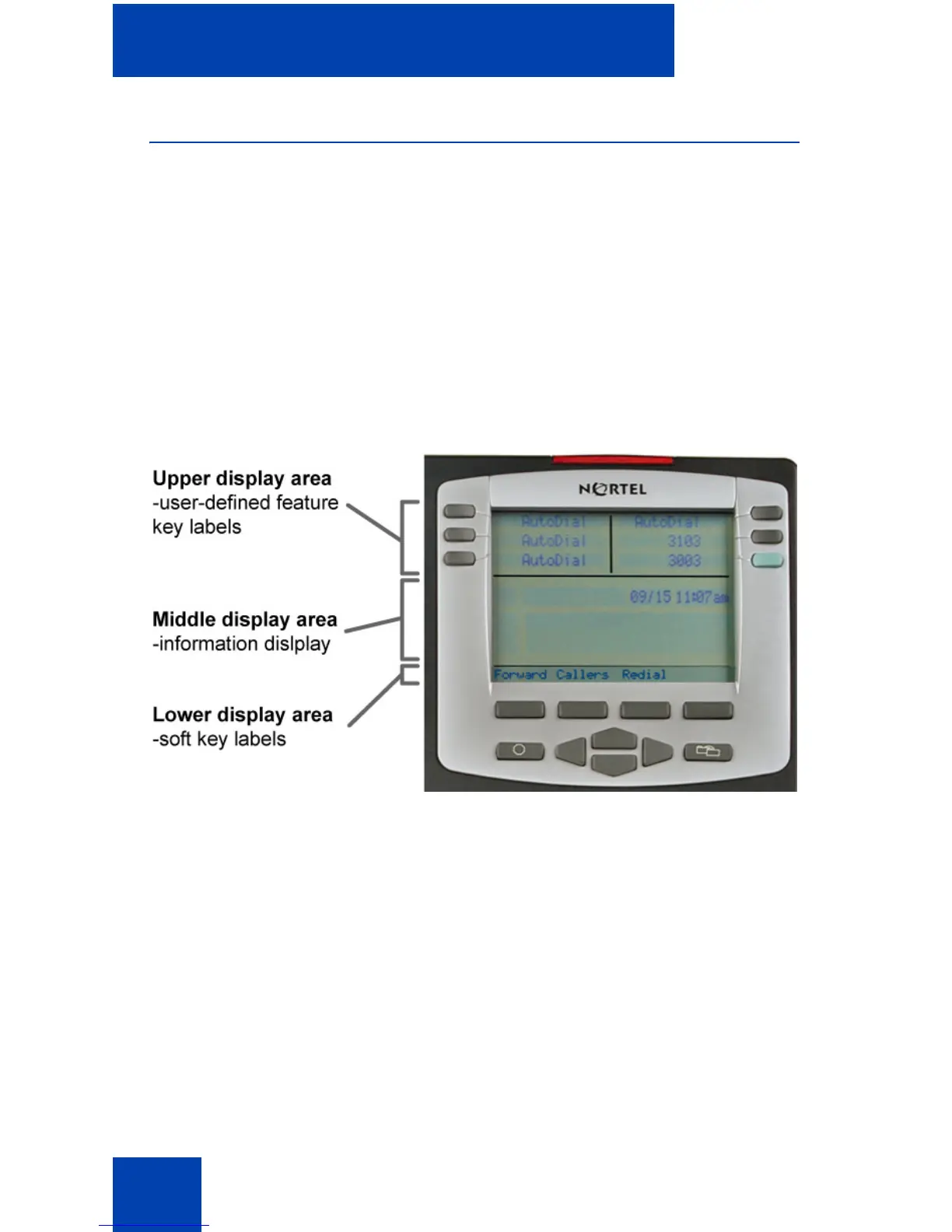

Figure 2: IP Phone 2004 LCD display areas
