Chapter 6. Preparing for Measurements
35

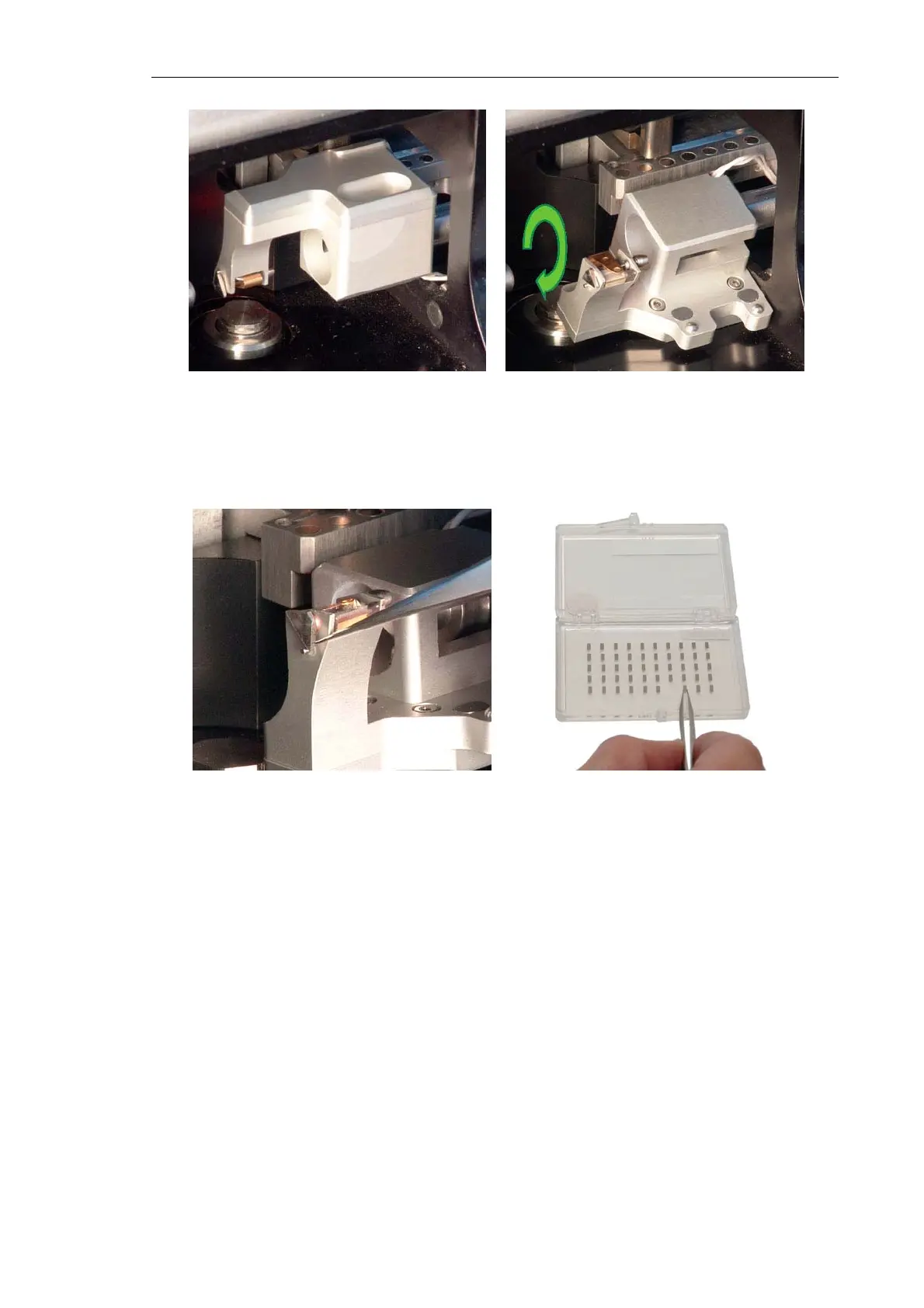

Fig. 6-13 Fig. 6-14
3. Release the probe clip spring by turning downward the trapezoidal lever, located on the
outer side of the holder body, with a tweezers (see Fig. 6-15).
Fig. 6-15 Fig. 6-16
4. Using tweezers, take a probe from the container (see Fig. 6-16). Probes in the container
are placed with their tips pointing upwards. Do not turn the chip over during the
installation.
5. Place the probe on the sapphire pedestal to the left of the working position
(see Fig. 6-17, Fig. 6-18) which is in the right corner under the clip.
