Fig. 6-17 Fig. 6-18

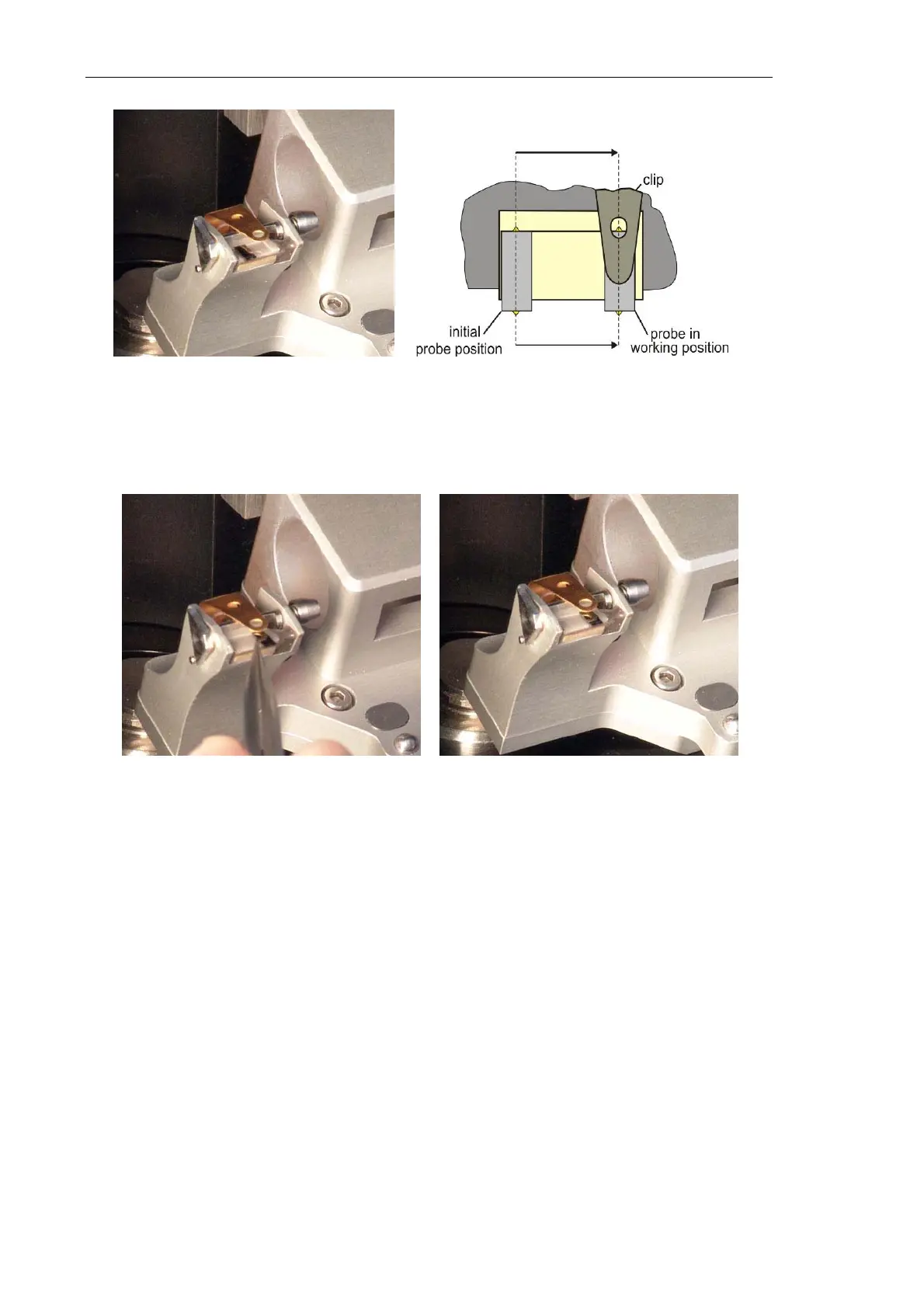

6. Move the probe with the tweezers to the working position (see Fig. 6-19) as shown
schematically in Fig. 6-18. The probe at its working position is shown in Fig. 6-20.
Fig. 6-19 Fig. 6-20
7. Once the probe is in the working position, clamp it with the clip by turning the lever
counterclockwise to extreme position with the tweezers (see Fig. 6-21).
8. Turn the measuring head to its working position manually (see Fig. 6-22).
translation with the tweezers
