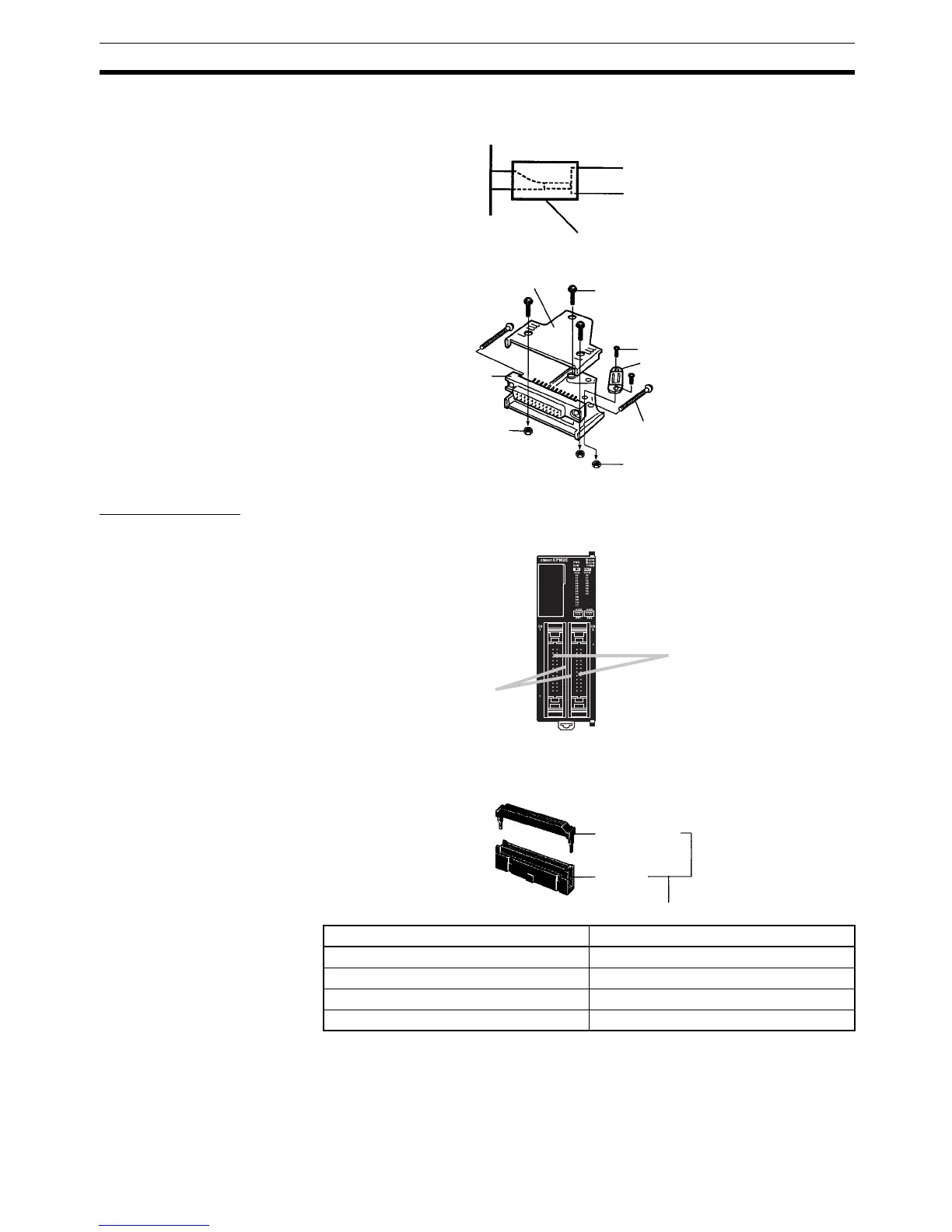

Wiring and Connections Section 3-4
2. After soldering all of the pins, slide the heat-shrink tubing over the soldered
power supply pins and shrink the tubing by heating it with a heat gun.
3. Assemble the socket and connector as shown in the following diagram.
MIL Connectors
The following tables provide specifications of compatible I/O connectors.
Compatible MIL Connector Specifications (OMRON)
MIL Flat Cable Connectors
Note The rated current for the flat cable is 1 A max. Do not allow the common termi-
nal current to exceed 1 A.
Heat-shrink tubing
Connector cover
Socket
Nuts (3)
Nuts (2)
Connector screw
s
Small screws (2)
Cable clamp
Small screws (3)
I/O connectors
Polarity slots
(notches)
Name Model
Socket XG4M-2030
Strain Relief XG4T-2004
Set model number XG4M-2030-T
Recommended Flat Cable XY3A-200@
Strain Relief
Socket
Set
