131
Wiring and Connections Section 3-4

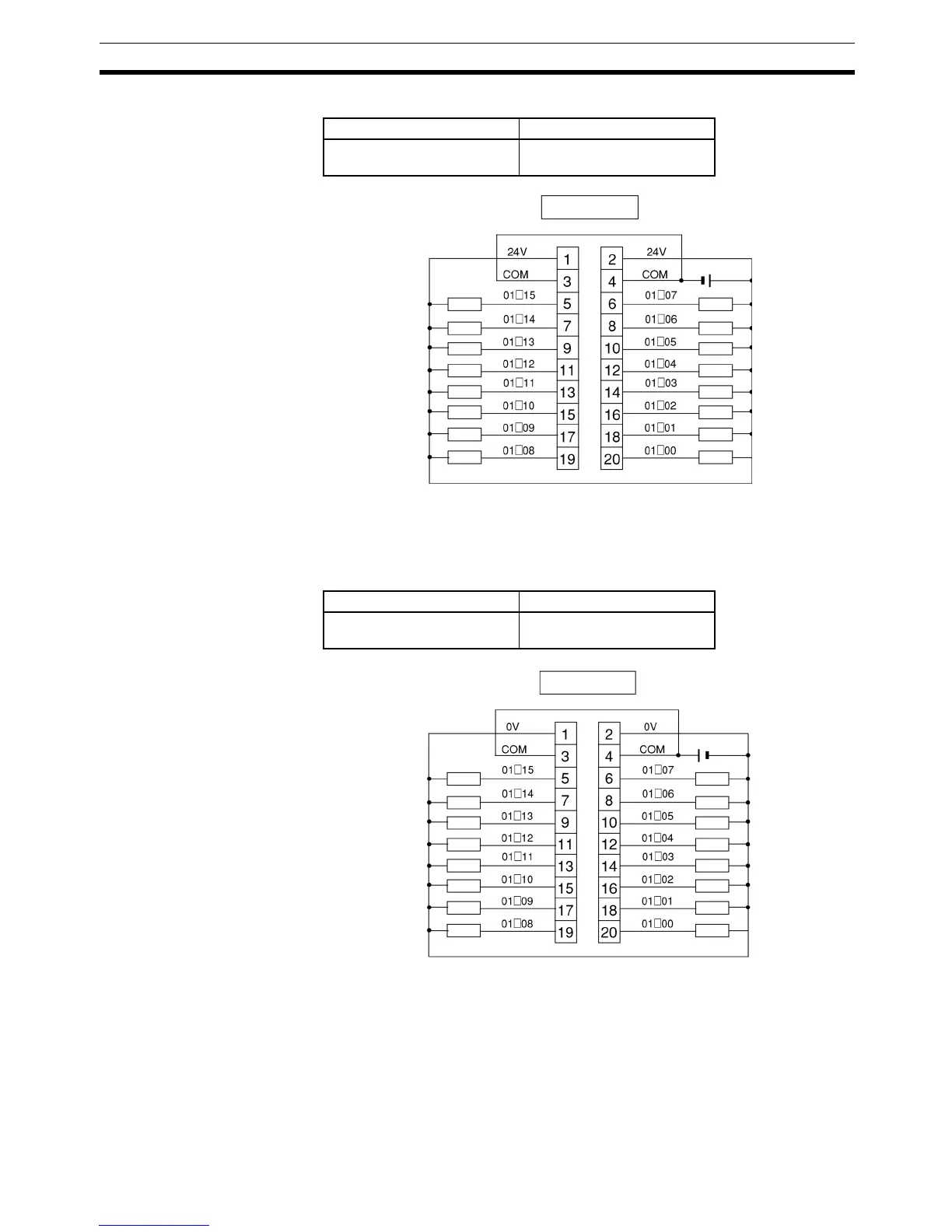

Expansion I/O Unit with 32 I/O Points Sinking Outputs: CPM2C-32EDTM
Note Wire COM terminals (3 and 4) and 24-V terminals (1 and 2) even though they
are connected internally.
Expansion I/O Unit with 32 I/O Points Sourcing Outputs:
CPM2C-32EDT1M
Note Wire COM terminals (3 and 4) and 0-V terminals (1 and 2) even though they
are connected internally.
Output capacity Max. common capacity
00 to 07: 300 mA (24 VDC)
08 to 15: 100 mA (24 VDC)
3.2 A/common
24 VDC
Outputs: IR word n
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Output capacity Max. common capacity
00 to 07: 300 mA (24 VDC)
08 to 15: 100 mA (24 VDC)
3.2 A/common
24 VDC
Outputs: IR word n
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
